Mounting

Figure 3

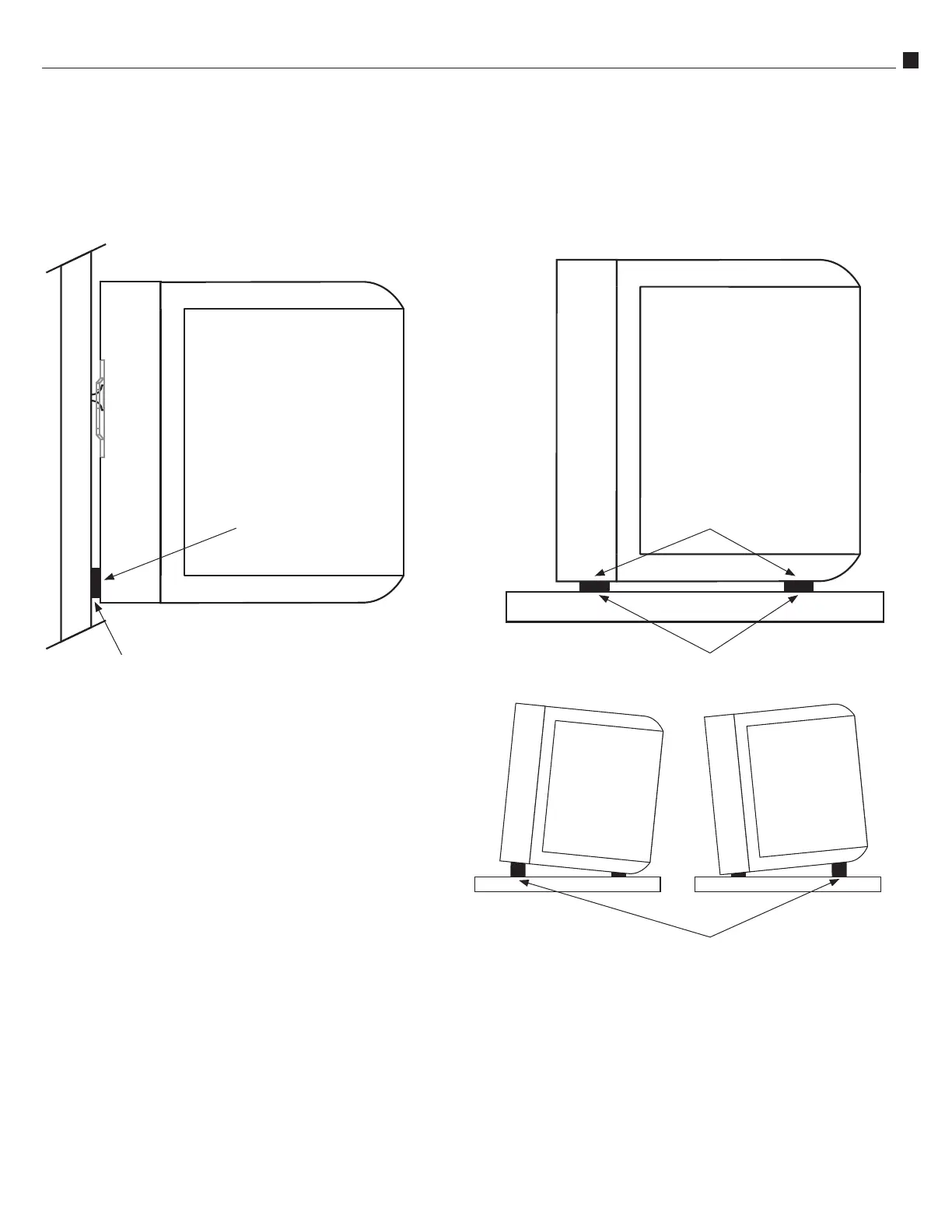

Small round rubber spacer (4 per package) placement for wall mount

and table mount isolation

Figure 4

Large rectangular rubber foot (2 per package) and small round rubber spacer

(2 per package) placement for shelf or set-top placement

NOTE:

Tilting the speaker is primarily for visual aethetics,

as the excellent dispersion of the FS-7.1's drivers generally

yield outstanding sound distribution without such tilting.

Rubber foot

Rubber feet

Use taller feet for up or down tilt

Adhesive side
