Do not install the radiator:
- in a draft that could disturb its regulation (for example under
a Controlled Mechanical Ventilation system, etc ).
- Under a xed power outlet.
- Within volume 1 in bathrooms.
Radiators used in bathrooms must be installed such that switches
and other control devices of the radiator cannot be touched by
anyone in the bath or the shower.

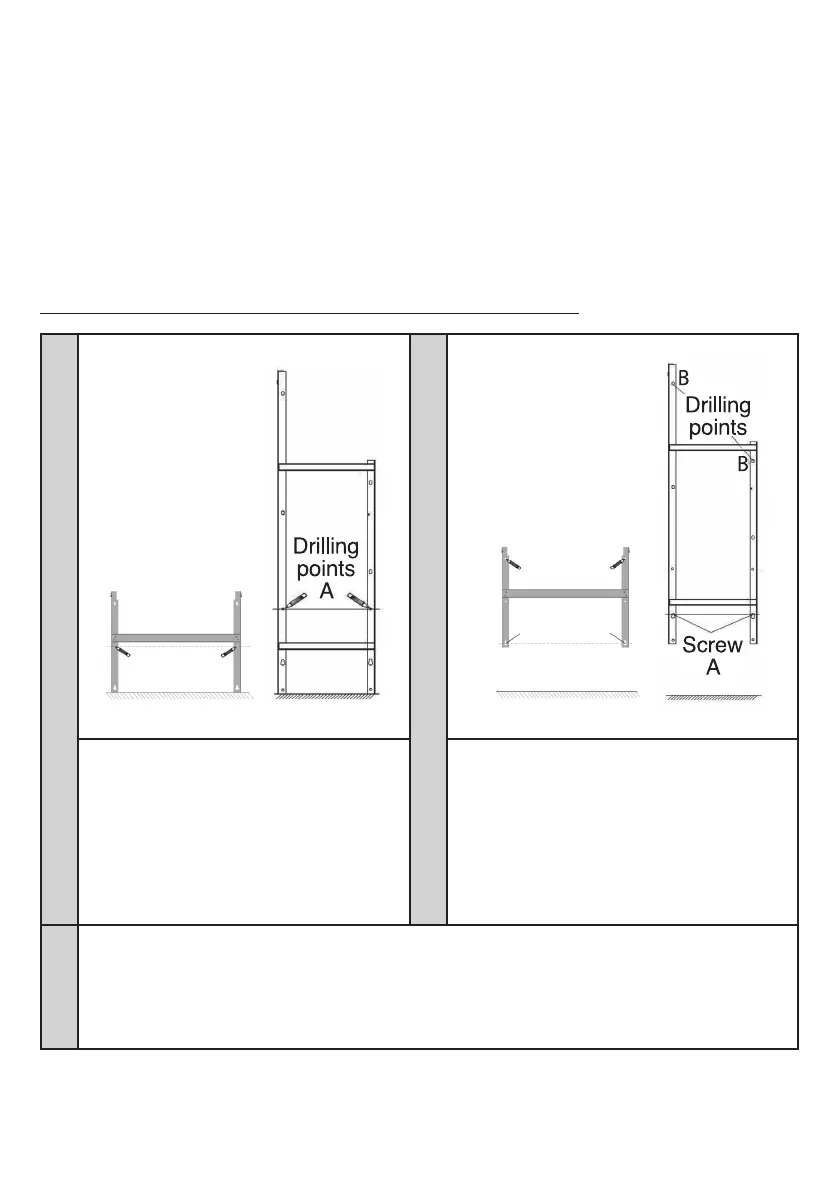

1.2 - Fix the wall-mounting frame to the wall
1
Drilling
points A
2
Drilling
points A
Drilling
points B
Place the wall-mounting
frame on the oor. Mark
drilling points A. These
points give the position of
the lower attachments.
Lift the wall-mounting frame
making the previously marked
points coincide with drilling
holes A. Mark the 2 drilling
points B using a pen. You will
then have marked the 4 drilling
points.
3
Drill the 4 holes and insert the appropriate inserts for your wall
(for example plasterboard, concrete).
Put the wall-mounting frame into place and screw it into
position.
