Atlas Copco DD User Manual

2904 0108 04 79

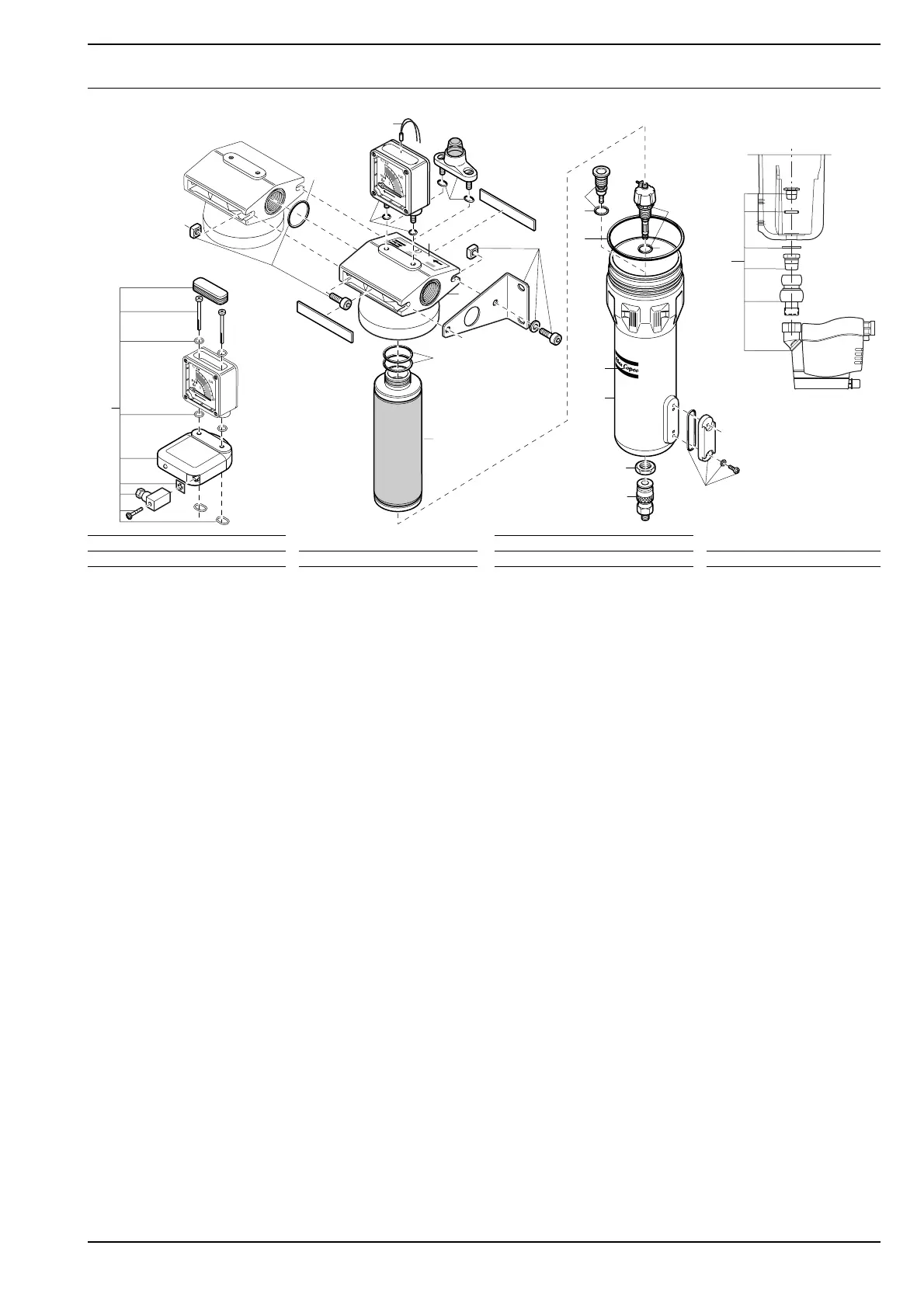

DD - DDP - PD - QD : 280
Notes
1. Included in the element kit.
2. Optional.
3. Not on the QD filters.
4. Only on DD and PD filters.
5. Only on DDp and QD filters.
6. 230V 50/60Hz not on DDp and QD filters
7. 115V 50/60Hz not on DDp and QD filters
8. 24V 50/60Hz not on DDp and QD filters
8
20
10
22
21
9
25
6
4
2
12
7
26
1
5
3
24
6
23
11
28
27
DD - DDp - PD - QD : 280 DD - DDp - PD - QD : 280
Ref. Part Number Note Qty Designation Ref. Part Number Note Qty Designation
– 8102 2603 23 DD filter complete, G 2 1/2” – 8102 2623 86 DD filter complete, G 2”
– 8102 2607 60 DD filter complete, NPT 2 1/2” – 8102 2623 94 DD filter complete, NPT 2”
– 8102 2603 49 DDp filter complete, G 2 1/2” – 8102 2622 87 DDp filter complete, G 2”
– 8102 2607 86 DDp filter complete, NPT 2 1/2” – 8102 2622 95 DDp filter complete, NPT 2”
– 8102 2603 31 PD filter complete, G 2 1/2” – 8102 2623 29 PD filter complete, G 2”
– 8102 2607 78 PD filter complete, NPT 2 1/2” – 8102 2623 37 PD filter complete, NPT 2”
– 8102 2603 56 QD filter complete, G 2 1/2” – 8102 2623 60 QD filter complete, G 2”
– 8102 2607 94 QD filter complete, NPT 2 1/2” – 8102 2623 78 QD filter complete, NPT 2”
– 2901 0544 00 DD and DDp element kit – 2901 0544 00 DD and DDp element kit
– 2901 0545 00 PD element kit – 2901 0545 00 PD element kit
– 2901 0546 00 QD element kit – 2901 0546 00 QD element kit
1– 1Head 1– 1Head
2– 1Bowl 2– 1Bowl
3–
1
1 Filter element 3 –
1
1 Filter element
4 0663 2109 62
1
1 O-ring, 129,7x3,5 4 0663 2109 62
1
1 O-ring, 129,7x3,5
5 0663 2109 66
1
2 O-ring for filter, 61,6x2,6 5 0663 2109 66
1
2 O-ring for filter, 61,6x2,6
6 0663 2111 29
1
1 O-ring, 18x3,5 6 0663 2111 29
1
1 O-ring, 18x3,5
7 1617 7046 00 1 Nut, G3/8” 7 1617 7046 00 1 Nut, G3/8”
8 – Differential press. indicator 8 – Differential press. indicator
9 1617 7269 00
2/3
1 Differential press. gauge 9 1617 7269 00
2/3
1 Differential press. gauge
10 – 1 Identification label 10 – 1 Identification label
11a 8055 2164 47
2
1 Potential free contact, normally open 11a 8055 2164 47
2
1 Potential free contact, norm. open
11b 8055 2164 88
2
1 Potential free contact, normally closed 11b 8055 2164 88
2
1 Potential free contact, norm. closed
12 0690 1100 01 2 Atlas Copco decal 12 0690 1100 01 2 Atlas Copco decal
20 8092 2429 92
2
Wall mounting kit 20 8092 2429 92
2
Wall mounting kit
21 8092 2430 40
2
Serial connection kit 21 8092 2430 40
2
Serial connection kit
22 • 0663 2104 98 1 O-ring, 80x3 - 94,5x3 22 • 0663 2104 98 1 O-ring, 80x3 - 94,5x3
23 2901 0562 00 Sight glass kit 23 2901 0562 00 Sight glass kit
24 2901 0563 00
4
Automatic drain valve kit 24 2901 0563 00
4
Automatic drain valve kit
25 2901 0611 00
5
Manual drain valve kit 25 2901 0611 00
5
Manual drain valve kit
26 1617 7082 01
2
Male coupling, G 1/8” 26 1617 7082 01
2
Male coupling, G 1/8”
26 1617 7082 02
2
Female coupling, G 1/8” 26 1617 7082 02
2
Female coupling, G 1/8”
26 1617 7082 03
2
Hose connection 26 1617 7082 03
2
Hose connection
27 8055 2600 64
2/3
1 Dual pressure transmitter 27 8055 2600 64
2/3
1 Dual pressure transmitter
28 8055 2600 31
2/6
1 EWD Connection 28 8055 2600 31
2/6
1 EWD Connection
28 8055 2600 49
2/7
1 EWD Connection 28 8055 2600 49
2/7
1 EWD Connection
28 8055 2600 56
2/8
1 EWD Connection 28 8055 2600 56
2/8
1 EWD Connection
A080-070401-010
Vendor Manual Atlas Copco A090-070423-004 PD & DD Filters Instruction Manual
Q-Pulse Id VM260
Active 09/09/2013
Page 81 of 90
