Atlas Copco DD User Manual

78 2904 0108 04
DD - DDP - PD - QD : 120 - 150 - 175
Notes
1. Included in the element kit.
2. Optional.
3. Not on the QD filters.
4. Only on DD and PD filters.
5. Only on DDp and QD filters.
6. 230V 50/60Hz not on DDp and QD filters.
7. 115V 50/60Hz not on DDp and QD filters.
8. 24V 50/60Hz not on DDp and QD filters.

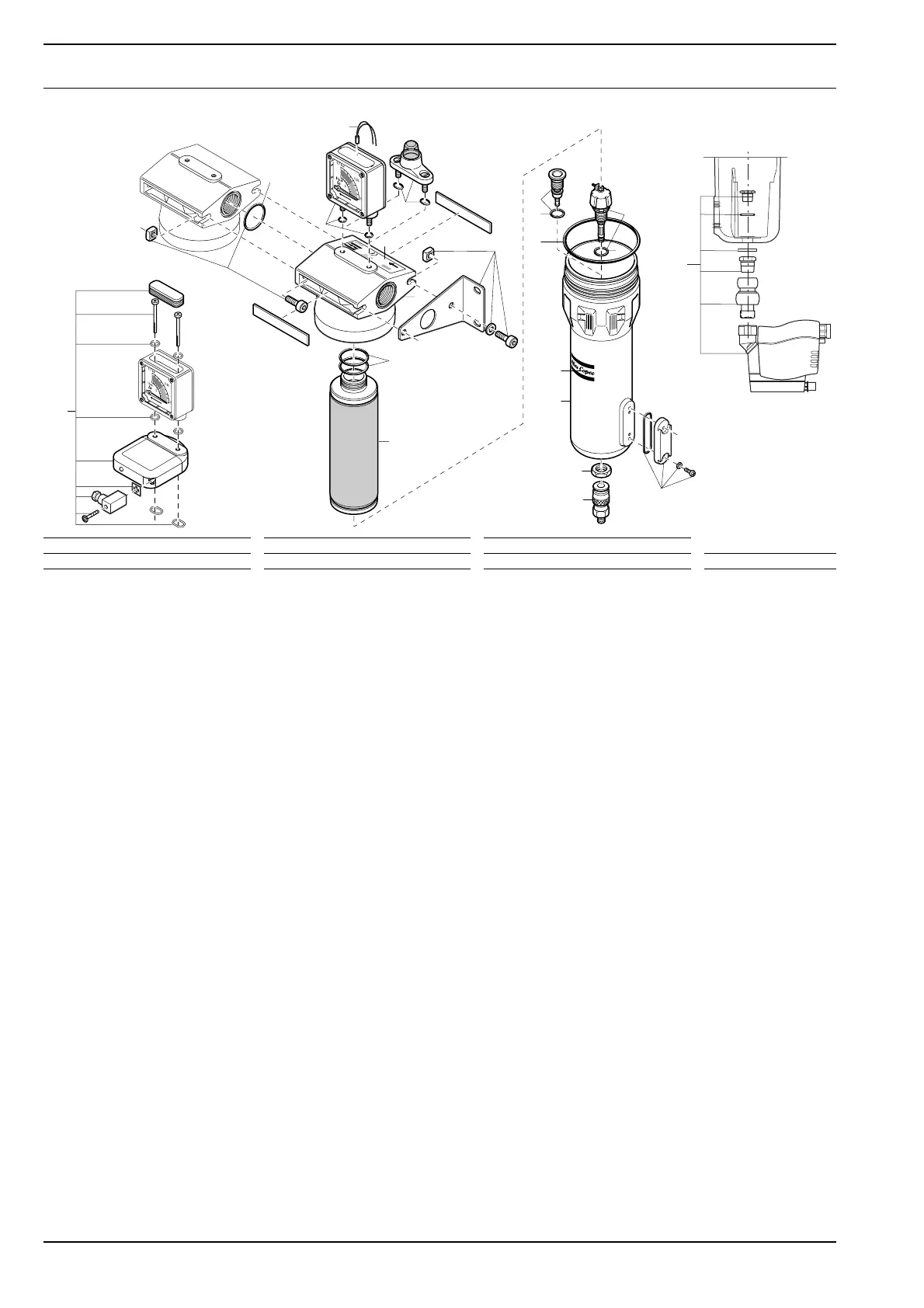

8
20
10
22
21
9
25
6
4
2
12
7
26
1
5
3
24
6
23
11
28
27
DD - DDp - PD - QD : 120 DD - DDp - PD - QD : 150 DD - DDp - PD - QD : 175
Ref. Part Number Note Qty Ref. Part Number Note Qty Ref. Part Number Note Qty Designation
– 8102 2602 08 – 8102 2602 40 – 8102 2602 81 DD filter complete, G
– 8102 2606 46 – 8102 2606 87 – 8102 2607 29 DD filter complete, NPT
– 8102 2602 24 – 8102 2602 65 – 8102 2603 07 DDp filter complete, G
– 8102 2606 61 – 8102 2607 03 – 8102 2607 45 DDp filter complete, NPT
– 8102 2602 16 – 8102 2602 57 – 8102 2602 99 PD filter complete, G
– 8102 2606 53 – 8102 2606 95 – 8102 2607 37 PD filter complete, NPT
– 8102 2602 32 – 8102 2602 73 – 8102 2603 15 QD filter complete, G
– 8102 2606 79 – 8102 2607 11 – 8102 2607 52 QD filter complete, NPT
– 2901 0535 00 – 2901 0538 00 – 2901 0541 00 DD and DDp element kit
– 2901 0536 00 – 2901 0539 00 – 2901 0542 00 PD element kit
– 2901 0537 00 – 2901 0540 00 – 2901 0543 00 QD element kit
1– 11– 11– 1Head
2– 12– 12– 1Bowl
3–
1
13 –
1
13 –
1
1 Filter element
4 0663 2109 61
1
1 4 0663 2109 61
1
1 4 0663 2109 61
1
1 O-ring, 108x3
5 0663 2101 01
1
2 5 0663 2101 01
1
2 5 0663 2101 01
1
2 O-ring for filter, 40x2
6 0663 2111 29
1
1 6 0663 2111 29
1
1 6 0663 2111 29
1
1 O-ring, 18x3,5
7 1617 7046 00 1 7 1617 7046 00 1 7 1617 7046 00 1 Nut, G3/8”
8 – 8 – 8 – Differential press. indicator
9 1617 7269 00
2/3
1 9 1617 7269 00
2/3
1 9 1617 7269 00
2/3
1 Differential press. gauge
10 – 1 10 – 1 10 – 1 Identification label
11a 8055 2164 47
2
1 11a 8055 2164 47
2
1 11a 8055 2164 47
2
1 Potential free contact
Normally open
11b 8055 2164 88
2
1 11b 8055 2164 88
2
1 11b 8055 2164 88
2
1 Potential free contact
Normally open
12 0690 1101 23 2 12 0690 1101 23 2 12 0690 1101 23 2 Atlas Copco decal
20 8092 2429 84
2
20 8092 2429 84
2
20 8092 2429 84
2
Wall mounting kit
21 8092 2430 32
2
21 8092 2430 32
2
21 8092 2430 32
2
Serial connection kit
22 • 0663 2104 75 1 22 • 0663 2104 75 1 22 • 0663 2104 75 1 O-ring, 52,96x2,5
23 2901 0562 00 23 2901 0562 00 23 2901 0562 00 Sight glass kit
24 2901 0563 00
4
24 2901 0563 00
4
24 2901 0563 00
4
Automatic drain valve kit
25 2901 0611 00
5
25 2901 0611 00
5
25 2901 0611 00
5
Manual drain valve kit
26 1617 7082 01
2
26 1617 7082 01
2
26 1617 7082 01
2
Male coupling, G 1/8”
26 1617 7082 02
2
26 1617 7082 02
2
26 1617 7082 02
2
Female coupling, G 1/8”
26 1617 7082 03
2
26 1617 7082 03
2
26 1617 7082 03
2
Hose connection
27 8055 2600 64
2/3
1 27 8055 2600 64
2/3
1 27 8055 2600 64
2/3
1 Dual pressure transmitter
28 8055 2600 31
2/6
1 28 8055 2600 31
2/6
1 28 8055 2600 31
2/6
1 EWD Connection
28 8055 2600 49
2/7
1 28 8055 2600 49
2/7
1 28 8055 2600 49
2/7
1 EWD Connection
28 8055 2600 56
2/8
1 28 8055 2600 56
2/8
1 28 8055 2600 56
2/8
1 EWD Connection
