Spare screw
Ordering No.Screw qualityScrew size
Test joint
Ordering No.
Torque range
(Nm)
0211 1965 4512.9M2x164145 0958 710.04 - 0.1 *
0211 1965 4512.9M2x164145 0958 730.08 - 0.2
0211 1110 0012.9M3x204145 0958 740.2 - 0.6

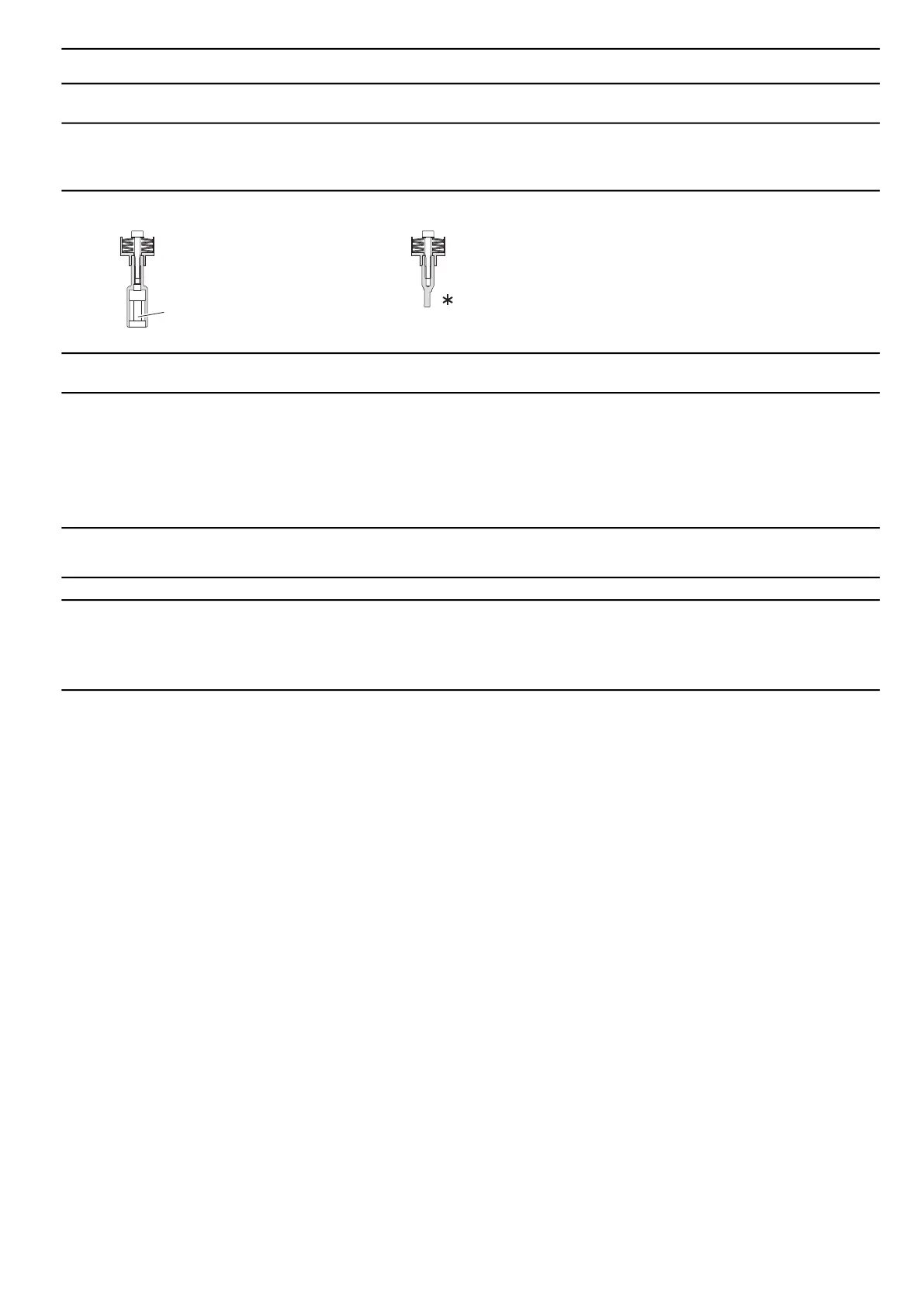

Test joints - Soft joints
s009520
1/4" female hex connection
Spare screw
Ordering No.Screw qualityScrew size
Test joint
Ordering No.
Torque range
(Nm)
buy locally12.9M2x164145 0958 760.04 - 0.1
buy locally12.9M3x204145 0958 770.08 - 0.2
buy locally12.9M3x204145 0958 780.2 - 0.6
0211 1177 0012.9M4x304145 0959 800.6 - 2.0
0211 1251 0012.9M6x354145 0959 811.5 - 4.0
0211 1251 0012.9M6x354145 0959 823.0 - 7.0
In-line torque transducers - Torque/angle models
Ordering Noft lbRated capacity NmDrive Square inchDrive Hex inchModel
8092 1130 960.81½IRTT 1A-I06
8092 1182 011.52½IRTT 2A-I06
8092 1182 0645¼IRTT 5A-I06
8092 1182 0845¼IRTT 5A-06
Operating instructions
Fuses
The EBL Drive and EBL RE-Drive have a built-in PTC protection. To reset disconnect the mains plug for 10
seconds.
Attaching the bit
T Make sure you disconnect the tool from the power source before replacing the tool bit, especially
when using a push start type tool. Replacing the bit while the tool is connected to a power source
may cause injury when the bit begins to rotate.
General
The screwdriver is designed to work with the EBL drive or EBL RE-Drive as power unit.
Start options
The EBL screwdriver is equipped with options for lever start and push start. With lever start the tool starts by
pulling the black lever on the machine. With push start the tool starts by pushing the bit towards the screw and
work piece. Start mode is easily recongured by changing the switch position under the lever of the tool.
7
© Atlas Copco Industrial Technique AB - 9836 8184 00
OperationENEBL12
