Atlas Copco EBL12 User Manual

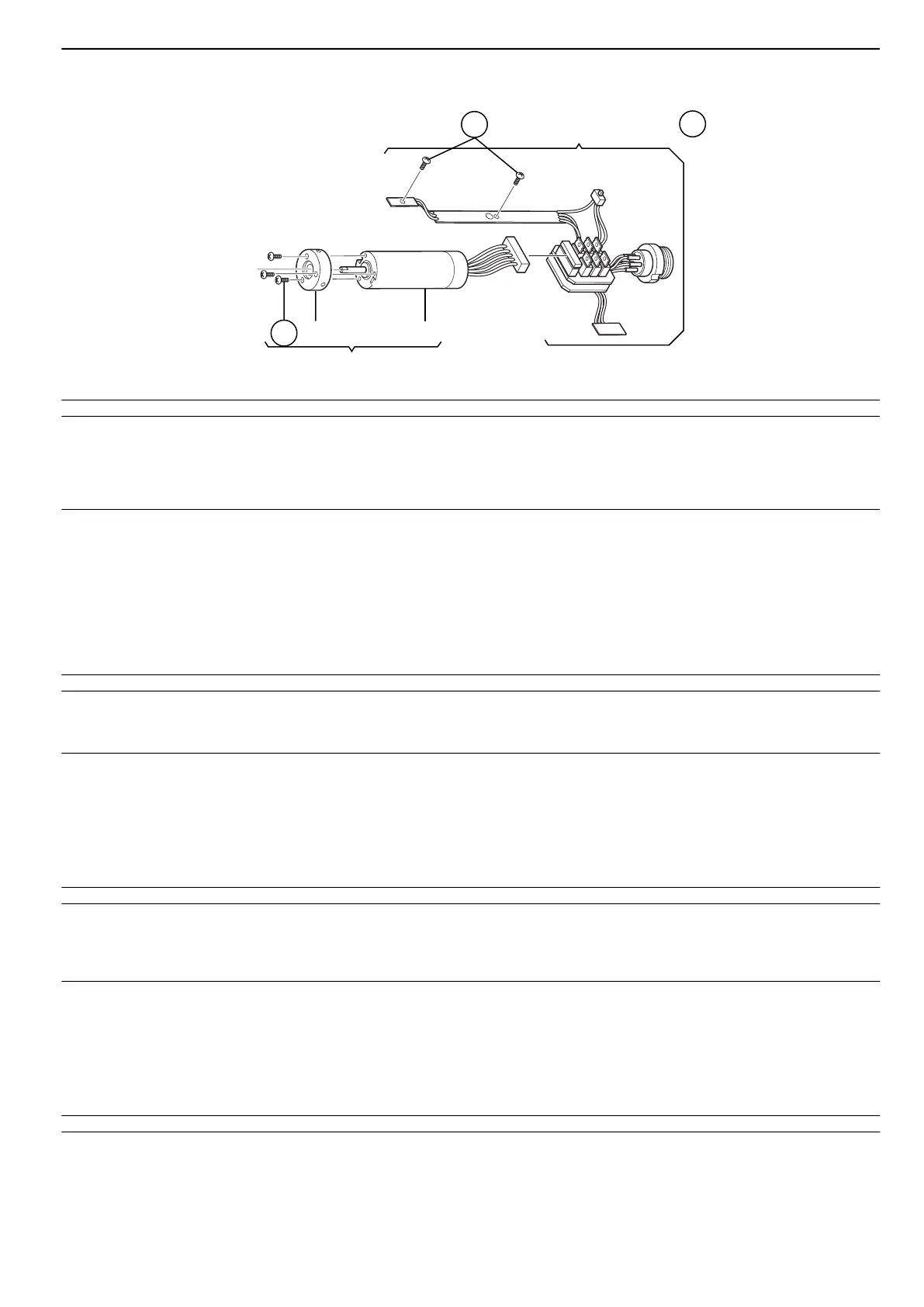

Motor
1
2 3
4
5
6
= Included in Service Kit
2011390
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
Motor, compl.14216 0222 901(2-4)
2x5 / Service kit 4216 0232 90Screw3-2
Front l1-3
Motor1-4
2x4. Connect to Gear case / Service kit 4216 0232 90Screw2-5
WEEE, see General information in Safety and operating instructionsCircuit Assy14216 0112 006
Service Kits
Service kit — Front part / Gear
Ordering No. 4216 0230 90
Remark / Included in Service kitDescriptionQtyOrdering No.
Ø 2 mmBall10517 1153 00
Ø 2 mmBall30517 1153 00
Ø 5 mmBall20517 1157 00
4x5.5Roller2-
Service kits are designed for a variety of products. This Service kit may contain more parts than listed in the
table and parts might remain unused.
Service kit — Front part / Gear / Handle
Ordering No. 4216 0234 90
Remark / Included in Service kitDescriptionQtyOrdering No.
2x10.6Pin2-
2.0x10.6Pin1-
5x11.7Spacert2-
2x13.8Pin1-
2x20.8Pin1-
Service kits are designed for a variety of products. This Service kit may contain more parts than listed in the
table and parts might remain unused.
Service kit — Front part / Gear / Handle / Motor
Ordering No. 4216 0232 90
Remark / Included in Service kitDescriptionQtyOrdering No.
2.6x5Screw3-
2.6x3Screw1-
2.6x5Screw3-
2.6x6Screw2-
3.5x12Screw1-
73
© Atlas Copco Industrial Technique AB - 9836 8184 00
Spare part listENEBL12
