Instruction book
40 6996 0227 40

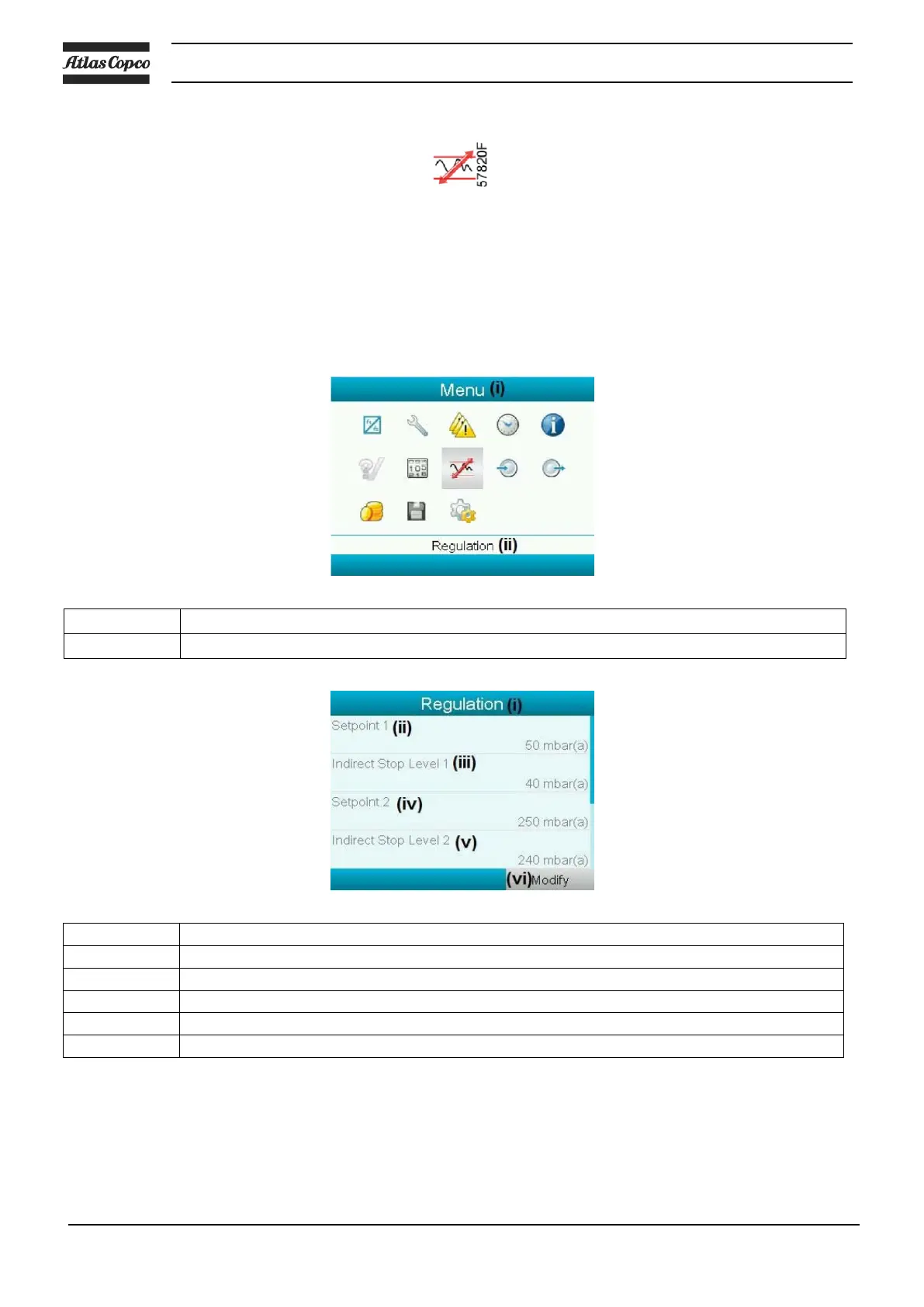

Menu icon, setpoint
Function
On vacuum pumps with a frequency converter driven main motor, it is possible to program two different
setpoints. This menu is also used to select the active setpoint.
Procedure
Starting from the Main screen,
 Highlight the action key Menu using the Scroll keys and press the Enter key. Following screen
appears:
Text on figures
(i)
Menu
(ii)
Regulation
 Activate the menu by pressing the enter key. A screen similar to the one below appears:
Text on figures
(i)
Regulation
(ii)
setpoint 1
(iii)
Indirect stop level 1
(iv)
setpoint
(v)
Indirect stop level 2
(vi)
Modify
 The screen shows the actual settings.
To modify the settings, move the cursor to the action button Modify and press the Enter key. Following
screen appears:
