Instruction book
6996 0224 30
41
GVS 300A Motor coupling half positio
n

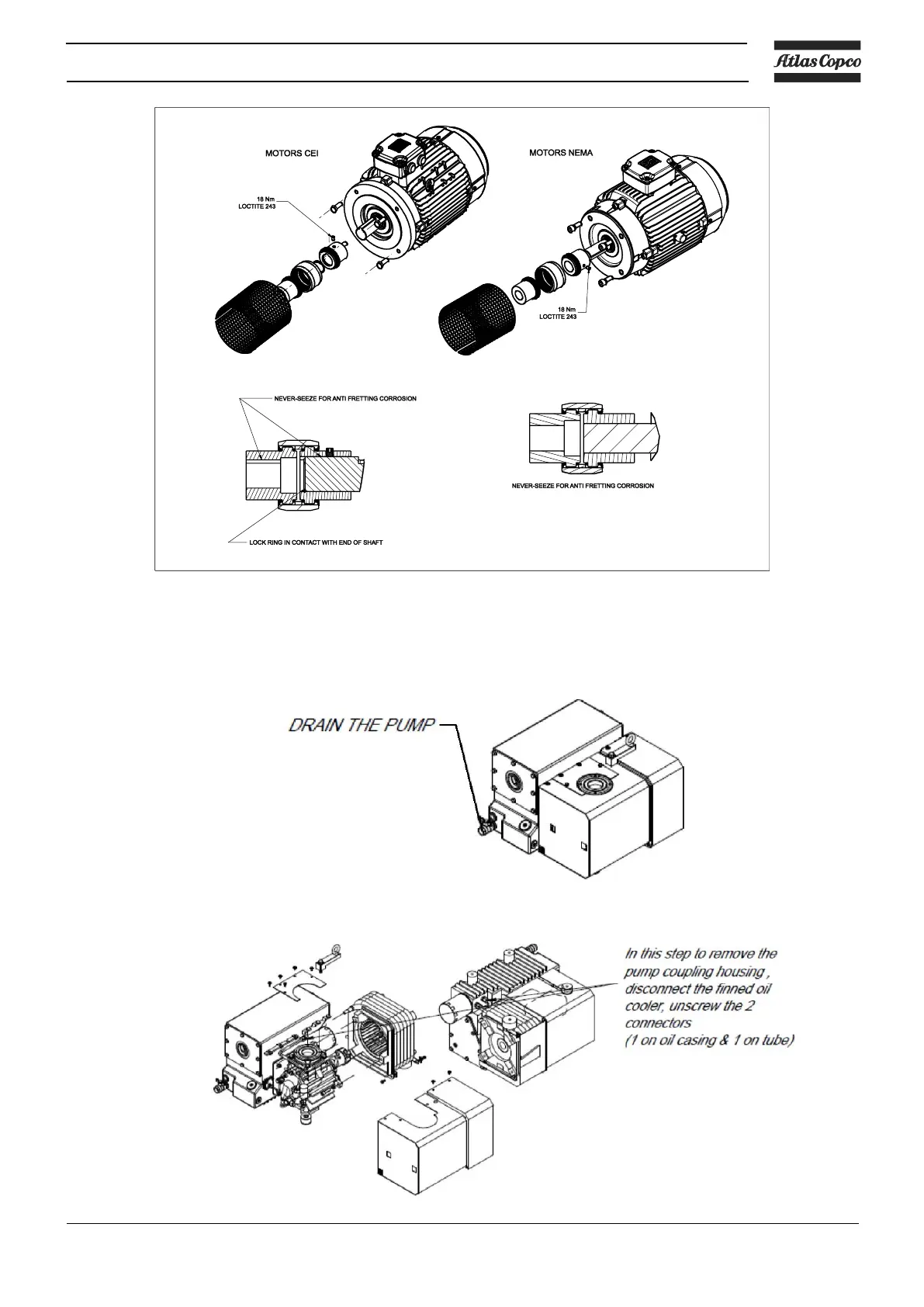

Motor installation instructions for
GVS200A
1.
Place a suitable container underne
ath the pump to catch the oil spillage. R
emove the drain plug.
Drain the pump.
2.
Remove
the
pump
coupling
housing,
disconnect
the
finned
oil
cooler
and
unscrew
the
two
connectors
(1
on oil casing and 1 on tube) as explai
ned in following steps:
40
42
Table of Contents
Table of Contents
5
Safety Precautions
7
Safety Icons
7
General Precautions
7
Safety Precautions During Installation
7
Precautions During Installation
8
Safety Precautions During Operation
9
Precautions During Operation
9
Safety Precautions During Maintenance or Repair
10
Precautions During Maintenance or Repair
10
General Description
12
What Is Vacuum and How Is Flow Rate Understood
12
What Is Vacuum and How to Denote
12
Flow Rate Definitions
13
Displacement/Volumetric Flow Rate
13
Standard Flow Rate
13
Air Flow
15
Gvs 16 – 25A
15
Gvs 40-300A
15
Flow Diagram
16
Flow Diagram, GVS 16A and GVS 25A
16
Flow Diagram, GVS 40A and GVS 60A
17
Flow Diagram, GVS 100A and GVS 300A
18
Flow Diagram, GVS 200A
19
Flow Diagram, GVS 470A and GVS 630A
20
Oil Flow
21
Installation
22
Dimension Drawings
22
Dimension Drawing GVS 40A
23
Dimension Drawing GVS 60A
24
Dimension Drawing GVS 100A
25
Dimension Drawing GVS 200A
26
Dimension Drawing GVS 300A
27
Dimension Drawing GVS 470A
28
Dimension Drawing GVS 630A
29
Installation Proposal
30
Installation Proposal GVS 16A and 25A
30
Installation Proposal GVS 40A
31
Installation Proposal GVS 60A
32
Installation Proposal GVS 100A
33
Installation Proposal GVS 200A
34
Installation Proposal GVS 300A
35
Installation Proposal GVS 470A
36
Installation Proposal GVS 630A
37
Installation Guidelines
38
Motor Installation (if Applicable)
40
Motor Installation Instructions
40
GVS 100A Motor Coupling Half Position
40
Motor Installation Instructions for GVS200A
41
GVS 300A Motor Coupling Half Position
41
Electrical Connections
44
Pictographs
45
Operating Instructions
46
Initial Start-Up
46
Safety
46
Initial Start-Up Instructions
47
Starting
48
During Operation
48
Stopping
48
Taking out of Operation
48
Maintenance
49
Preventive Maintenance Schedule
49
Service Kits
49
Service Contracts
49
Oil Specifications
50
Storage after Installation
50
Recommended Viscosity
50
Disposal of Used Material
51
Adjustments and Servicing Procedures
52
Drive Motor
52
Exhaust Filter Replacement
52
GVS 40A, GVS 60A and GVS 100A
52
Oil and Oil Filter Change
54
Oil Change Procedure
54
Oil Type Change
54
Cleaning Radiator, Motor Fan Guard and Pump
55
Cleaning the Intake Filter (Optional) Element
55
Replacing V - Belts
55
V-Belt Tensioning
57
How to Use the V-Belt Tension Meter
57
Problem Solving
58
Technical Data
59
Reference Conditions and Limitations
59
Pump Data
62
Motor Data
67
