Atlas Copco GX 3 EP User Manual

Air flow, tank-mounted Pack units

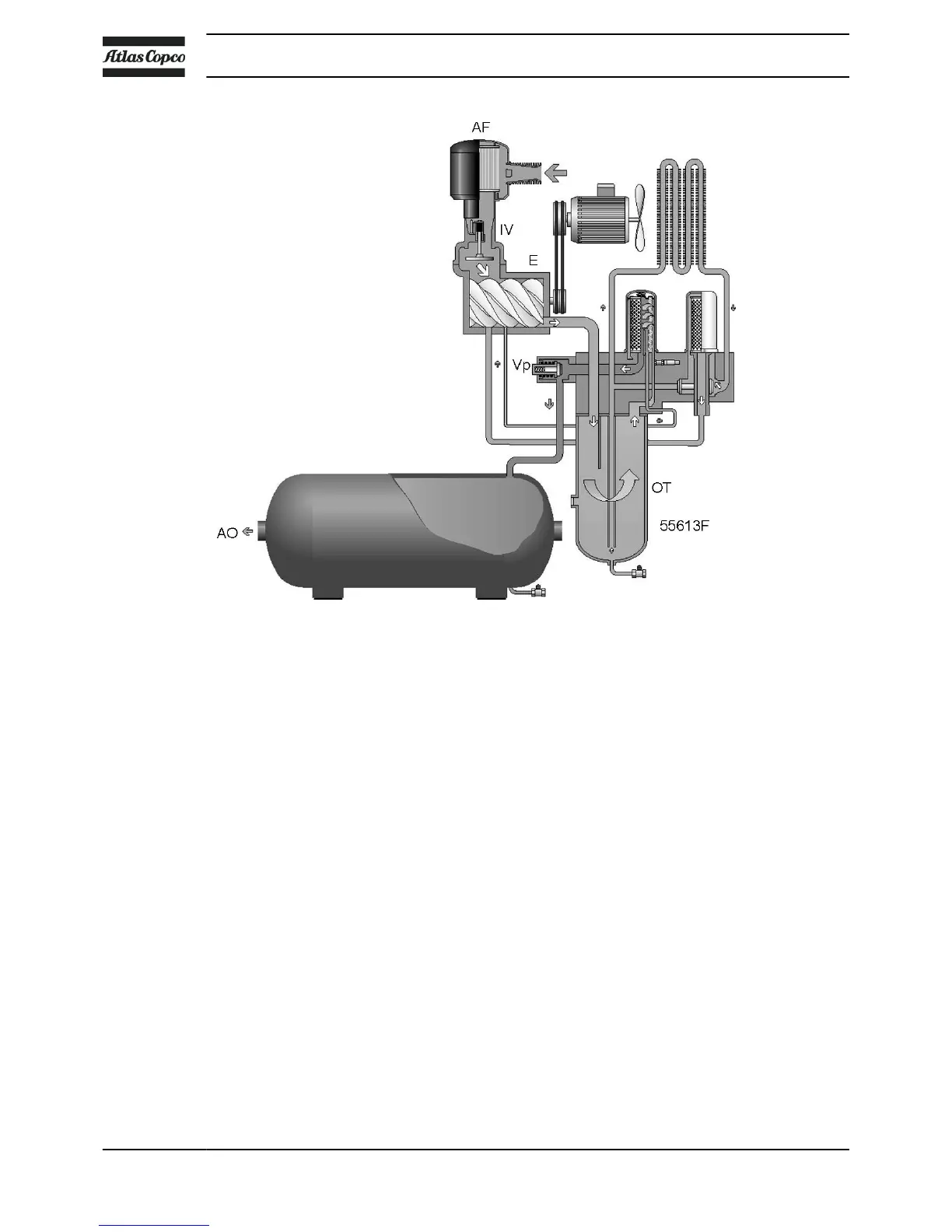

Air drawn in through air filter (AF) and open inlet valve (IV) is compressed in compressor element (E).
Compressed air and oil flow into oil separator/tank (OT) where most of the oil is removed by centrifugal
action. The remaining oil is removed by oil separator (OS). The air flows to the outlet (AO) via minimum
pressure valve (Vp).
Instruction book
12 2920 7105 31

Atlas Copco GX 3 EP Specifications

General

Brand	Atlas Copco
Model	GX 3 EP
Category	Air Compressor
Language	English
