2.9 Air dryer
Air dryer (Full-Feature compressors)

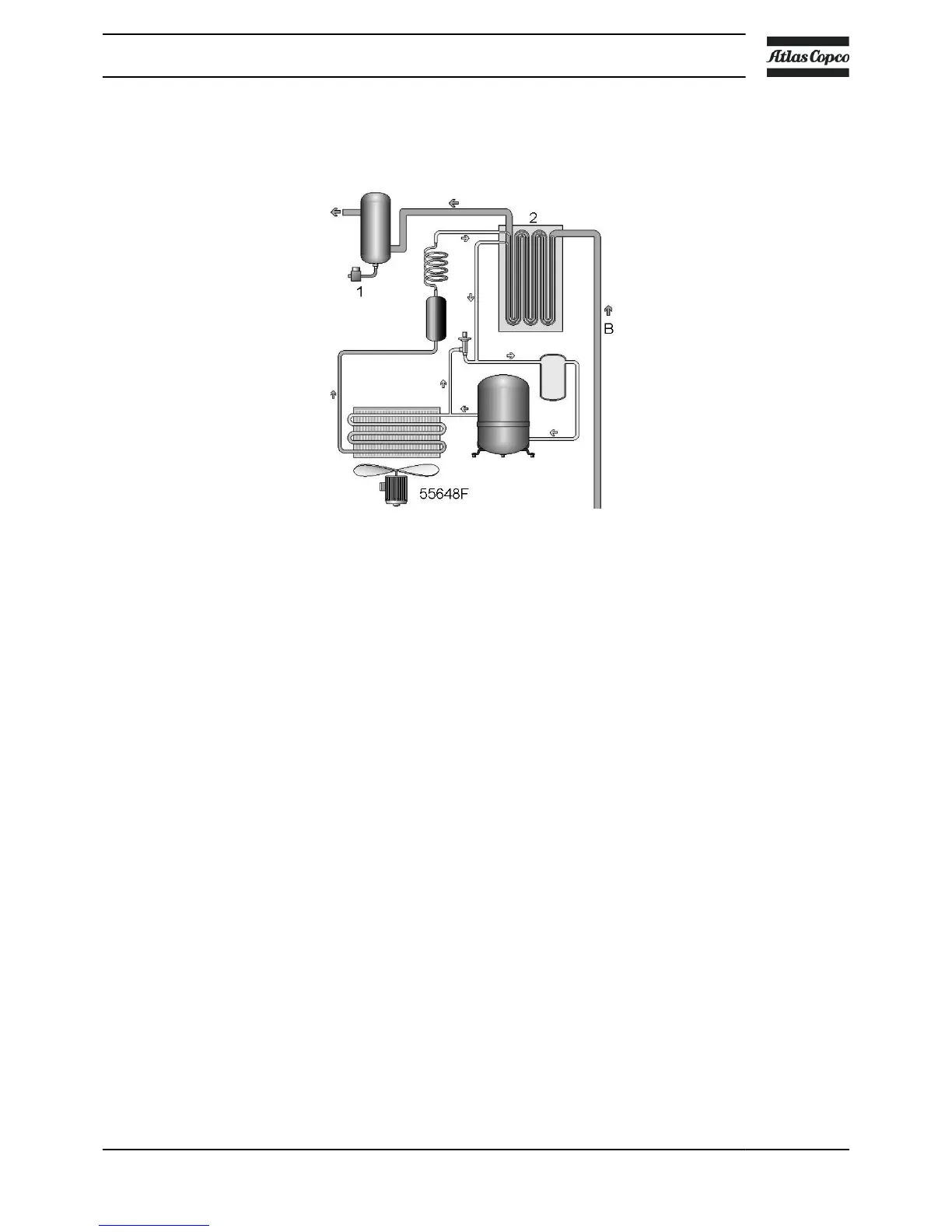

Wet compressed air (B) enters the dryer. The air then flows through a heat exchanger (2) where refrigerant
evaporates, withdrawing heat from the air. The cold air then flows through a condensate trap (1) which
separates condensate from the air. The condensate is automatically drained and this is regulated by a timer.
The dried air is then discharged from the dryer.
