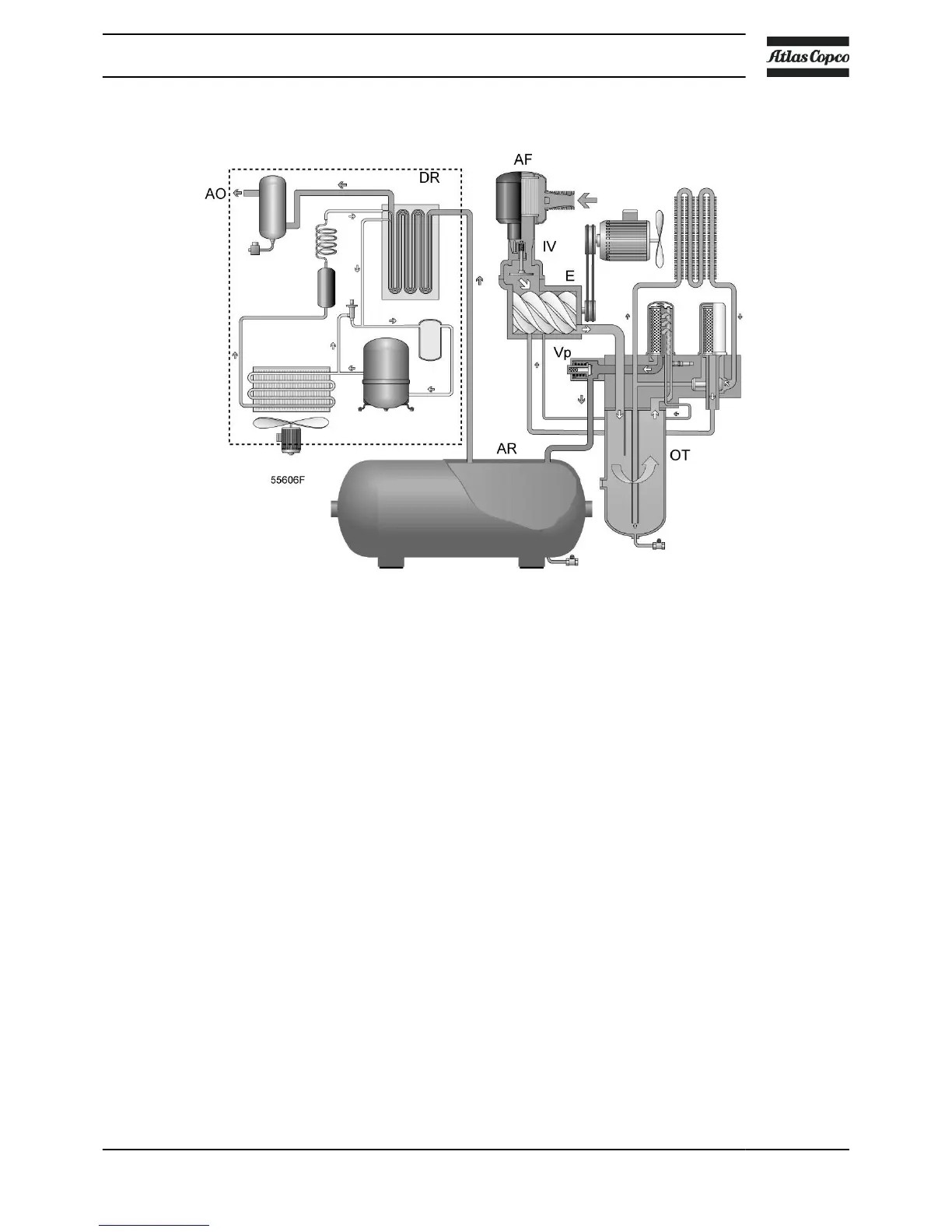

Air flow, GX tank-mounted Full-Feature units
Air drawn in through air filter (AF) and open inlet valve (IV) is compressed in compressor element (E).
Compressed air and oil flow into oil separator/tank (OT) where most of the oil is removed by centrifugal
action. The remaining oil is removed by oil separator (OS). The air is discharged via minimum pressure valve
(Vp), air receiver (AR) and dryer (DR) towards the air outlet (AO).
Instruction book
2920 7105 31 13
