Atlas Copco GX 7 EP

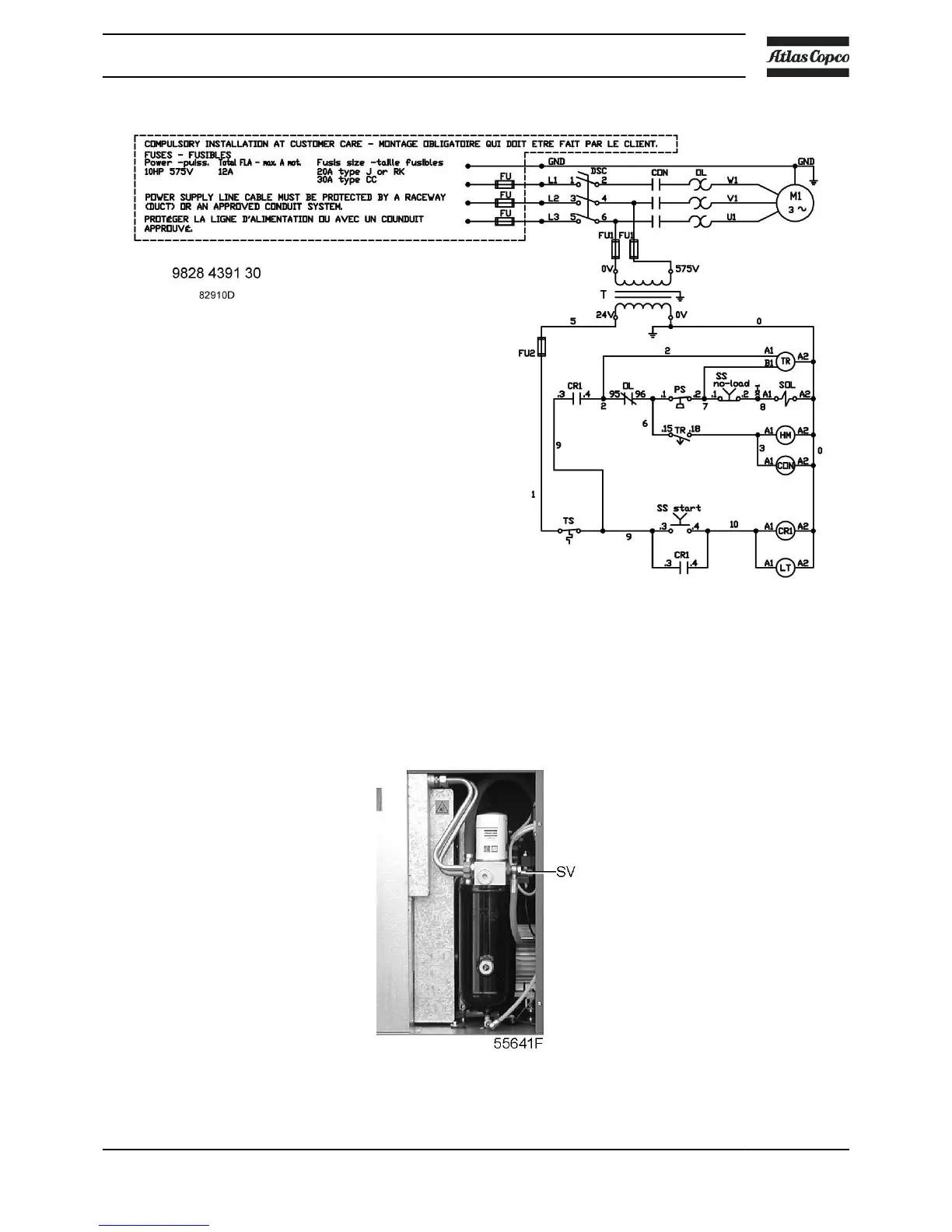

Diagram for 575 V CSA-UL
Fuses and main switch to be installed by the customer. For full details, always consult the complete service
diagram, included in the cubicle of the compressor.
2.8 Protection of the compressor
Safety valve on the compressor
Instruction book
2920 7105 31 27
