Atlas Copco GX 7 EP

Full-Feature units

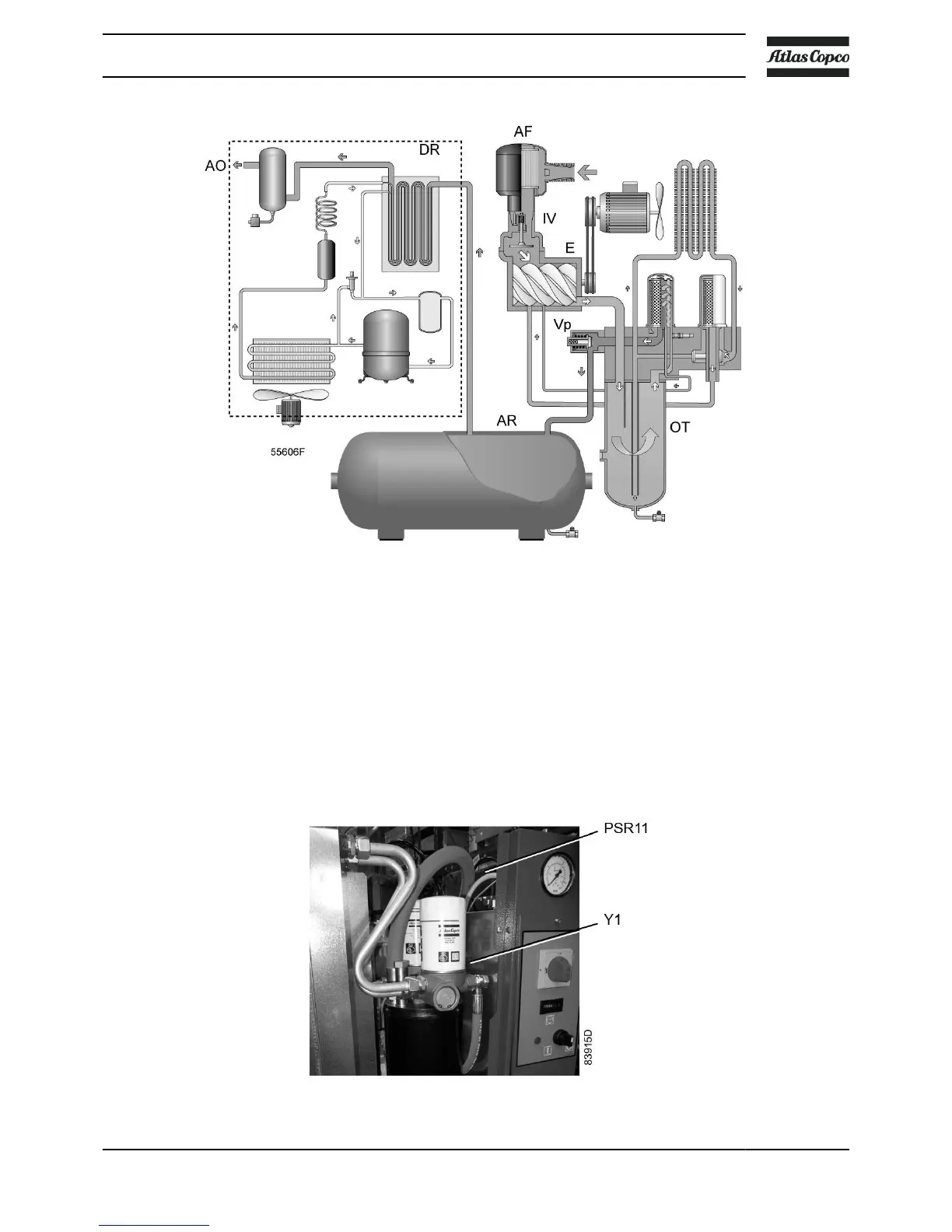

A fan on the drive motor shaft provides air flow to cool the oil and the other components of the compressor.
On tank-mounted compressors, the air receiver is used as air cooler. The condensate is drained manually.
The dryer (DR) of Full-Feature versions has a separate cooling fan and an automatic condensate drain (see
also section Air dryer).
2.5 Regulating system
GX 2 up to GX 5
The main components of the regulating system are:
