Atlas Copco GX 7

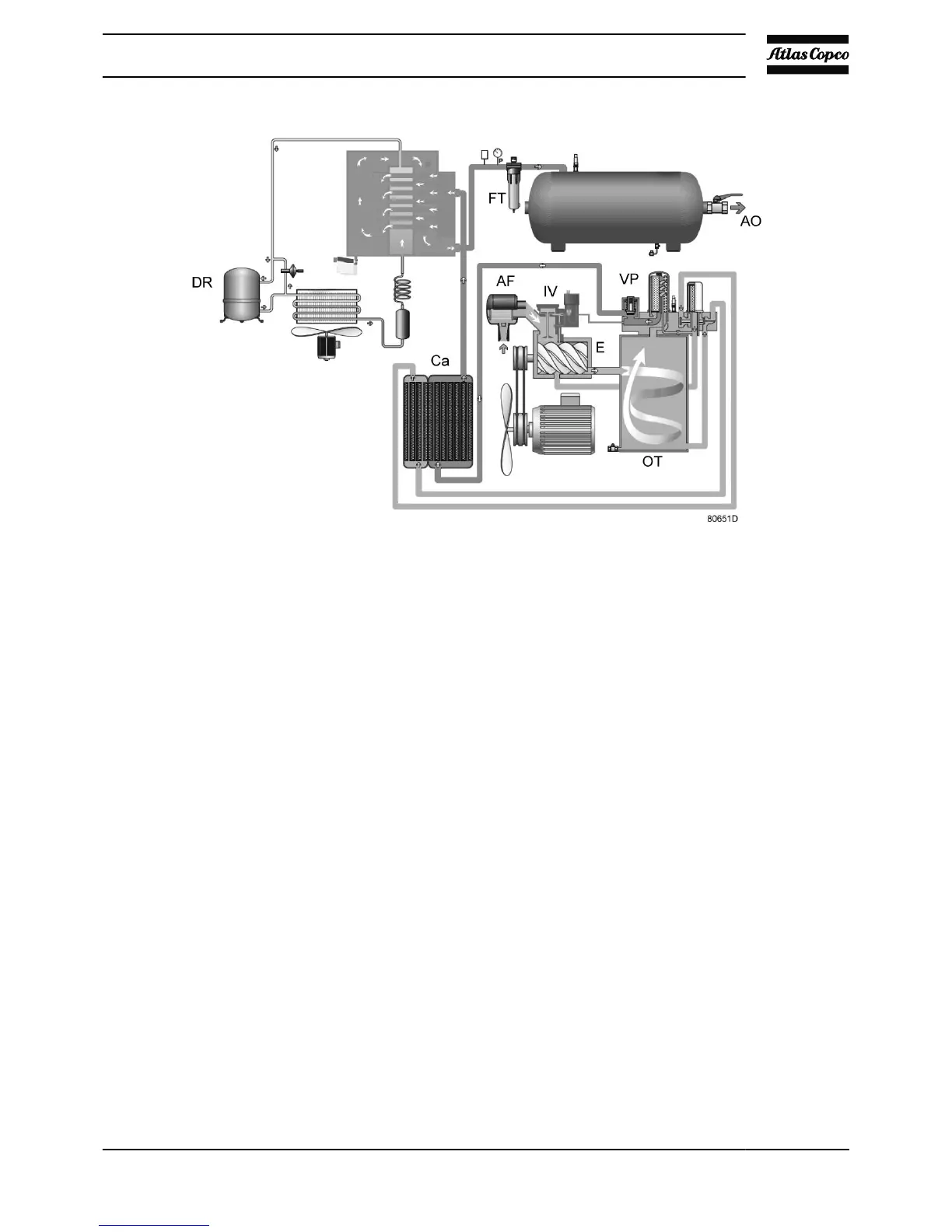

Air flow, GX 7 and GX 11 Full-Feature (tank-mounted)
Air drawn through filter (AF) and open inlet valve (IV) into compressor element (E) is compressed.
Compressed air and oil flow into oil separator/tank (OT). The air is discharged via minimum pressure valve
(Vp), air cooler (Ca) and air dryer (DR) towards the air outlet (AO).
Instruction book
2920 7054 00 13
