Installation proposal for tank mounted compressors with silencing hood

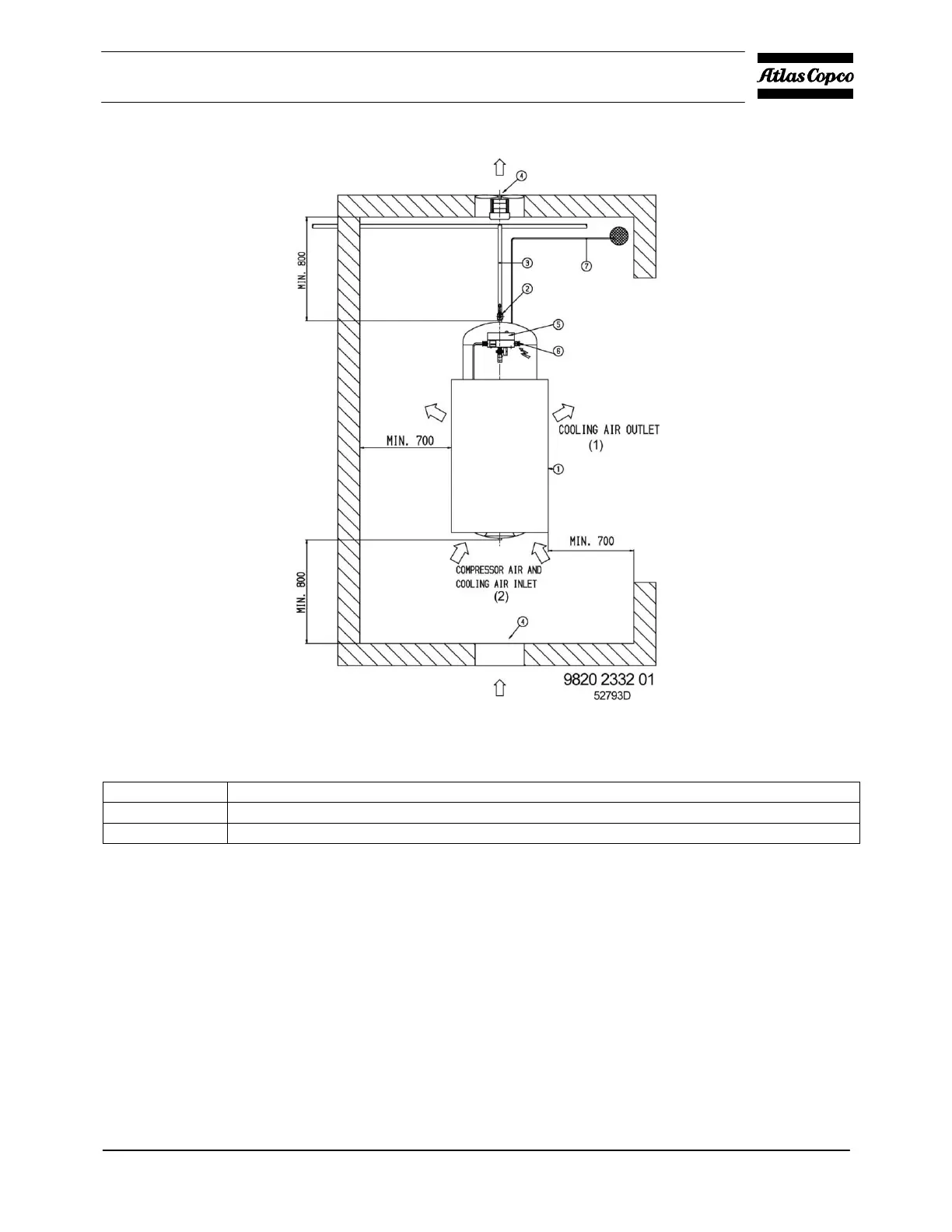

References of figures on installation drawings.
Reference Description
1 Cooling air outlet
2 Compressor air and cooling air inlet
LF
Install the compressor horizontally, in a cool but frost-free and well-ventilated room. LF can operate with any
angular deviation, in any direction. The air should be clean.
A Base mounted unit with hood option must be installed away from walls to allow easy maintenance. Keep the
ventilation openings free.
It is recommended to install an automatic condensate drain (available as an option) on the air receiver to ensure
continuous condensate removal.
LF trolley
The compressors are equipped with a lifting eye or yoke. Keep the compressor in a frost-free and well-ventilated
place.
