Reference Description
P Hourmeter, running hours
X1 Terminal board
S1 On/off switch

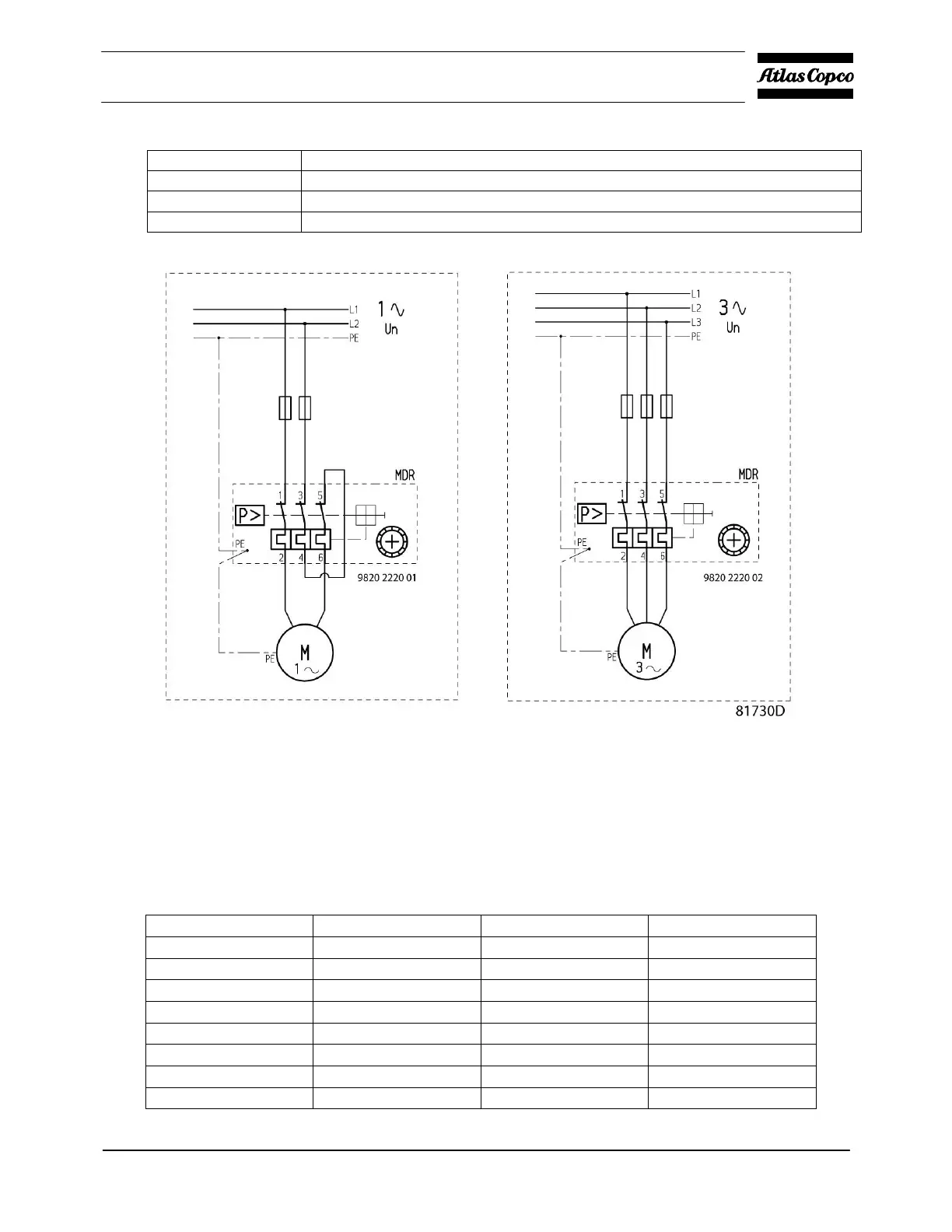

Electrical diagram with direct-on-line starter
3.4 Settings of overload relay and fuses
Overload Relay Settings - compressor fuses with DOL starter
50Hz
Type Voltage (V) Overload relay (A) Fuses (A)
LF2 230 MONO 10 16
LF2 230 7 10
LF2 400 4 6
LF3 230 MONO 14 20
LF3 230 10 16
LF3 400 5.2 10
LF3 575 4 6
