2 General description
2.1 Introduction
Introduction
LFx 0.7 up to LFx 2.0 are single-stage, oilless piston compressors driven by an electric motor. The compressors
are air-cooled.
Power block
The Power block has two variants:
• The Power block for open operation (PWBO) is provided with a fan protection and can be used for open
operation.
• The Power block for enclosed operation (PWBE) is not provided with a fan protection and has to be
installed inside an enclosure.

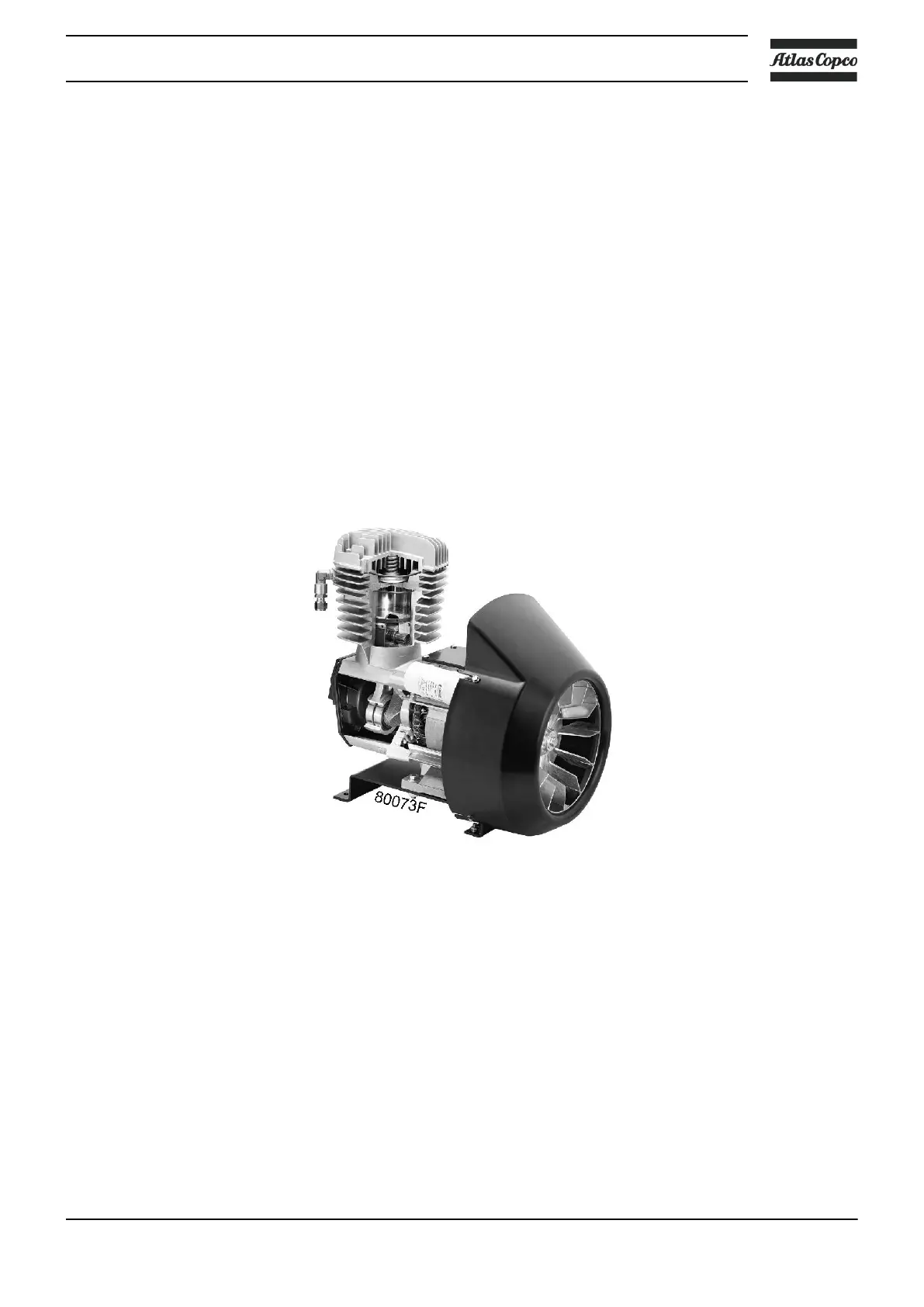

LFx Power block
Power box
LFx Power box are provided with a sound-insulated bodywork. The Power box includes an electric motor.
The unit can be used to install on an air receiver.
Instruction book
2920 7002 03 9
