Instruction book
AF Air filter
DP Oil drain plug
FN Fan
M Motor
SG Oil level sight-glass
1 Cover
2 Intercooler
3 Air inlet silencer
4 Crankcase
5 Cooling pipe
6 Cylinder
7 Unloader
8 Relief valve
9 HP cylinder
10 LP cylinder

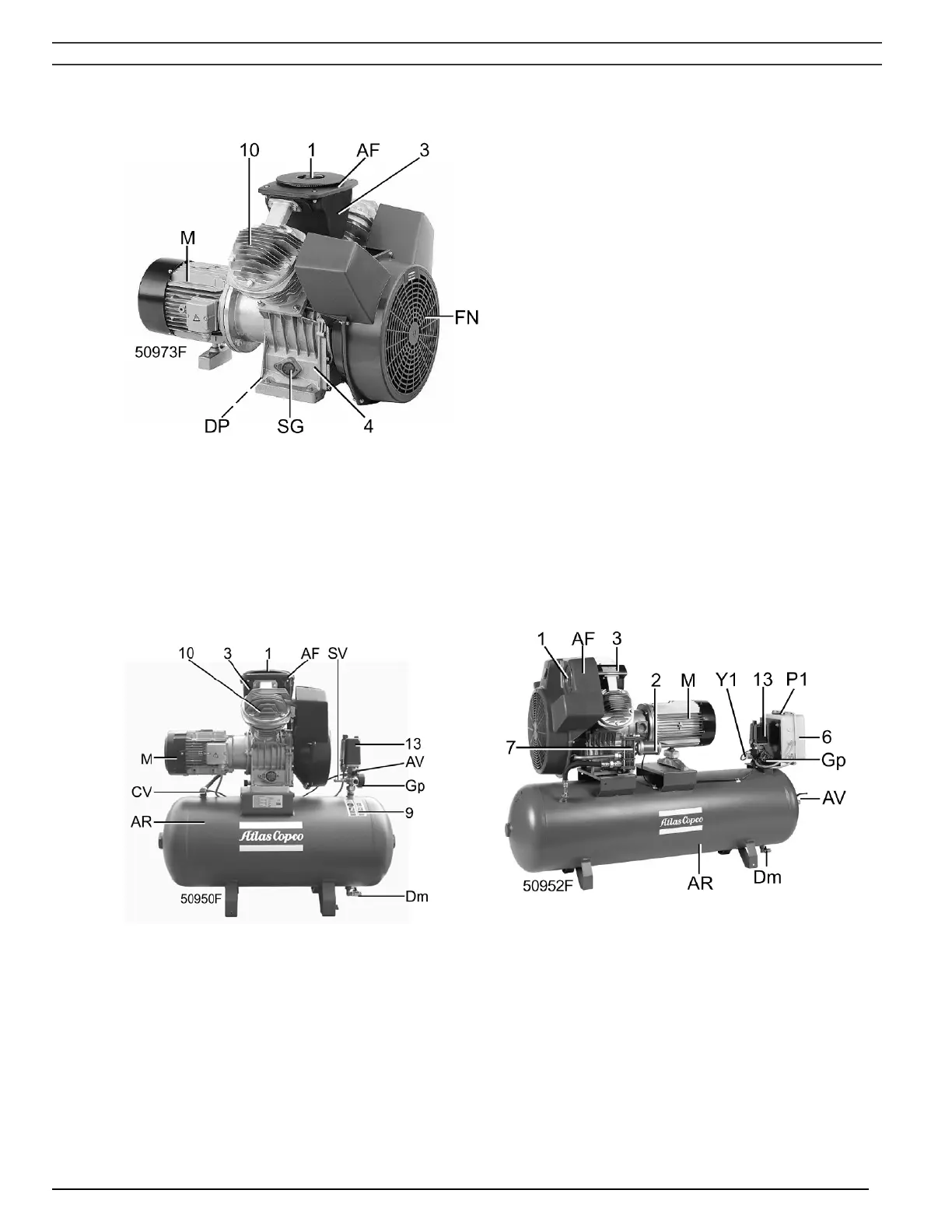

Fig. 1.3 Power Pack
Figs. 1.1 up to 1.3 General views, Compressor Block - Power Pack
Fig. 1.4 Tank-mounted unit, LE/LT/LF2, -3,
horizontal receiver (standard receiver is
120 l)
Fig.1.5 Tank-mounted unit, LE10 60 Hz, LE5-20, LT15,
-20 and LT/LF5-10 (standard receiver is 250
l)
2920 1585 00 - 6 -
