2920 1443 01
30
Instruction book
2.3 Cable section and setting of the circuit breaker of the fan motor on air-cooled dryers
50 Hz
Type Voltage Setting of circuit Cable section, Cable section,
breaker, fan motor fan motor gear motor
(V) (A)
MD50 230 1.6 4x1.5 3x1.5
MD50 400 0.6 4x1.5 3x1.5
MD100 230 1.63 4x1.5 3x1.5
MD100 400 0.95 4x1.5 3x1.5
MD200, -300, -400 230 2.2 4x1.5 3x1.5
MD200, -300, -400 400 3.8 4x1.5 3x1.5
MD200, -300, -400 500 1.8 4x1.5 3x1.5
60 Hz
Type Voltage Setting of circuit Cable section, Cable section,
breaker, fan motor fan motor gear motor
(V) (A)
MD200, -300, -400 440 2.4 4x1.5 3x1.5
MD200, -300, -400 460 2.3 4x1.5 3x1.5
MD200, -300, -400 575 1.8 4x1.5 3x1.5
1 Worm gear housing
2 Vent hole, worm gear housing
3 Worm gear motor
4 EWD, inlet air water separator
5 EWD, regeneration air water separator
6 Filler plug, worm gear housing

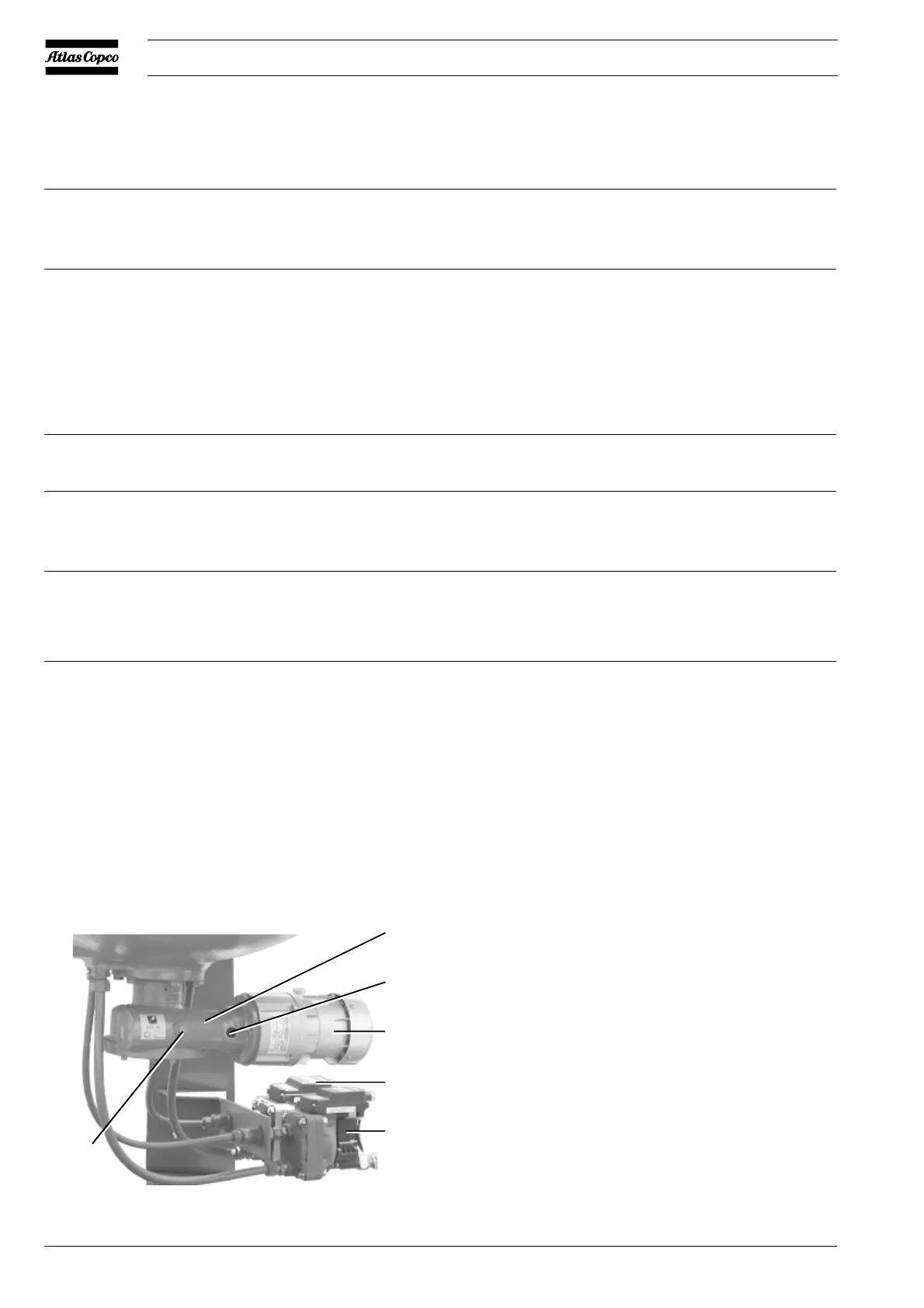

Fig. 2.15 Drain connections and worm gear housing
1
2
3
4
5
6
51344F
