Atlas Copco MD50 - Installation proposal

2920 1443 01
29
Instruction book
2.2 Installation proposal
A connection pipe set is included in the dryer package. All pipes must be mounted stress-free and the regeneration air pipe must
be insulated properly. Install the dryer on a level floor.

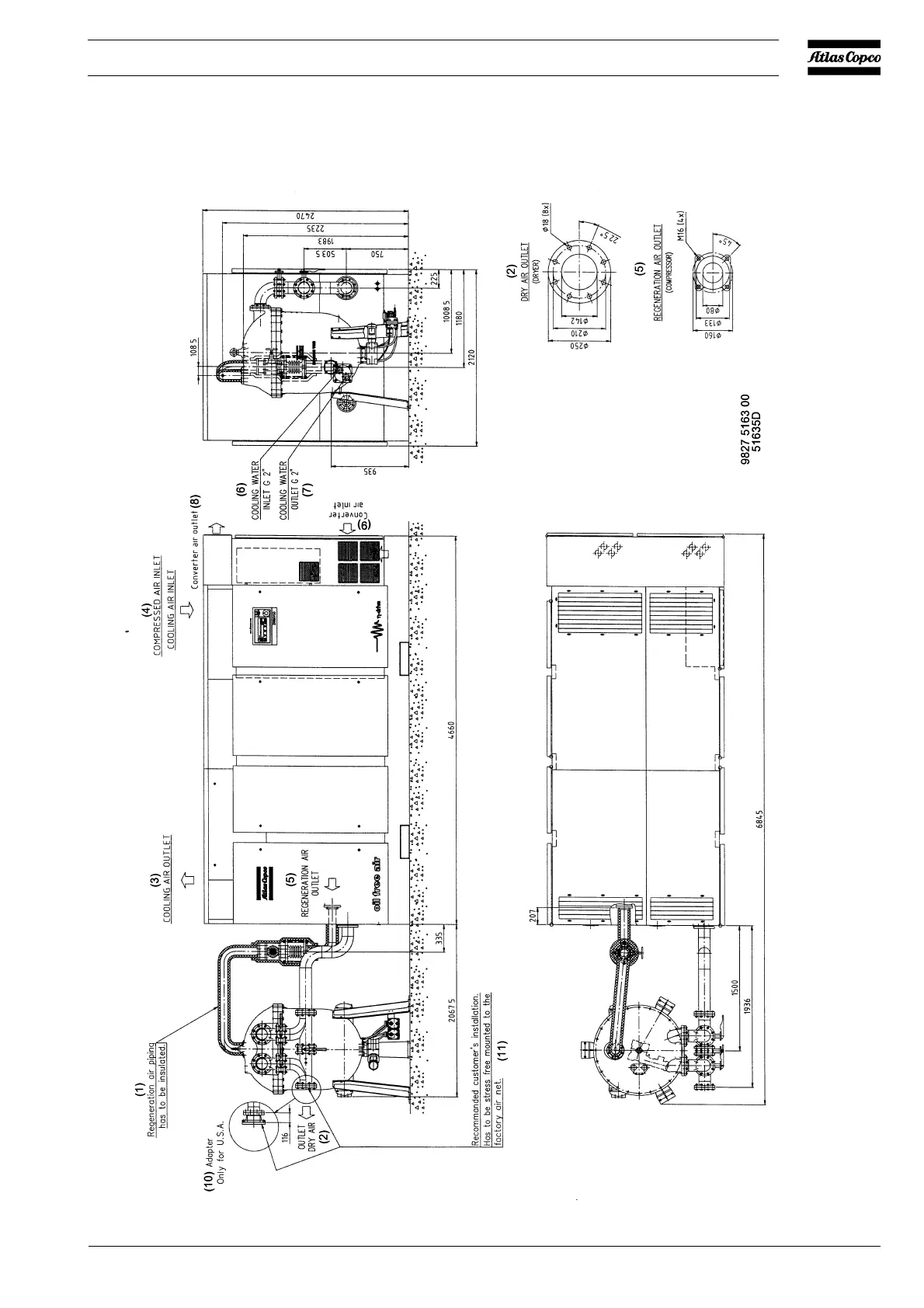

Fig. 2.14 Installation proposal for ZR900 VSD with water-cooled MD2500 VSD
