Atlas Copco PHE 6 H

10
PAGE
Repair Instructions No.181.03/98
PHE 6 H / PHE 6 S

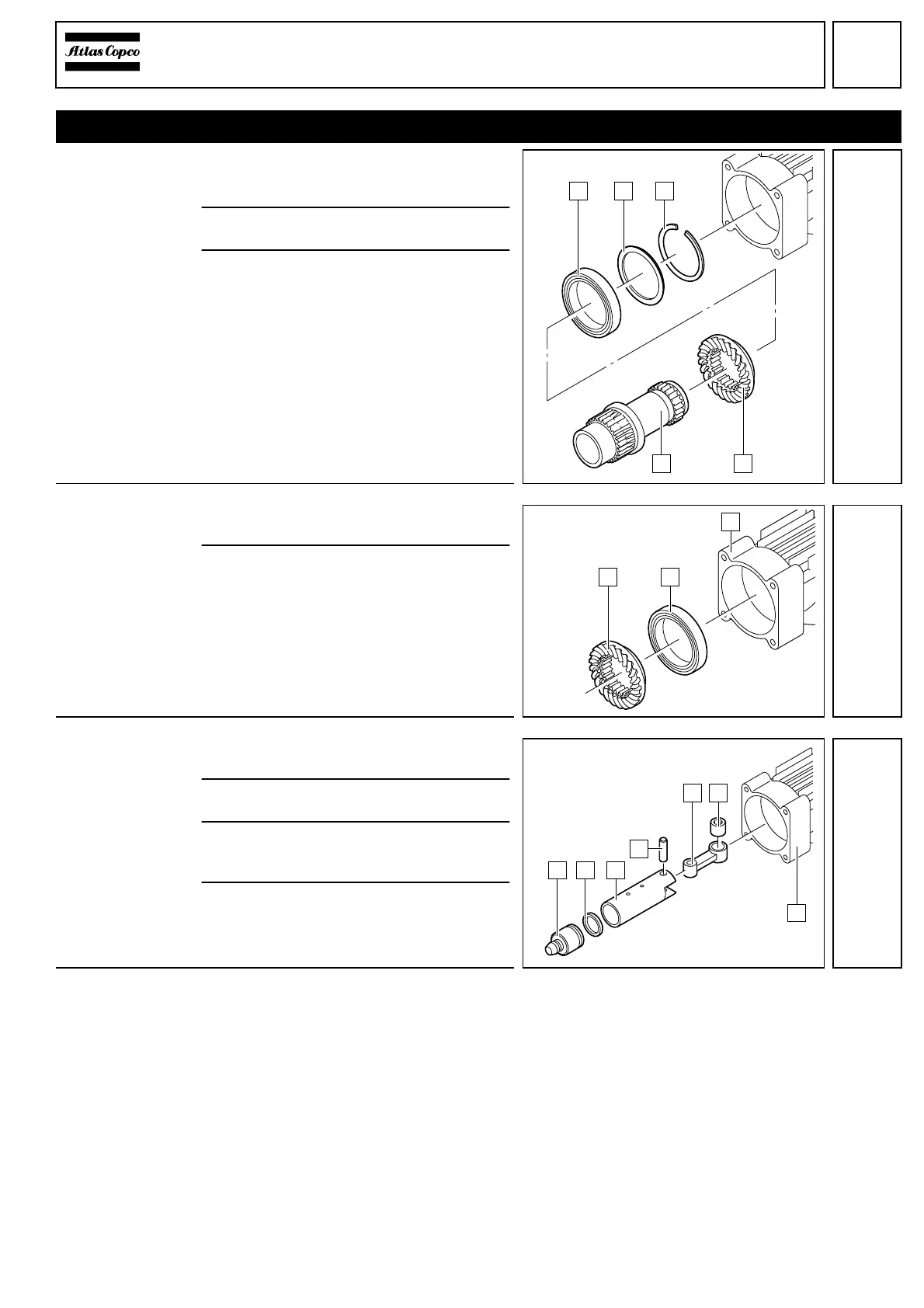

Assembly
PHE 6 S:
Mounting the
cylinder
1 Press the bearing (1) onto the bevel
gear (4). Fit the spring washer (2) and
secure it with the spring ring (3).
2 Insert the bevel gear (4) completely with
the bearing (1) flush into the housing.
3 Insert the cylinder (5) into the housing as
far as it will go.
PHE 6 H:
Mounting the
bevel gear
1 Press the bevel gear bearing (2) into the
bevel gear (1).
2 Press the bevel gear (1) flush with the
bearing (2) into the gear housing (3) using
a suitable mandrel for support.
Mounting the
piston and the
connecting rod
1 Press the needle bearing (6) into the con-
necting rod (5).
2 Push the striker (1) with the O-ring (2) into
the piston (3).
3 Put together the piston (3) and the con-
necting rod (5) and push the cylindric
bolt (4) through both borings.
4 Insert the piston (3) with the connecting
rod (5) into the gear housing (7).
