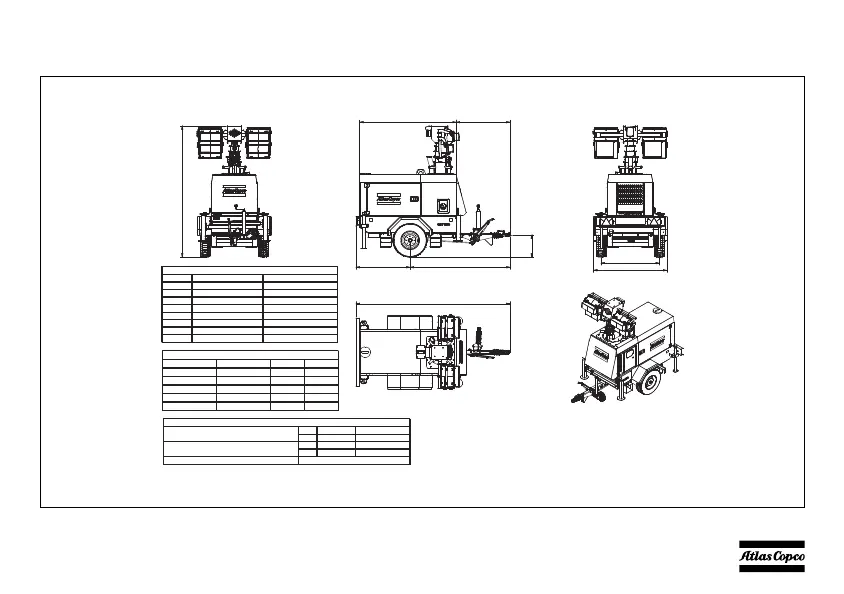

10.4 Dimension drawings
10.4.1 Dimension drawing for QLT H50 with fixed towbar
A Total length (mm ) See c oupling system table
5921)mm(htdiwlatoTB
0132)mm(thgiehlatoTC
DBaseframe length (mm) 1700
ETowbar length (mm) See coupling s ystem table
FTowbar heigth (mm) 390
GWheel track width (mm) 1025
H Front cantilever (mm ) See c oupling system table
IRearcantilever (mm) 950
QLT H 50 FIX ED TOWBAR
Type A E H
AK160 HEAD Ø50 2709,5 947,5 1759,5
DIN EYE Ø 40 2734 972 1784
ITA EYE Ø 45 2741,5 979,5 1791,5
FRA EYE Ø 68 2736 974 1786
NATO EYE Ø 76 2744 982 1794
COUPLING SYSTEM
1.300
QLT H50 FIXED TOWBAR
Maximum Technically P ermissible Laden Mass (Kg.)
Ma ximum empty weight(Kg.)
Min i mu m em p ty weight(Kg.)
D
C
G
I H
F
Isometric view (1:30)
B
A
E
TOTAL
1185
TOTAL
1051,5
Weight on axle
1102
Weight on axle
978
Weight on towing eye
83
Weight on towing eye
73.5
