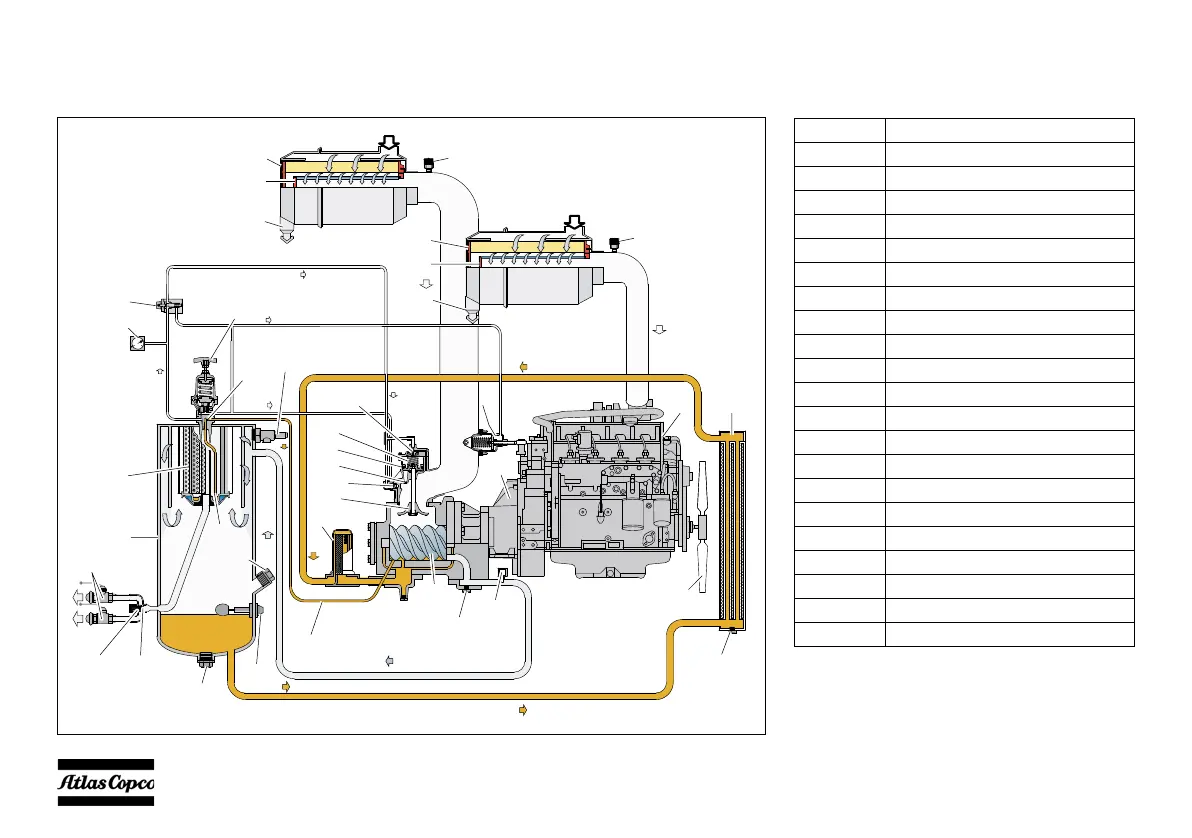

COMPRESSOR REGULATING SYSTEM
OVERVIEW (LOAD CONDITION)
(BOV)
(AFce)
(LV)
(DP)
(MPV)
(NRV)
(UV)
(UA)
(VH)
(BDV)
(CV)
(CH)
(AOV)
(AFE)
(RV)
(SR)
(VV)
(VI)
(VV)
(SV)
(FR)
(PG)
(AR)
(DP)
(OLG)
(SL)
(FP)
(SL)
(OF)
(CE)
(DP)
(TS)
(F)
(OCce)(E)
(VI)
(SC)
(SC)
(OS)
Reference Name
AFce Air Filter (compressor element)
AFe Air Filter (engine)
AOV Air Outlet Valves
AR Air Receiver
BDV Blow Down Valve
BOV Blow Off Valve
CE Compressor Element
CH Coupling Housing
CV Check Valve
DP Drain Plug
EEngine
FFan
FP Filler Plug
FR Flow Restrictor
LV Loading Valve
MPV Minimum Pressure Valve
NRV Non Return Valve
OCce Oil Cooler (compressor element)
OF Oil Filter
OLG Oil Level Gauge
OS Oil Separator
