Atlas Copco XAS 67 Dd C3 APP - Unit Dimensions

- 109 -

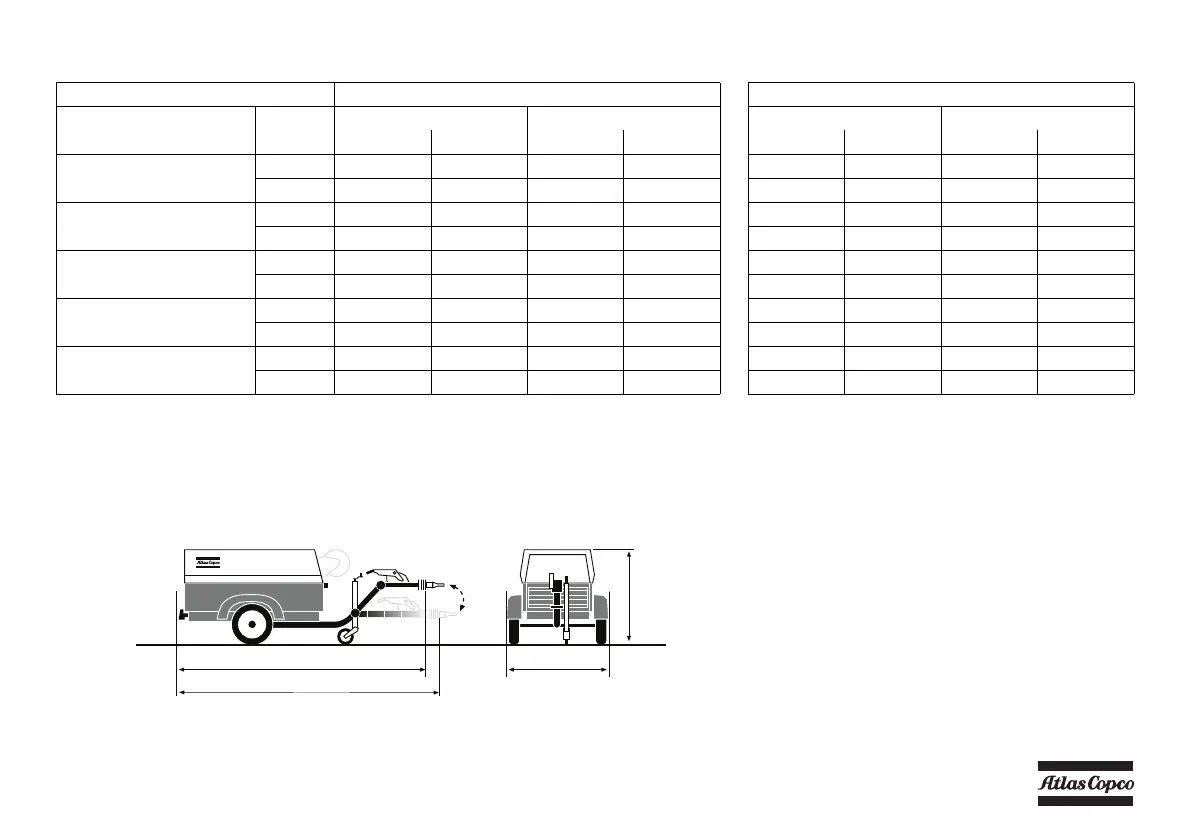

Unit dimensions
1)
Dimensions without towing eye
Generator option:
2)
110V: +35 kg / 77 lbs
3)
230/400V: +42 kg / 93 lbs
XAS 67 - XAS 130 / XATS 67 - XATS 125 XAS 77 - XAS 150 / XAS 97 - XAS 185
without brakes with brakes without brakes with brakes
Towbar fixed adjustable fixed adjustable fixed adjustable fixed adjustable
Length (A)
1)
mm 2827 - 2970 3302/3470 2827 - 2970 3302/3470
in 111 - 117 130/136 111 - 117 130/136
Width (B) mm 1410 - 1410 1410 1410 - 1410 1410
in 55 - 55 55 55 - 55 55
Height (C) mm 1258 - 1258 1258 1258 - 1258 1258
in 49 - 49 49 49 - 49 49
Weight
(ready-to-operate)
2) 3)
kg 880 - 915 930 890 - 925 940
lbs 1940 - 2018 2051 1963 - 2040 2073
Weight (dry)
2) 3)
kg 815 - 850 865 825 - 860 875
lbs 1797 - 1874 1907 1819 - 1896 1929
AB
C
