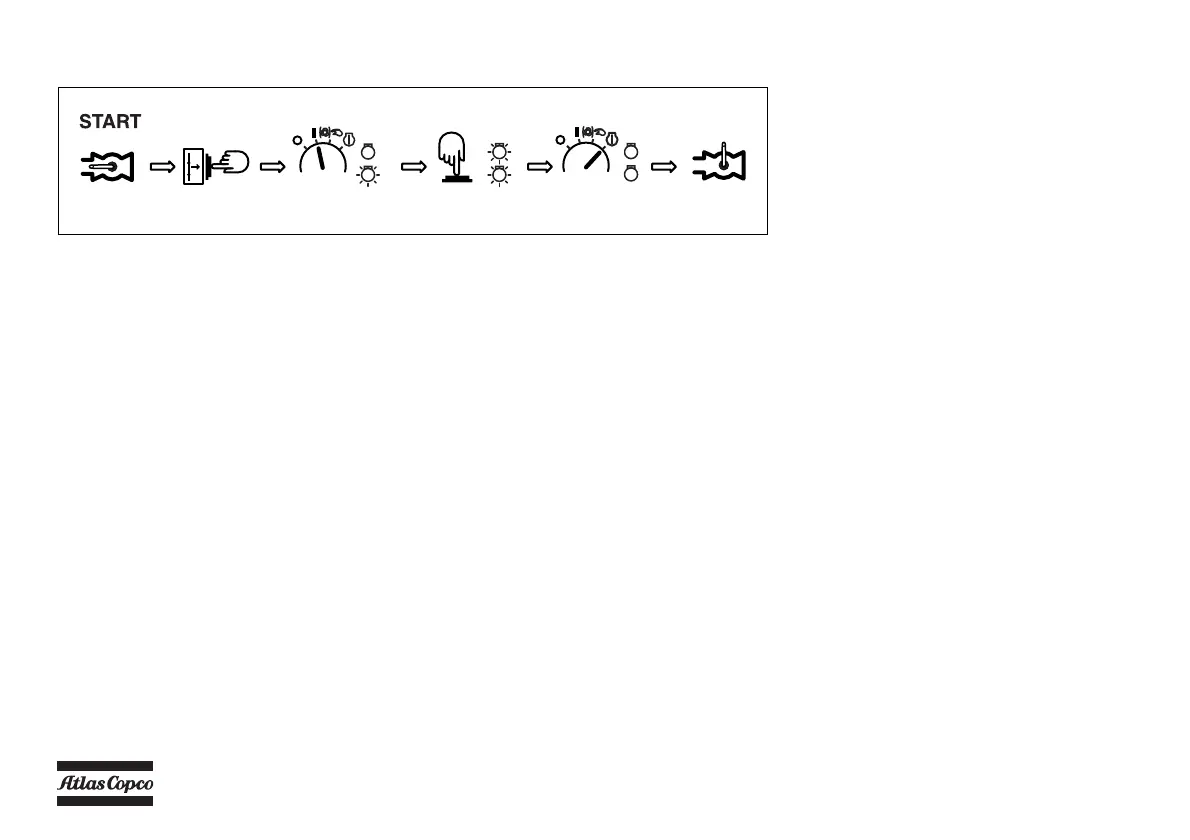

Starting procedure
1. Open air outlet valve.
2. Press circuit breaker F1. For cold start press
button S6.
3. Turn start switch S1 clockwise to position 1, lamp
H2 (general alarm lamp) will go on.
4. Check correct operation of alarm lamps H1 and
H2 by pushing lamp test button S4. Both alarm
lamps (red) should go on.
5. Turn start switch S1 further clockwise into
position 3.
The starter motor will set the engine in motion.
The maximum allowed starter time, where the
starter motor is running continuously, is 20
seconds.
If the engine does not catch, a new attempt can be
made after waiting 30 seconds.
The temperature alarm lamp H1 and the general
alarm lamp H2 will go out as soon as the engine
has been started.
The start switch automatically springs back to
position 1.
Lamp H1 will only come on when the compressor
outlet temperature is too high.
6. Close the air outlet valve(s) (AOV).
