Electrical System

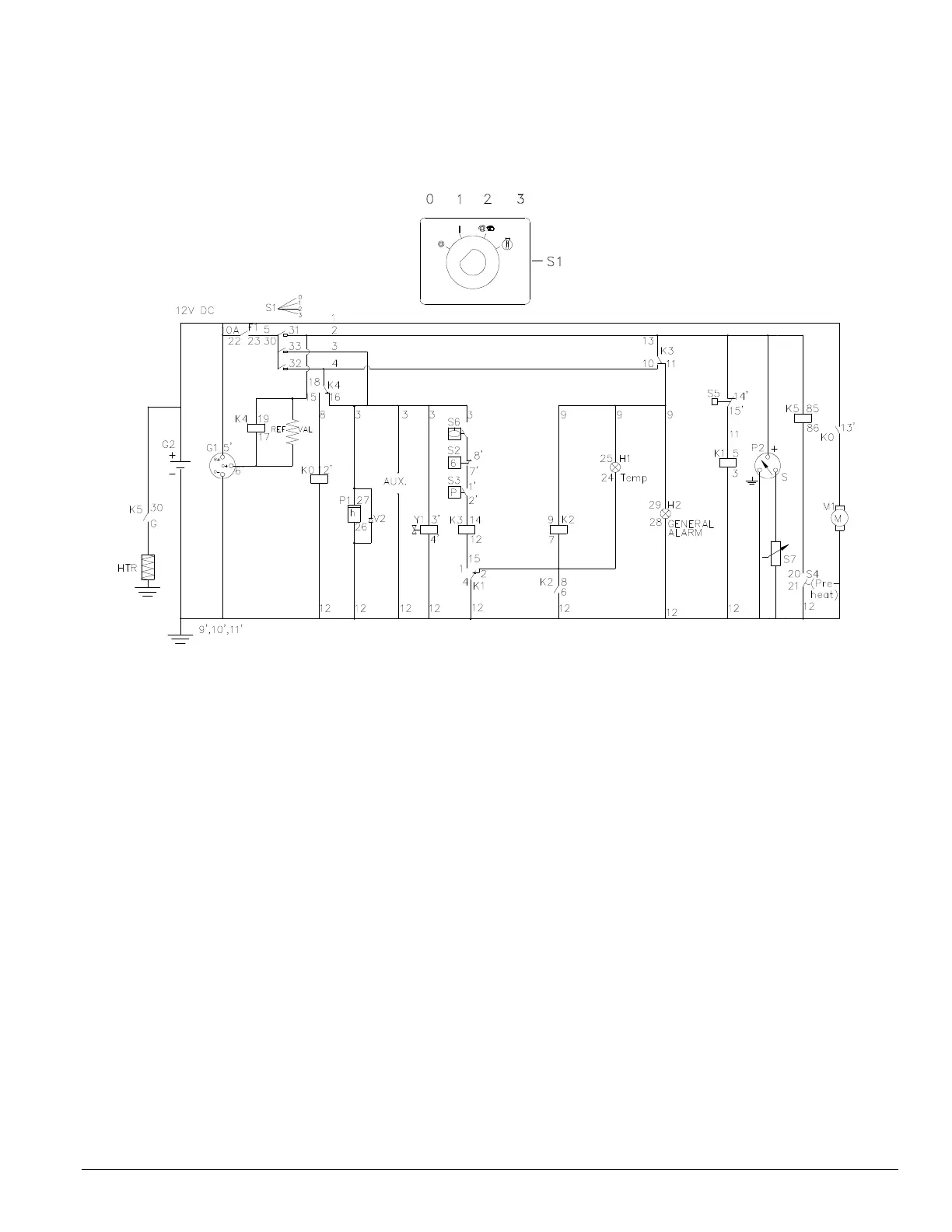

2.7.1 Circuit Diagram
Figure 2.7 Circuit diagram
F1 Circuit breaker (10A)
G1 Alternator
G2 Battery
H1 Temperature alarm lamp
H2 General alarm lamp
HTR Engine pre-heater (Glow plug)
K0 Starter solenoid (part of M1)
K1 Relay
K2 Relay
K3 Relay
K4 Relay
K5 Relay
M1 Starter motor
P1 Hour meter
P2 Fuel Level Gauge
S1 Contact switch (Off-On-Override-start)
S2 Temperature switch engine
S3 Oil pressure switch engine
S4 Lamp test switch
S5 Temperature switch (Compressor)
S6 Low Fuel Level switch
S7 Fuel Level sender
Y1 Fuel solenoid valve
R1 Resistor
V2 Diode
