- 25 -

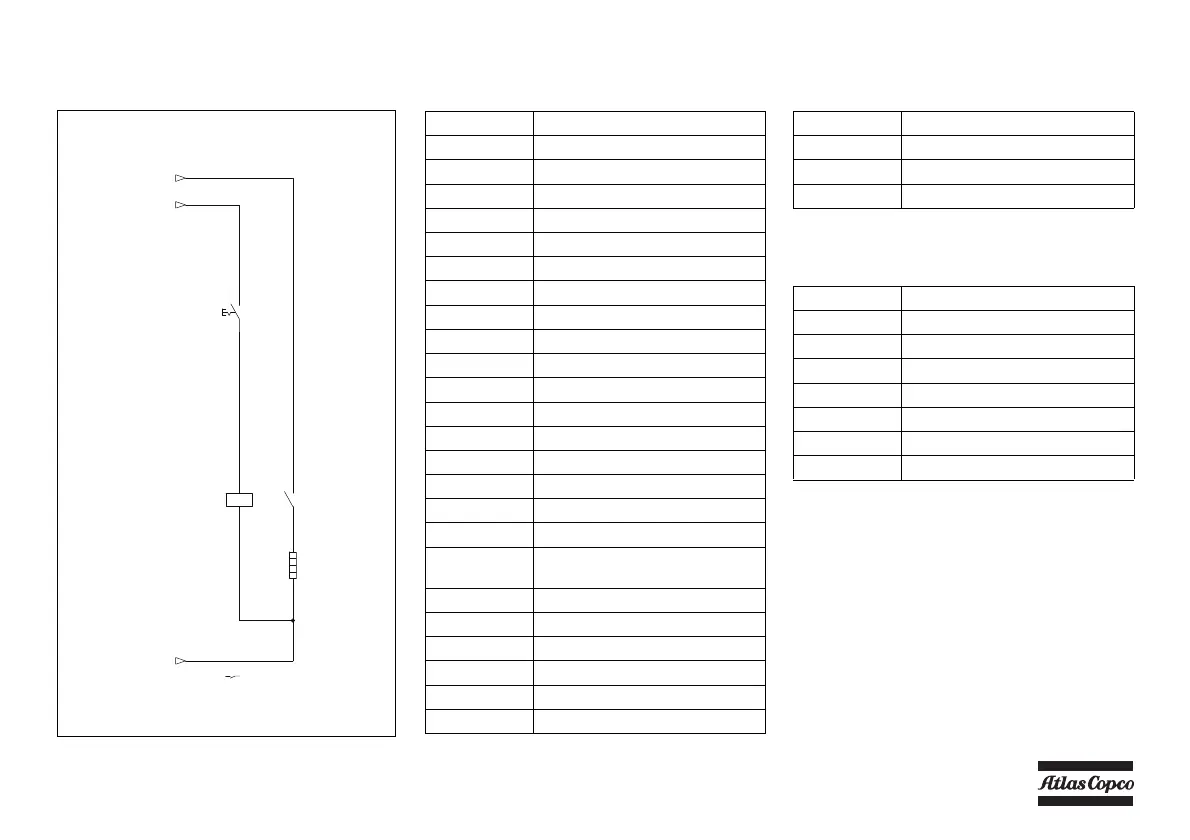

(Coldstart Option)
The compressor is equipped with a negative earthed
system.
K5
K5
S6
R1
02
02
02
03.2
12 (b6)
1 (e2)
2 (a3)
16 (b3)12 (b6)
12 (b6) 17 (e2)
03.3
Reference Name
F1 Main Circuit Breaker
G1 Alternator
G2 Battery
H1 Temperature Alarm Lamp
H2 General Alarm Lamp
K0 Starter Solenoid
K1 Relay Temperature Alarm
K2 Relay Temperature Alarm Hold
K3 Relay Oil Pressure
K4 Relay Charge Fail Protection
K5 Relay Heater Plug
K6 Relay Heater Plug
M1 Starter Motor
N1 Starter Protection Relay
P1 Digital Hour Meter
R1 Heater Plug (optional)
R2 Heater Plug (optional)
S1 Contact Switch (Off-On-
Override-start)
S2 Temperature Switch Engine
S3 Oil Pressure Switch
S4 Temperature Lamptest Switch
S5 Temperature Switch Compressor
S6 Switch (optional)
V1 Diode
Reference Name
X1 Connector
X3 Auxiliary Connection
Y1 Fuel Solenoid Valve
Wire size Colour code
a = 1 mm
2
2 = red
b = 1.5 mm
2
3 = orange
c = 2.5 mm
2
6 = blue
d = 4 mm
2
e = 6 mm
2
f = 10 mm
2
j = 50 mm
2
