Atlas Copco XAVS 650 CD7 - Draining Instructions

- 62 -

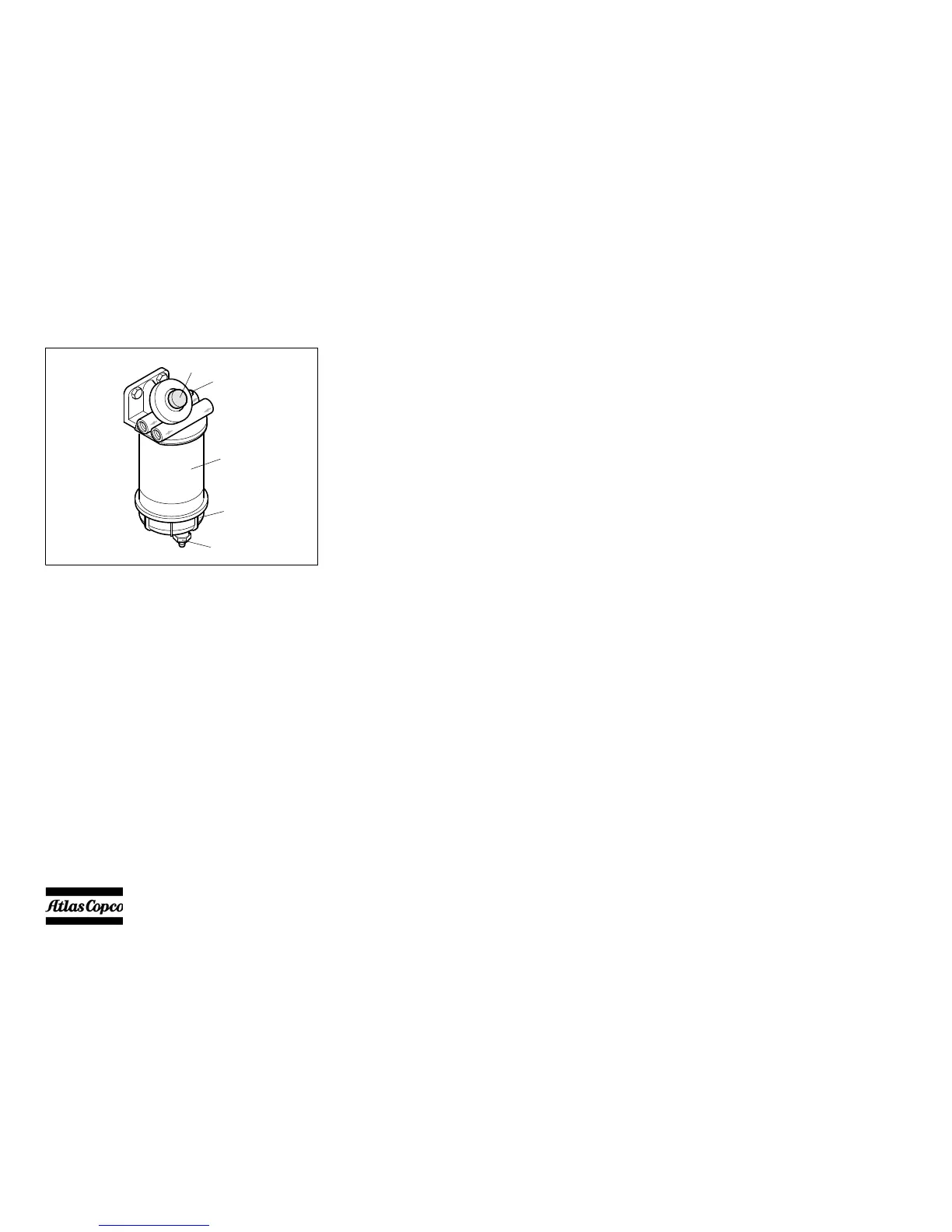

DRAINING INSTRUCTIONS
1. Open bowl drain valve (1), operate pump (5) and
pump water out.
2. Close drain valve (1).
Replacing the filter elements: (to be updated)
Installation instructions:
1. Drain fuel from the bowl.
2. Remove filter (2, 3), filterelement (4) and separate
bowl (2) from element (3).
3. Apply film of gas oil to new bowl seat.
4. Screw bowl (2) to new element (3) tightly by
hand.
5. Apply film of gas oil to new element seals.
6. Screw on filter (2, 3) and filterelement (4) tightly
by hand.
7. Open head vent and operate pump (5). Close vent
when fuel begins to purge.
8. Check for leaks, retighten if necessary.
(1)
(4)
(3)
(2)
(5)
