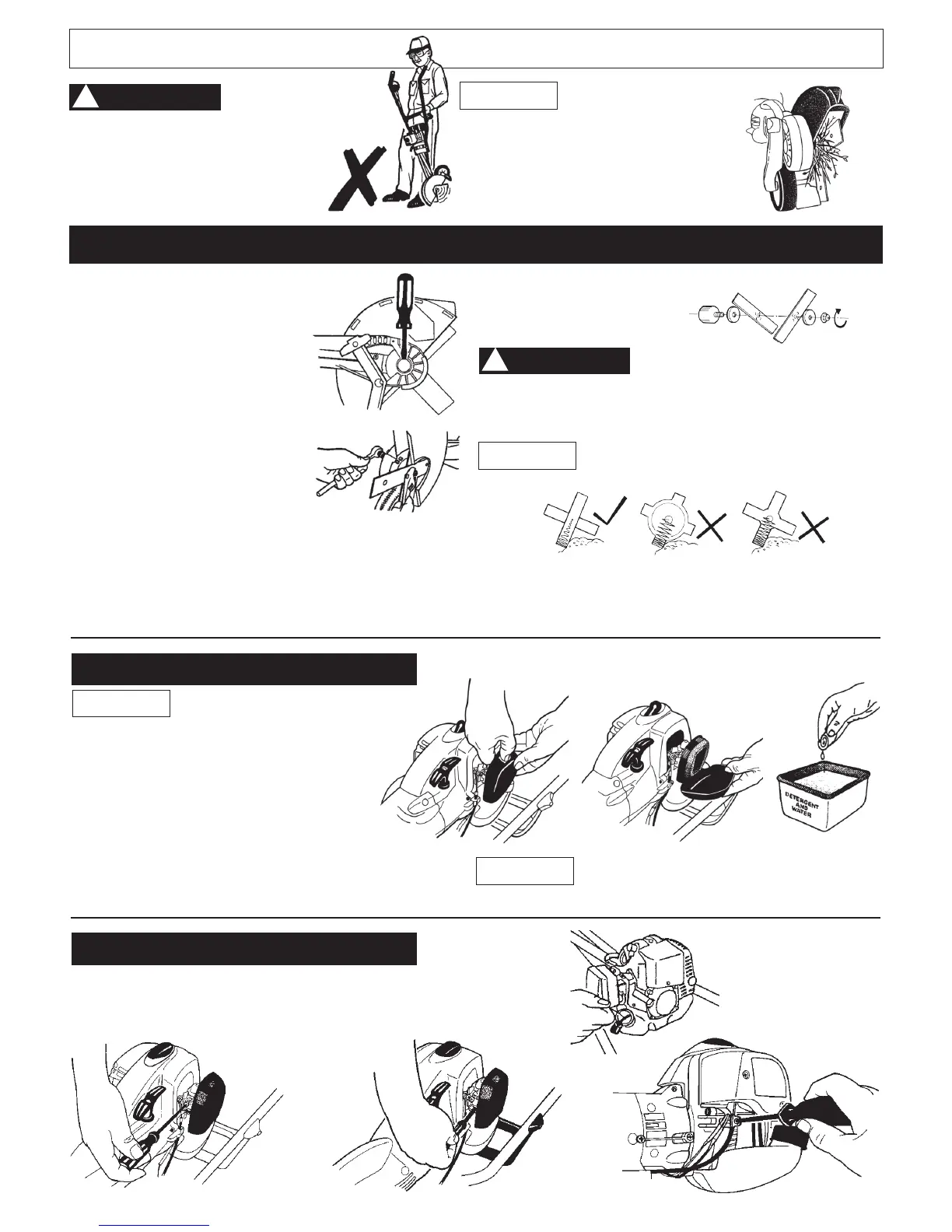

PAGE 6
MAINTENANCE INSTRUCTIONS
FIG 26
FIT BLADES AT RIGHT ANGLES
2 SPIGOTS ON EACH BLADE
FIT INTO HOLES OF OTHER BLADE
BLADE REPLACEMENT
1. Use impact driver to undo blade
nut, then proceed to instruction 4.
Otherwise clean area around
dust cover #62936 and pry off with
screwdriver (Fig. 24) exposing 14mm
hex head (for unscrewing blade nut).
2. Through dust cover hole, place
14MM FULL 6 SIDED 6 pointed
socket spanner (do not use 12 sided
12 pointed socket spanner) over hex
head, and use 19mm (or adjustable)
spanner on blade nut.(Fig. 25).
3. Unscrew blade nut counter (anti)
clockwise (normal right hand thread).
4. Remove nut, one large washer and two blades (Fig. 26).
Before installing blade and washers, clean off all grit and
grease. Re-assemble these parts clean and dry. Fit large
washer, new blades #43105 with spiggots of one blade
interlocking with holes on opposite blade, large washer
and nut. Tighten nut to 15-20ft.lbs. (20-27Nm) or hand
tight with 8” (200mm) or longer spanner.
Hardened Atom spring
steel cross blades absorb
shock when rocks and
hard objects are hit,
ensuring long edger life.
Non-Atom edger blades do not absorb shock
due to solid stiff construction. Gear and edger
life is reduced. NO WARRANTY allowed if
damage to Atom unit caused by use of non
genuine Atom parts.
FIG 25
FIG 24
FITTING INSTRUCTIONS
USE ONLY ORIGINAL ATOM BLADES
#43105. Other blades have larger size
holes (1/2”) which will cause out-of-balance vibrations which will
damage unit and cause injury. Other blades can also break and
cause major injury. Circular blades must not be used. Only use
ORIGINAL Atom blades otherwise warranty is VOIDED.
! WARNING
Always use two blades as shown above. Never
use a single blade. Do not use other thicker
blades as you will damage the unit.
! NOTE
AIR FILTER MAINTENANCE
! NOTE
Clean and re-oil the air filter every
20 hours of operation or weekly.
FIG 27B
FIG 28
1. The air filter (Fig.27B) is one of the most important
areas to maintain. If it is not maintained, you will
void the warranty. Before cleaning, make sure the
unit is turned off.
2. To remove press clip on filter cover (Fig 27A).
If filter torn or dirty replace.
3. Wash the filter in detergent and water (Fig 28).
Rinse the filter thoroughly and dry with compressed air.
4. Apply enough clean SAE 30 or 2-stroke oil to saturate
the filter when squeezed. Squeeze the filter to spread the
oil and to remove excess oil. Re-install the filter element.
5. Replace fuel lines every 3 years or sooner if damaged.
If the unit is operated with dry or dirty filter or
without the air filter and/or carburetor air filter
cover, you will void the warranty.
! NOTE
FIG 27A
CARBURETTOR ADJUSTMENT
The idle speed can be adjusted as shown (Fig.29). Adjust idle speed clockwise
for higher engine speed. Adjust so blade does not turn.
The jets can only be adjusted by your Repair Specialist. A service tool (Part No.
63627) is required (Fig.30). The throttle cable can be adjusted as shown (Fig.31).
FIG 29 FIG 31FIG 30
FUEL FILTER
The fuel filter can be cleaned
by hooking out with a piece
of wire and blowing with
compressed air (Fig.32).
FIG 32
EDGING INSTRUCTIONS
(
CONTINUED
)
! NOTE
Keep the inside of blade guard
clean, especially in muddy
conditions. A clogged guard can slow down or
stop blade rotation and may cause damage to
automatic safety clutch. Always operate blade
at high speed when edging.
To prevent damage to Edger body, untangle and
remove any grass, vines or wire that may wrap
around the blade drum.
FIG 22
To avoid personal
injury, never carry the
Edger while the motor is running. Never hold the
handle cross brace if the motor is running. (Fig.22)
Stop the engine prior to lifting or carrying.
The Lawn Edger can be transported by
guiding it on its wheel, or carrying it with
motor switched off holding handle between
blade cover and motor.
! WARNING
FIG 23
