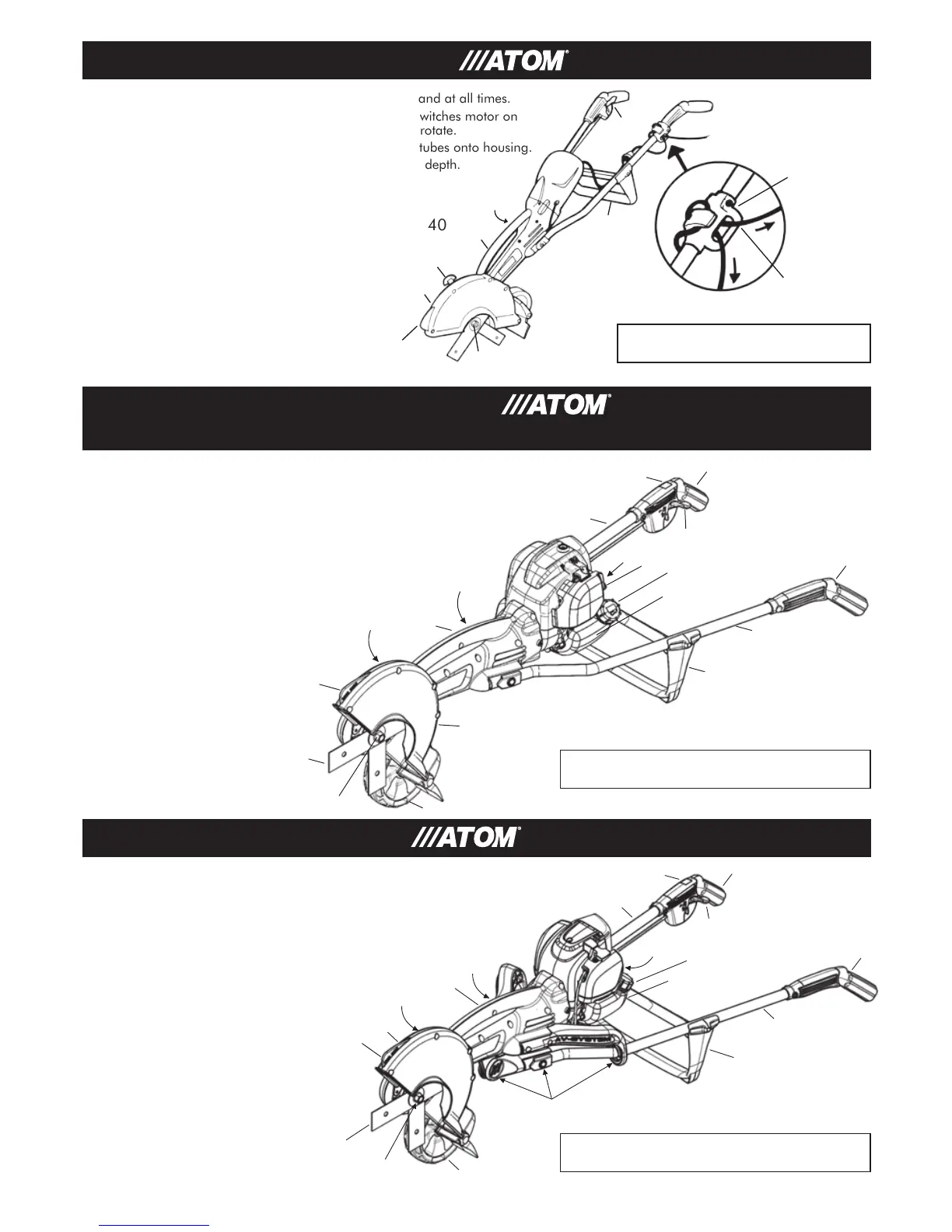

PARTS & CONTROLS: GASOLINE
DOMESTIC & DELUXE EDGERS
PARTS & CONTROLS: ELECTRIC EDGER
1
+
2. Each handle grip of the edger are held by each hand at all times.
3. The throttle interlock releases the throttle trigger that switches motor on
and automatic safety clutch engages and thus blades rotate.
4. Handle knob on RH side of edger for holding handle tubes onto housing.
5. Depth adjustment for adjusting wheel to regulate blade depth.
6. Handle to carry edger.
7. Blade cover reduces the risk of flying debris
and direct contact with the feet or hands.
8. Blades rotate when motor is switched on.
9. Nut for holding blades (RH thread).
10. Wheel for moving and guiding edger.
11. Cross Brace, attaches downward on handle tubes.
12. Handle Tube.
14. Electric Pod motor assembly.
15. Suitable extension cord for outdoor appliances.
16. Extension cord anchor.
17. Edge guide.
FIG 40
–
1
–
2
8
–
–
10
16
3
11
14
–
5
–
15
12
–
7
6
4
PAGE 6
17
15
18
1
16
15
4
5
3
17
12
6
7
14
8
9
10
11
12
2
19
1+2. Each handle grip of the edger are held by each hand at all times.
3. The throttle interlock which releases the throttle trigger which increases the
speed of the automatic safety clutch to engage and thus rotate blades.
4. Handle knob for holding handle tubes onto housing.
5. Depth adjustment for adjusting wheel to regulate blade depth.
6. Handle to carry edger.
7. Blade cover reduces the risk of flying debris and direct
contact with the feet or hands.
8. Blades rotate when engine speed is
increased above idle.
9. Nut for holding blades (RH thread).
10. Wheel for moving and guiding edger.
11. Cross Brace, attaches downward
on handle tubes.
12. Handle tubes.
14. Edge guide.
15. Fuel tank.
16. Carburettor primer.
17. Ignition ON/OFF switch.
18. Fuel tank cap.
19. Choke lever.
FIG 41
18
9
1
17
12
6
16
15
2
12
11
4
5
7
8
10
3
14
FIG 42
PARTS & CONTROLS: PROFESSIONAL EDGER
1+2.Each handle grip of the edger are held by each hand at all times.
3. The throttle interlock which releases the throttle trigger which increases
the speed of the automatic safety clutch to engage and thus rotate
blades.
4. Handle knob for holding handles onto housing.
5. Depth adjustment for adjusting wheel to regulate blade depth.
6. Handle to carry edger.
7. Blade cover reduces the risk of flying debris and direct
contact with the feet or hands.
8. Blades rotate when engine speed is increased
above idle.
9. Nut for holding blades (RH thread).
10. Wheel for moving and guiding edger.
11. Cross Brace, attaches downward on handle tubes.
12. Handle tubes.
14. Main anti-vibration system.
15. Fuel tank.
16. Carburettor primer.
17. Ignition ON/OFF switch.
18. Fuel tank cap.
19. Edge guide
19
ELECTRIC EDGER INSTRUCTIONS
CONTINUE ON PAGE 9
GASOLINE DOMESTIC & DELUXE EDGER
INSTRUCTIONS CONTINUE ON PAGE 9
PROFESSIONAL EDGER INSTRUCTIONS
CONTINUE ON PAGE 9
