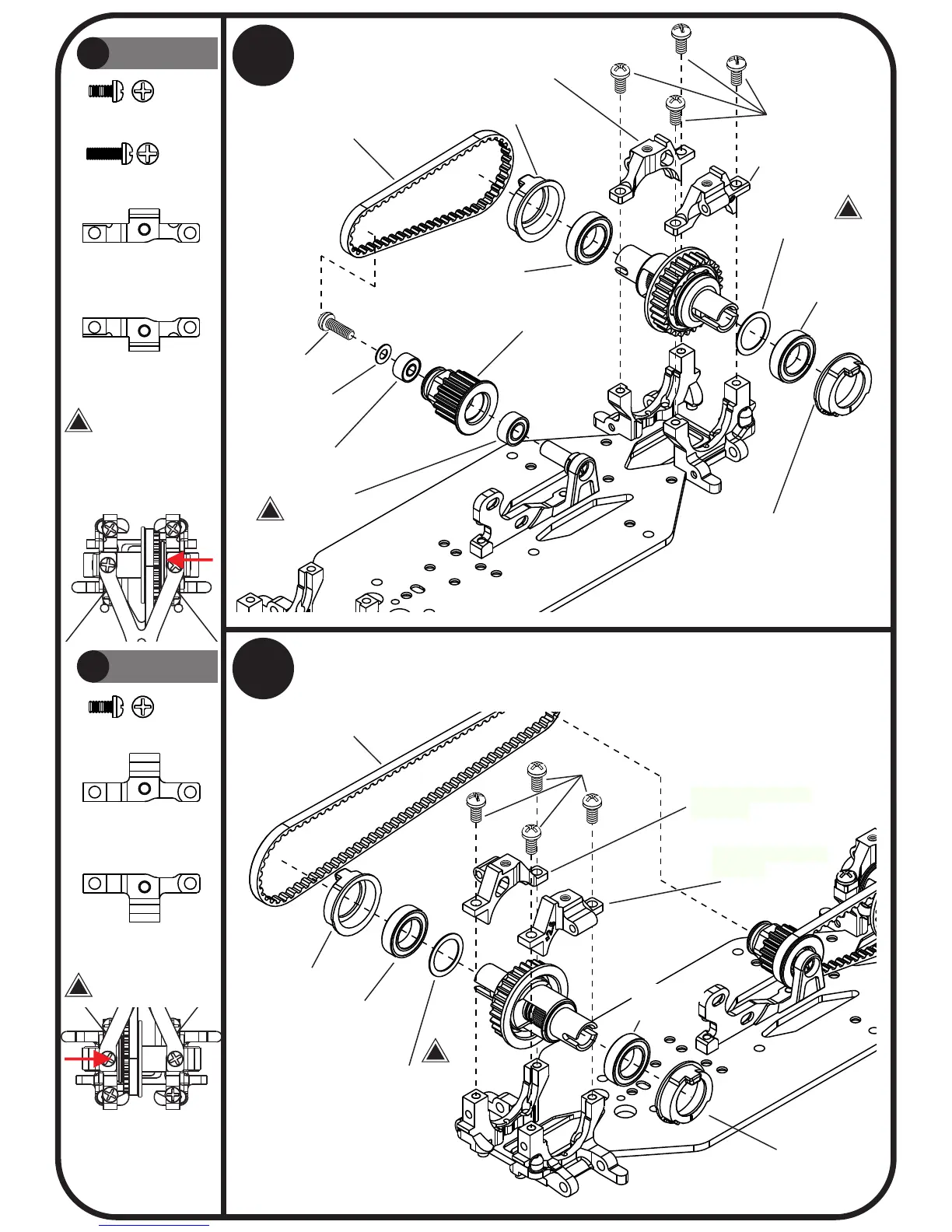

Atomic AMZ SERIES - Attaching Rear Ball differential & Center Pulley; Attaching Front Ball differential

M1.9x4PB
Bearing hub
Bearing hub
6x10x2.5
Bearing
6x10x2.5
Bearing
2x6PM
2x4x0.2
shims
2x5x2.5
Bearing
3x6x2.5
Bearing
Upper Bulkhead
B (+0)
Upper Bulkhead
A (+0)
16T Cnter Pulley
Drive belt (Short)
6x8 shims
About 0.2 mm
M1.9x4PB
6x10x2.5
Bearing
Bearing hub
Bearing hub
Upper Bulkhead
B (+2.5)
Upper Bulkhead
A (+2.5)
Drive belt (Long)
3
3
Attaching Rear Ball differential
& Center Pully
1.9x4PB (silver)
2x6PM
x4
x1
4
4
Attaching Front Ball differential
1.9x4PB (Silver)
x4
Upper Bulkhead
B (+0)
Upper Bulkhead
A (+0)
Upper Bulkhead
B (+2.5)
Upper Bulkhead
A (+2.5)
6x10x2.5
Bearing
P.2
6x8 shims
About 0.2mm
!
!
Attention:
!
Attention:
!
Add 0.2 mm
shims at this side
of outdrive cup.
Add 0.2 mm
shims at this side
of outdrive cup.
!
