Atomic DRZ - Front Chassis Assembly; 1. Attaching Steering slide; 2. Attaching front bulkhead

1
2

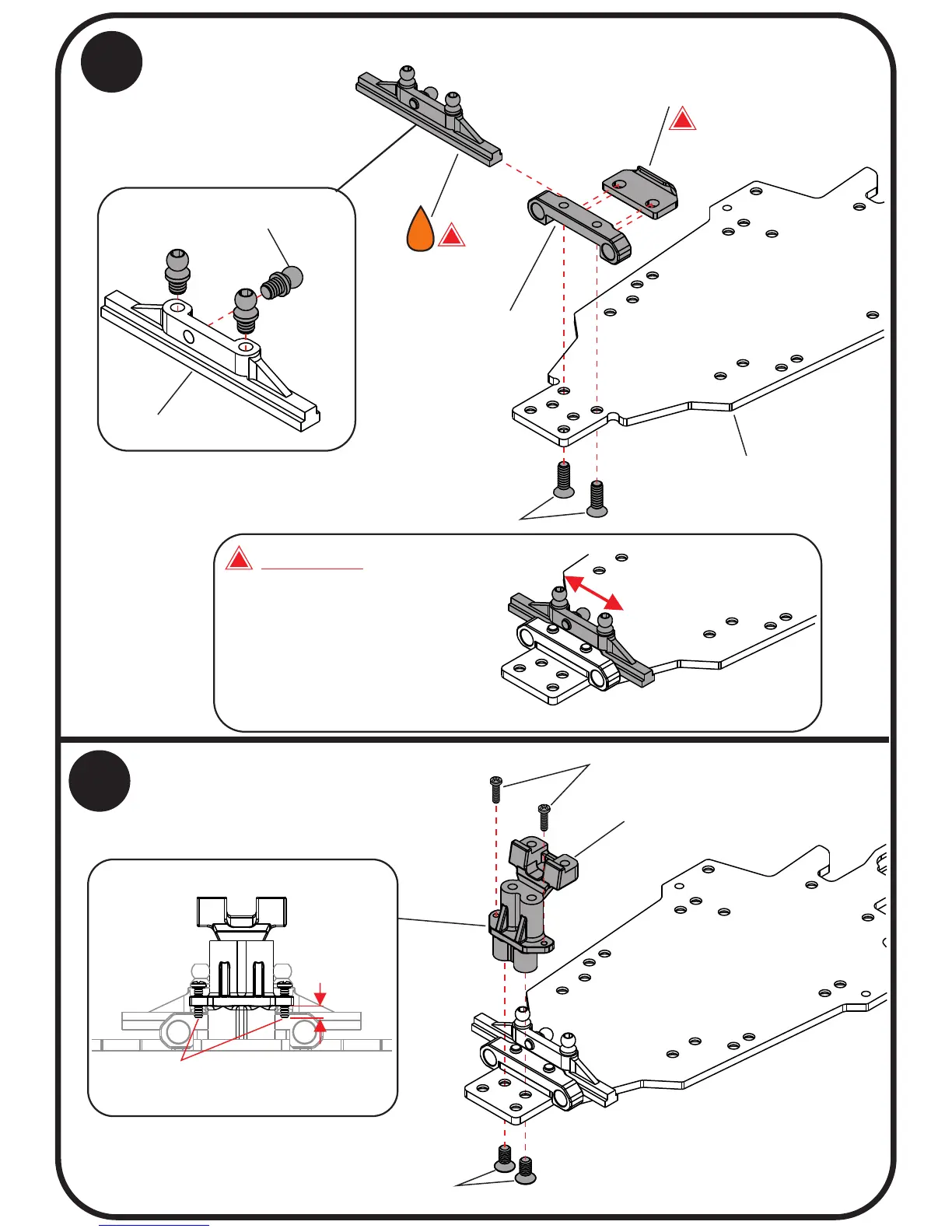

Attaching Steering slide
P.1
Linkage Ball
( )2.5mm
use sand paper to
grind the slider
Grease
Lower deck
2x6KM
Slide holder
Suspension mount
!
Caution:
!
Attaching front bulkhead
M1.2x4
Front Bulkhead
0 mm
M1.2 screw for adjust
front arm down stop
Default setup
2x4KM
Adjust the position of Slide Holder
to make sure steering is smooth
and no wobble.
Use sand paper to grind the bottom
of slider to ensure it sliding smooth.
Linkage Ball
( )3.5mm
Adjust the position of Slide Holder
to make sure steering is smooth
and no wobble.
!
