Atomic DRZ - Front Suspension Assembly; 3. Front Suspension assembly L;R; 4. Attaching Front Suspension; 5. Upper suspension assembly

3

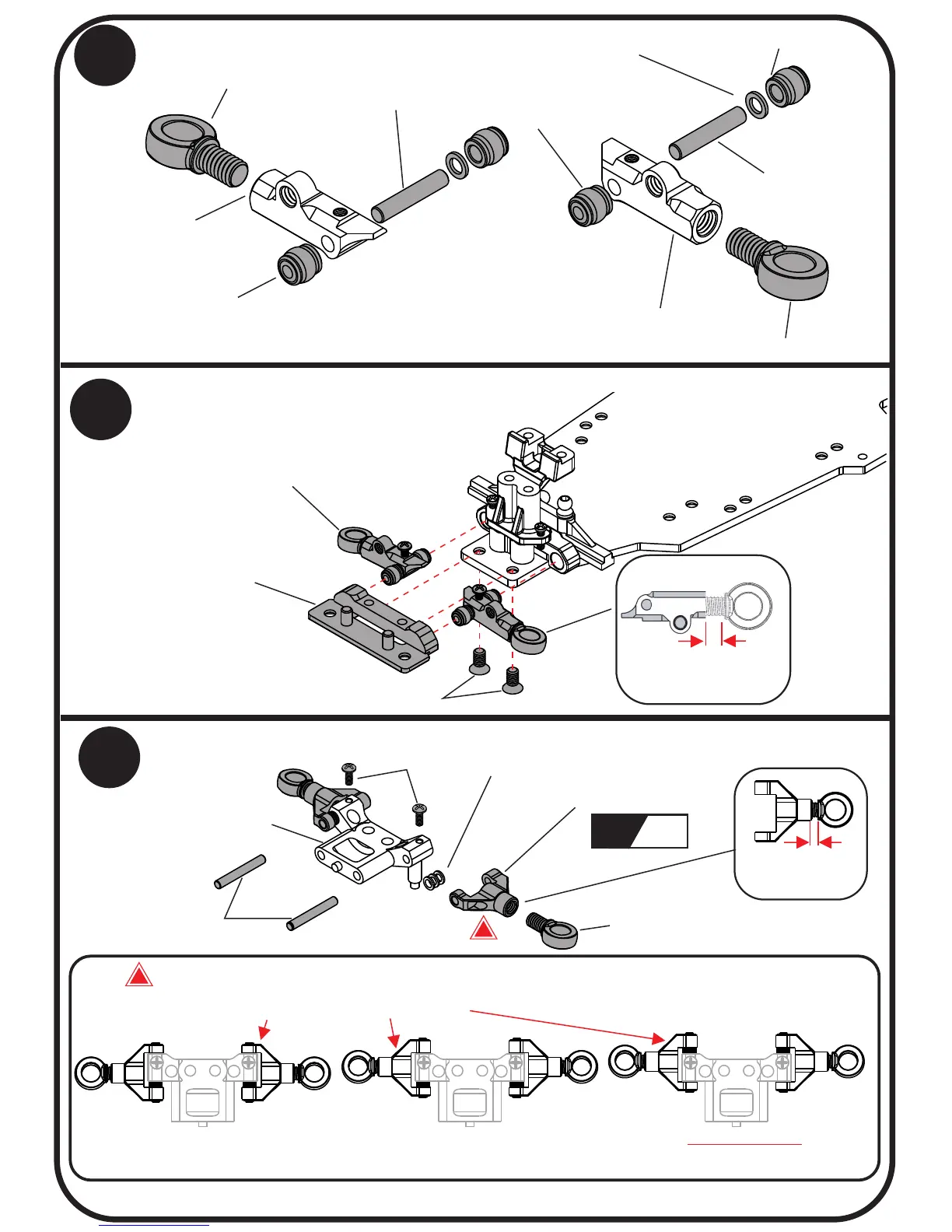

Front Suspension assembly L/R
4
Attaching Front Suspension
P.2
suspension (L)
suspension (R)
Suspension ball
Linkage Ball end
Linkage Ball end
Suspension ball
1.5x8pin
1.5x8pin
1.5x2.4x0.3
shims (plastic)
2x4KM
Front body mount
suspension
assembly(R)
5
Upper suspension assembly
1.0mm
Camber Adjustable arm
Linkage Ball end
Default setup
!
2.5 degree
7 degree
12.5 degree
Default setup
Attention camber direction
Setup the Shims (plastic) position to setup caster gain
!
Default setup
M1.2x3
L R
1.5x10 pin
Upper Suspension mount
1.5x2.4x0.3
shims (plastic)
2.0mm
Default setup
