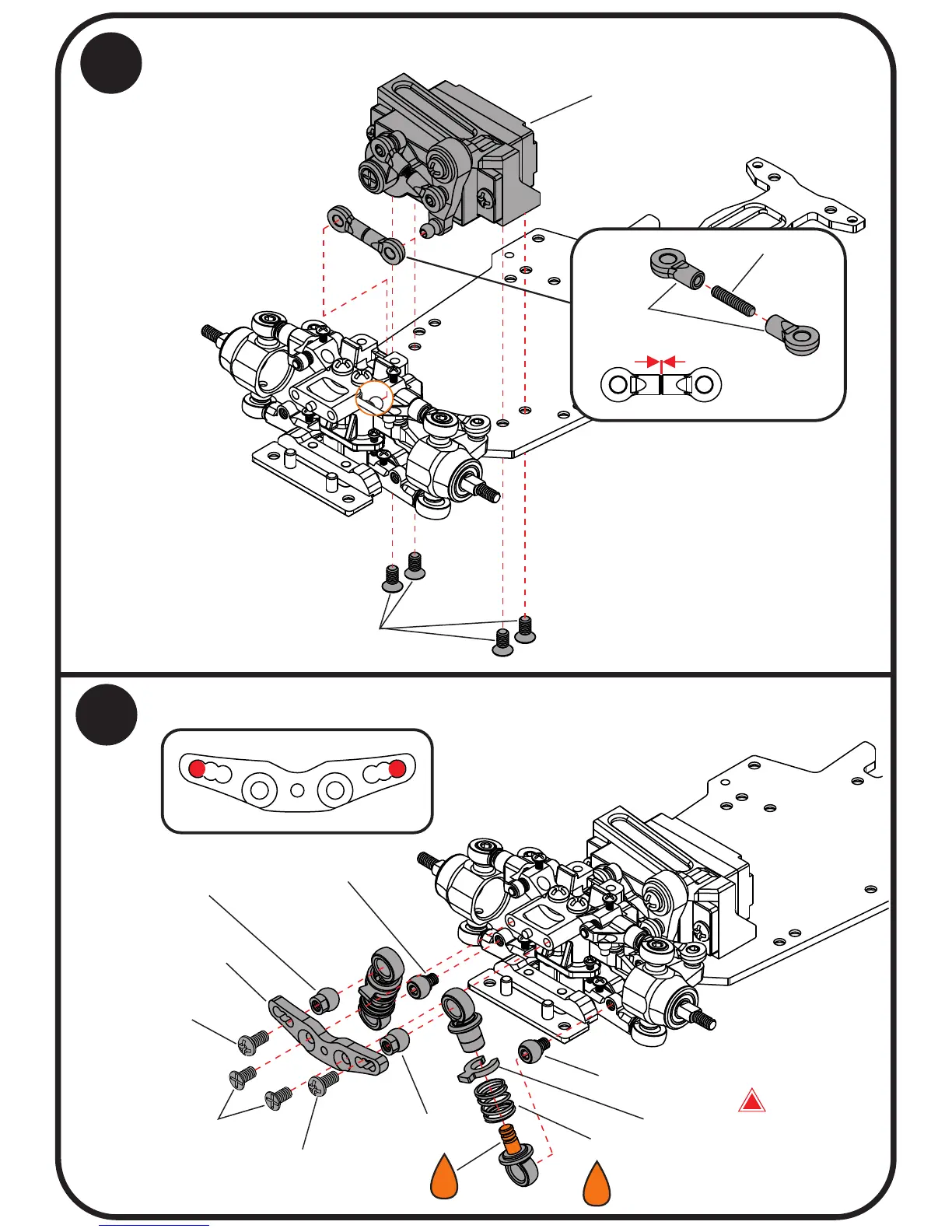

Atomic DRZ - Servo and Front Shock Tower Installation; 11. Attaching servo assembly; 12. Attaching Front shocks tower

P.5
11
Attaching servo assembly
12
Attaching Front shocks tower
2x4KM
0mm
2.5mm
Ball end
M1.4X7
set screw
servo assembly
oil
We recommend to apply #25000
Damper Grease to the shocks.
oil
Default setup
2x4KM
M2x4PM
M2x4PM
Front shocks tower
Linkage Ball
(4mm)
Linkage Ball
(4mm)
Shocks
Linkage Ball
(4mm)
Shocks
Linkage Ball
(4mm)
Sping
(Short)
Default setup
Shock Alignment Clip 1mm
!
