Atomic DRZ - Steering Linkage and Servo Setup; 8. Attaching steering linkage; 9. servo assembly; 10. Attaching servo horn & linkage

P.4

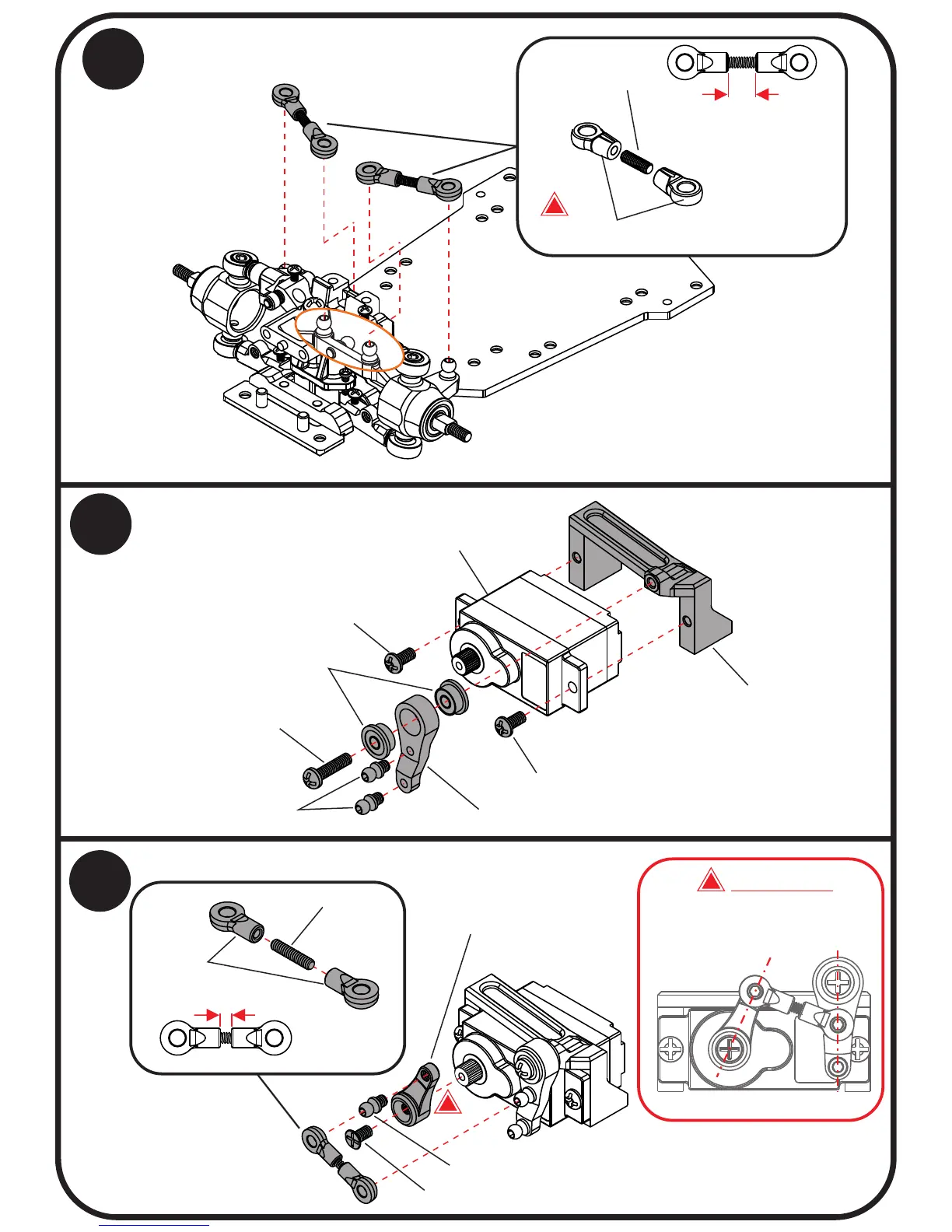

8
Attaching steering linkage
servo assembly
9
Attaching servo horn & linkage
10
0.5 mm
Default setup
3.5mm Ball end
M2X6
set screw
servo
M2x4
M2x8
M2x4
servo mount
Linkage Ball 2.5mm
2x5x2.5
Bearing
Steering Bell Crank
Caution:
!
!
Attach as shown with
servo in neutral point
1.4mm
Default setup
2.5mm
Ball end
M1.4X7
set screw
Linkage Ball 2.5mm
2x4KB (self-tapping thread screw)
Servo horn
!
