Atomic DRZ - Gear Differential Assembly; 16. Gear diff assembly; 17. Attaching Gear box cover

P.7
16
17

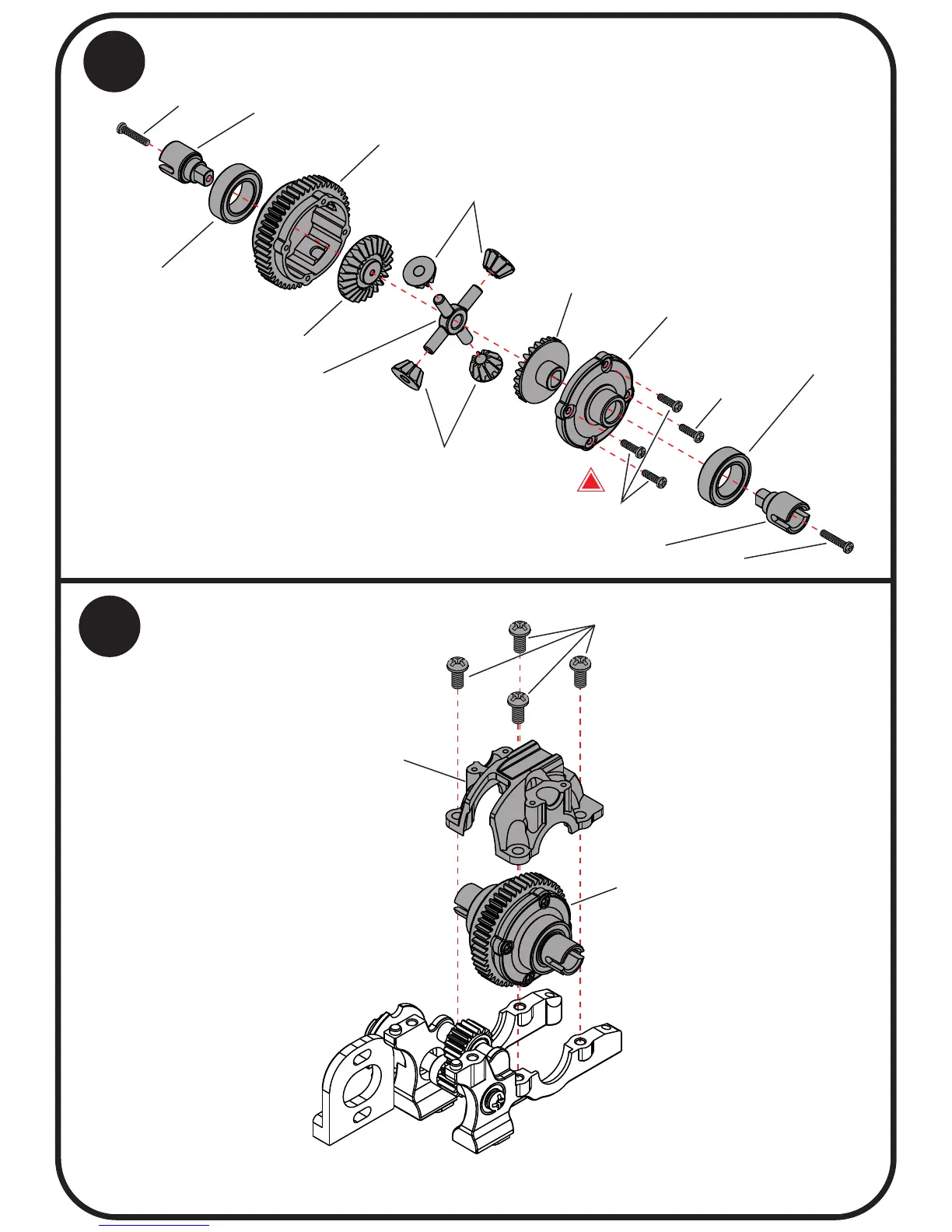

Gear diff assembly
M1.2x6
M1.2x6
M1.2x4
M1.2x4
6x10x3
Bearing
6x10x3
Bearing
Gear diff joint
Bevel Gear
Bevel Gear
Satellite Gear
Gear axial
48T Gear Diff Case
Gear Diff Cover
Attaching Gear box cover
M2x4
Gear box cover
Gear diff
!
Don’t over tight the screw,
make sure the differential is
smooth, especially when the
gears are new. Gears need
few pack battery run to break-in.
