IMPORTANT NOTE:
WHEN TURING TABLE UPRIGHT
DO NOT REST TABLE ON THE SIDE OF
LEGS AS THIS COULD DAMAGE THEM.
STEP:5
With the help of at least four other adults, carefully lift and rotate table into upright position.

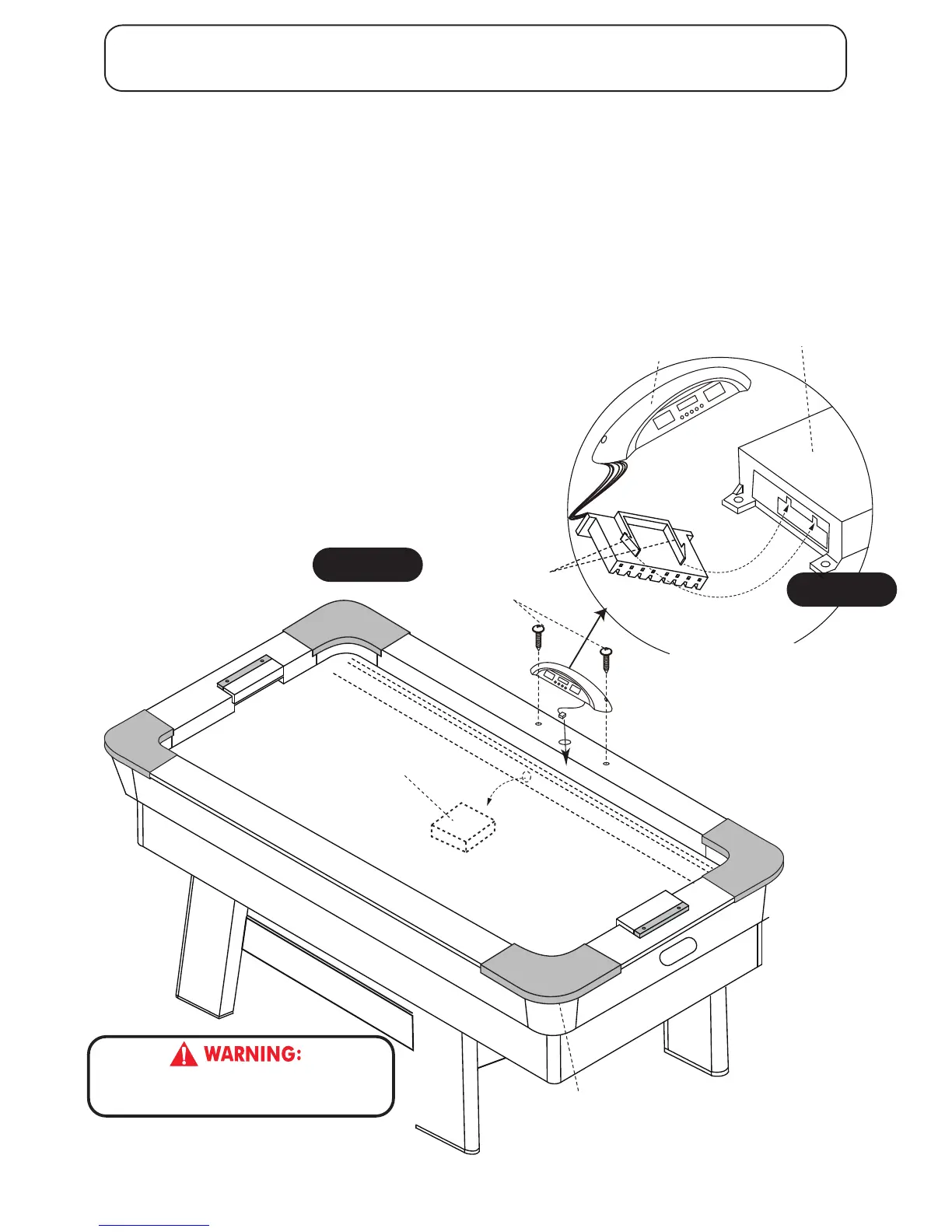

First,feed the Scorer Console (P12) plug down through the hole on one side of the long top
rail as shown in FIGURE 6.
Next, connect the Scorer Console plug to Junction Box (C3) as shown in DETAIL F.
Next, install Scorer Console (P12) onto long top rail using Philips Round Head Screws (H7)
as shown in FIGURE 6.
Tighten, but do not strip out Screws (H7).
PARTS REQUIRED:
H7 3.5 x 18mm Philips Round Head Screw 2 pcs - P12 Scorer Console1 pc -
H7
P12
Junction Box (
C3)
Junction Box (
C3)
tabs
FIGURE 6
DETAIL F
THIS STEP REQUIRES FOUR OR MORE ADULTS.
VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON
ITS LEGS. BE CAREFUL. THE TABLE IS VERY HEAVY.
9
CONTROL
SENS
SENSOR1
NOTE:Make sure tabs on
plug are turned correctly
for correct installation.
NOTE:Corner caps are attached
only snug. This allows for the
unlikely but possible need to
repair the side track lights .
