MRZ V1.1 Instruction Manual
Version 1.0 (01-FEB-2022)
14
○

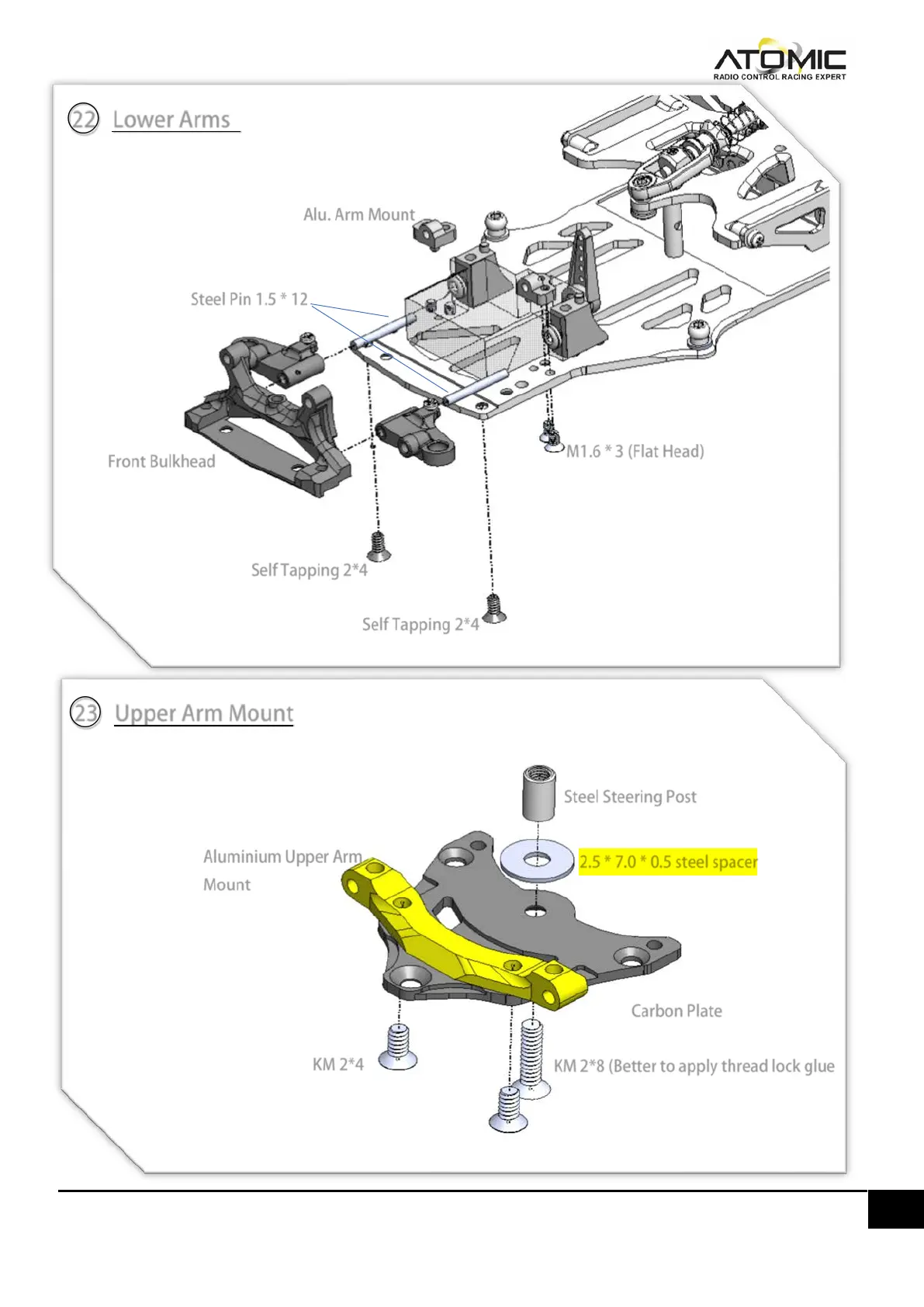

23 Upper Arm Mount
KM 2*4
Steel Steering Post
KM 2*8 (Better to apply thread lock glue
Aluminium Upper Arm
Mount
Carbon Plate
Self Tapping 2*4
Self Tapping 2*4
M1.6 * 3 (Flat Head)
Steel Pin 1.5 * 12
Alu. Arm Mount
Front Bulkhead
○
22 Lower Arms
2.5 * 7.0 * 0.5 steel spacer
