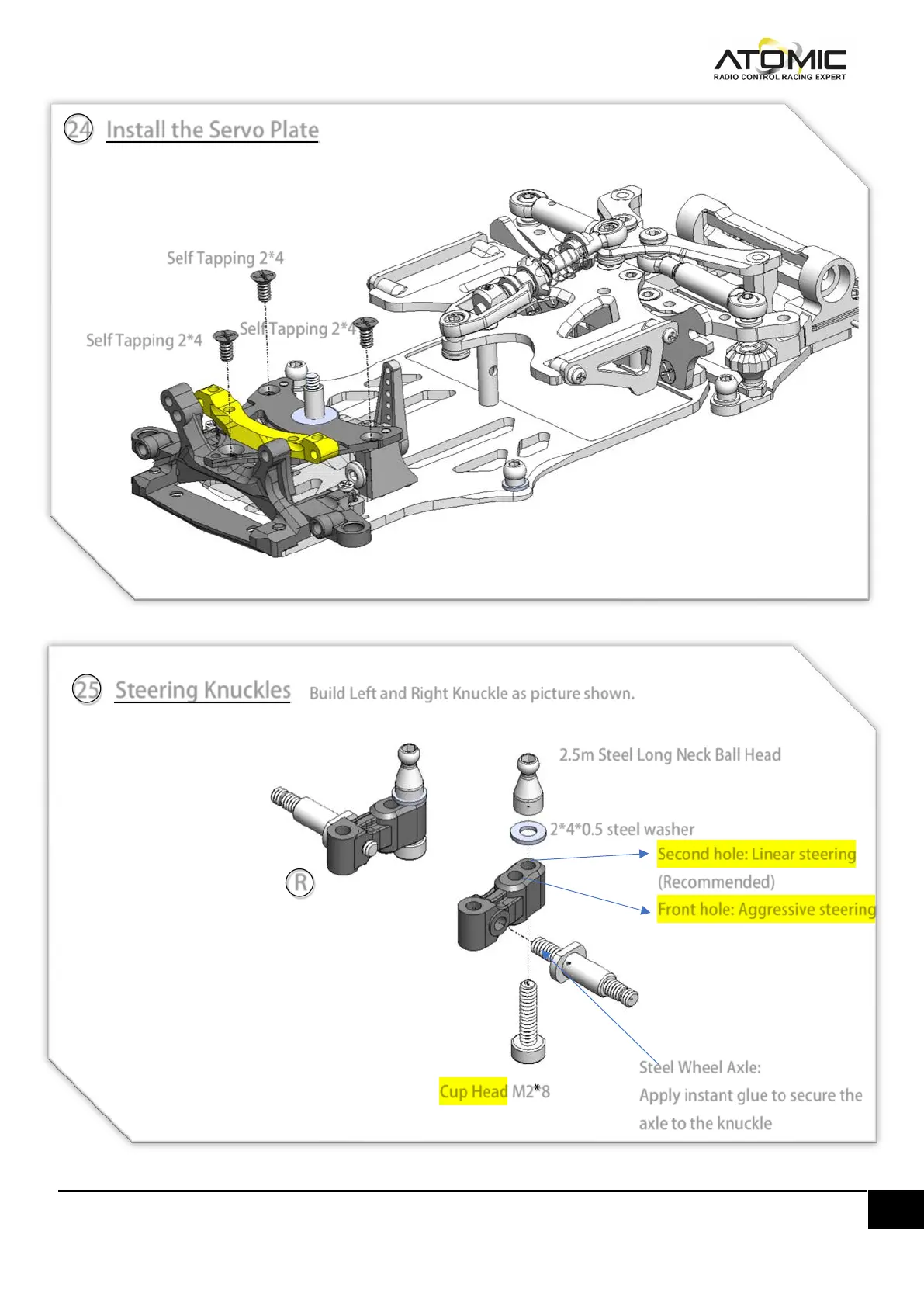

24 Install the Servo Plate
○
25 Steering Knuckles
Build Left and Right Knuckle as picture shown.
Cup Head M2*8
Steel Wheel Axle:
Apply instant glue to secure the
axle to the knuckle
2.5m Steel Long Neck Ball Head
○
R
○
L
Second hole: Linear steering
(Recommended)
Front hole: Aggressive steering
Self Tapping 2*4
Self Tapping 2*4
Self Tapping 2*4
2*4*0.5 steel washer
