Atomic MRZ - Motor Pod Assembly

MRZ V1.1 Instruction Manual
Version 1.0 (01-FEB-2022)
5
Self-Tapping Screw 2*4
Pay attention to the orientation
of the mount. “Wave shape”
is facing Downward.
○

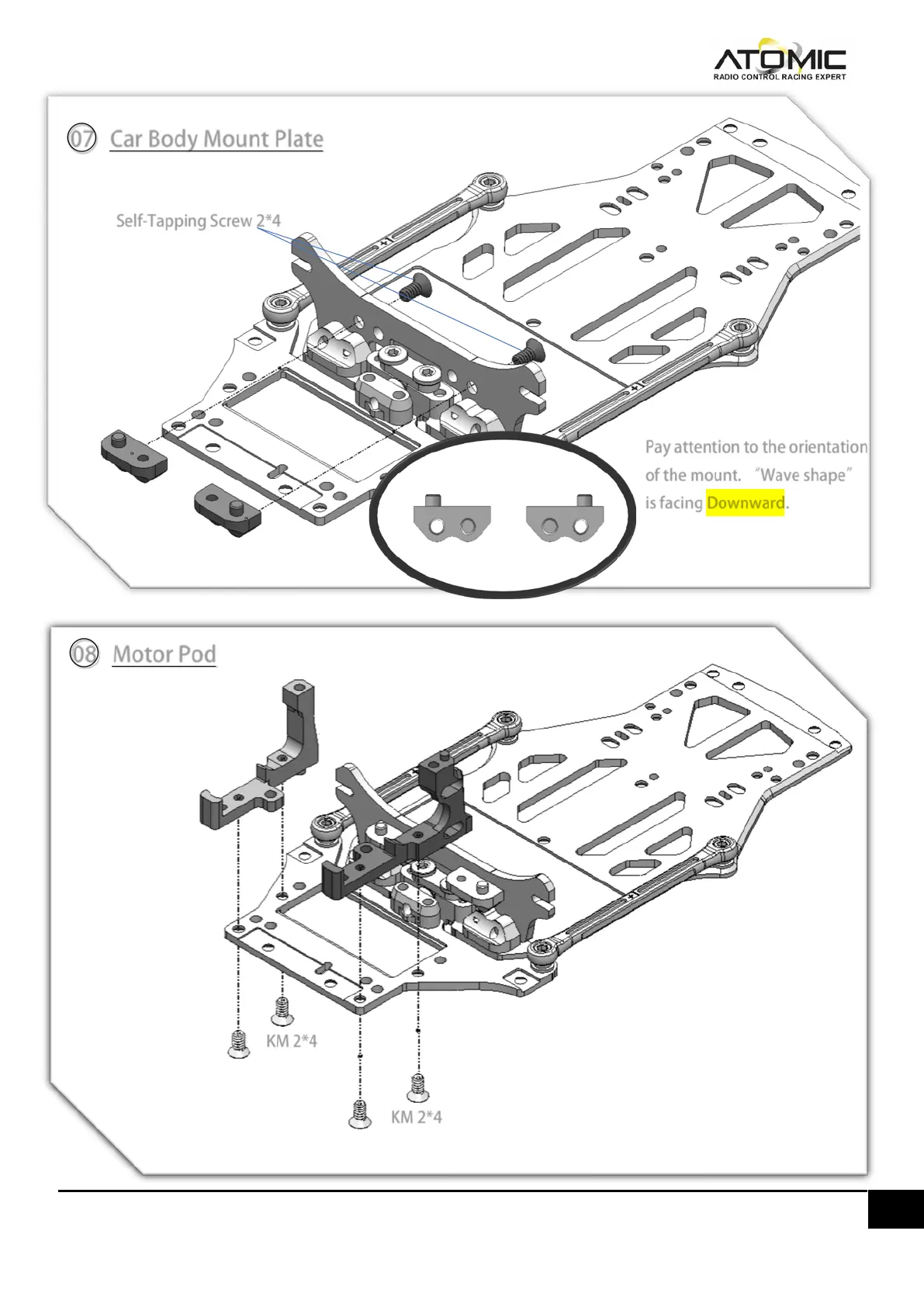

07 Car Body Mount Plate
KM 2*4
○
08 Motor Pod
KM 2*4
