Atomic MRZ - Ride Height Spacers Installation; Side Spring Trays Installation

MRZ V1.1 Instruction Manual
Version 1.0 (01-FEB-2022)
6
○

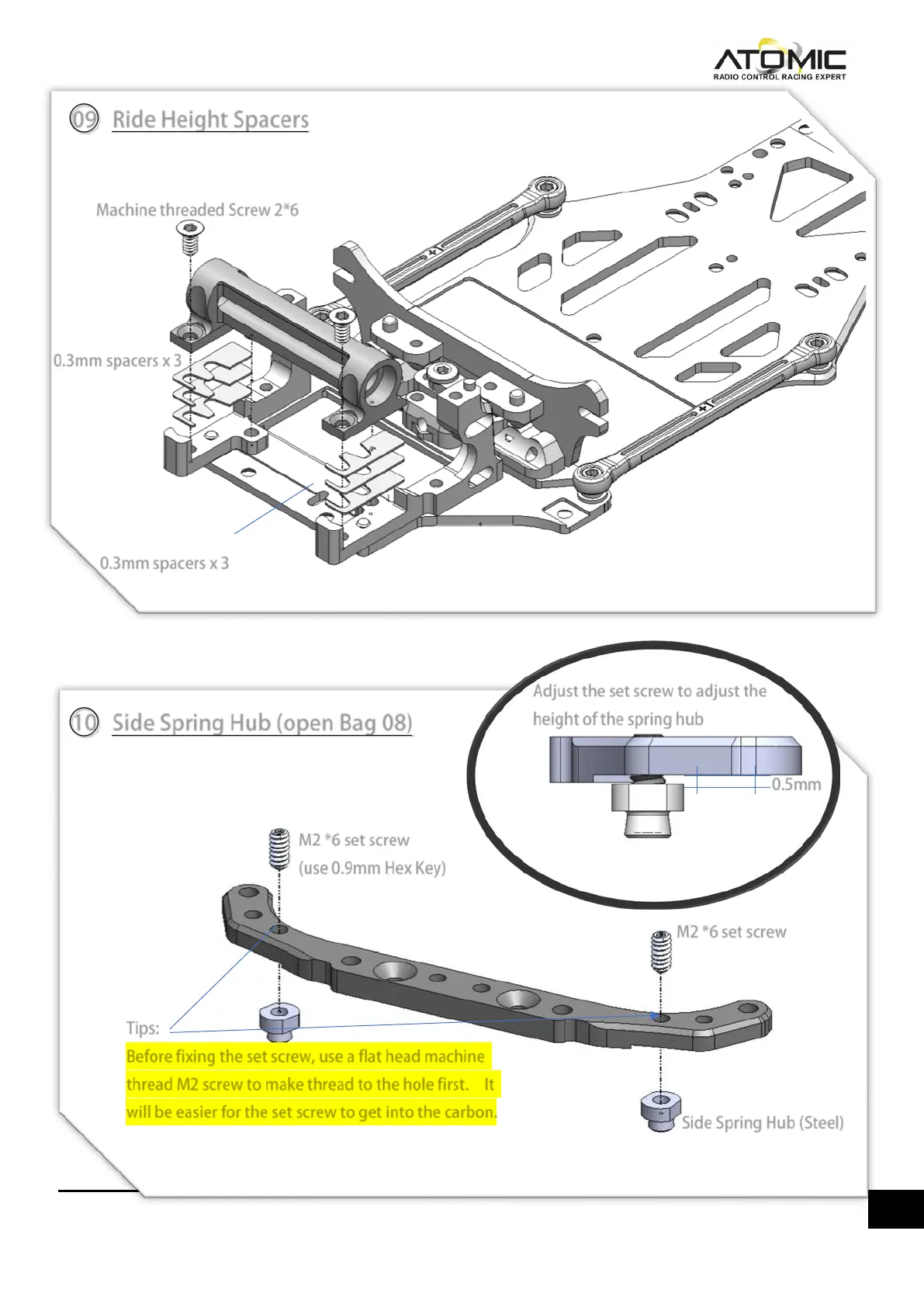

09 Ride Height Spacers
Machine threaded Screw 2*6
0.3mm spacers x 3
0.3mm spacers x 3
○
10 Side Spring Hub (open Bag 08)
M2 *6 set screw
(use 0.9mm Hex Key)
M2 *6 set screw
Side Spring Hub (Steel)
Tips:
Before fixing the set screw, use a flat head machine
thread M2 screw to make thread to the hole first. It
will be easier for the set screw to get into the carbon.
0.5mm
Adjust the set screw to adjust the
height of the spring hub
