Atomic MRZ - Servo Installation; Upper Arm Mount Installation

MRZ Instruction Manual
Version 1.1 (25-01-2020)
13
○

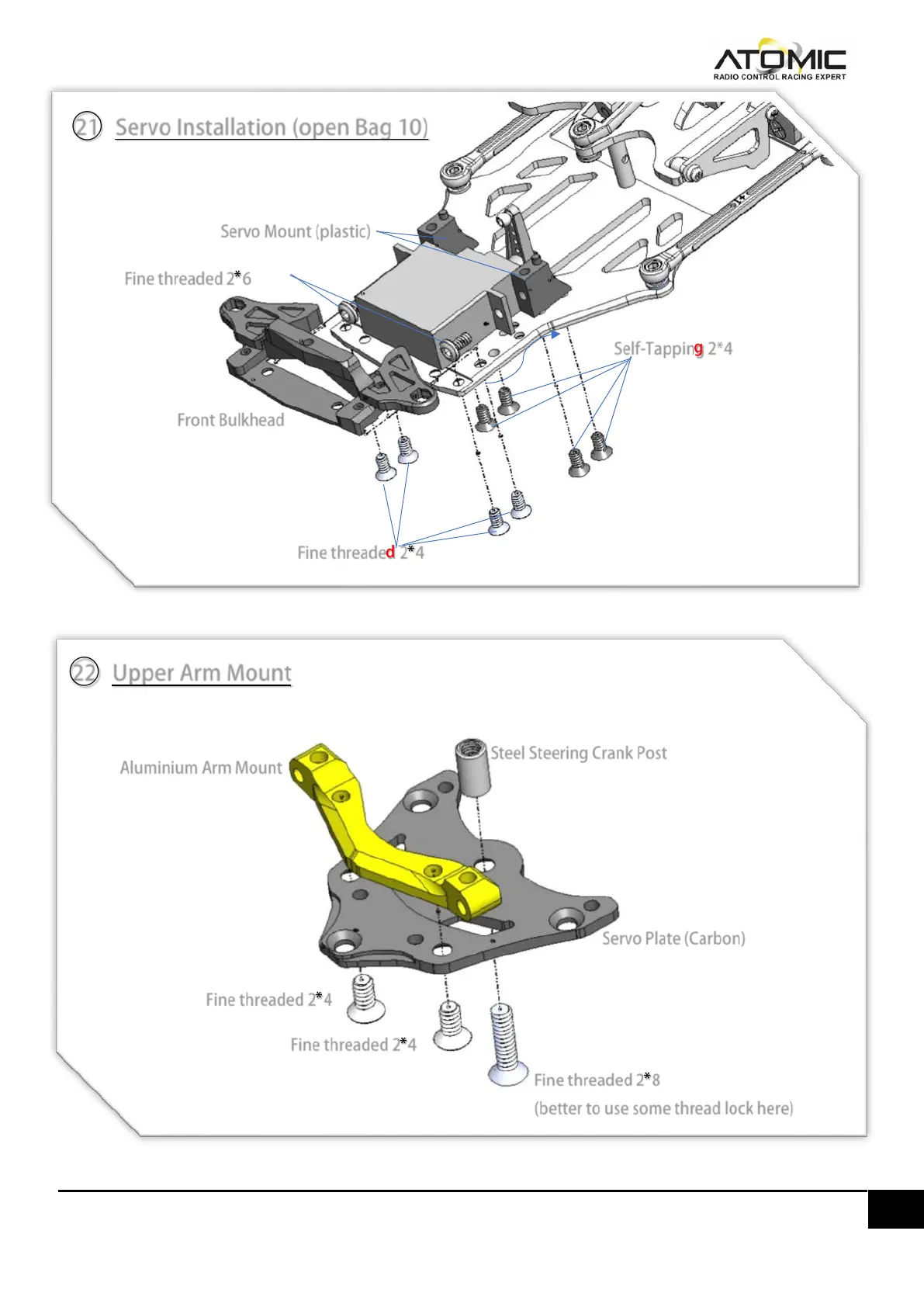

21 Servo Installation (open Bag 10)
Fine threaded 2*4
Self-Tapping 2*4
Fine threaded 2*6
Front Bulkhead
Servo Mount (plastic)
○
22 Upper Arm Mount
Steel Steering Crank Post
Fine threaded 2*4
Fine threaded 2*4
Fine threaded 2*8
(better to use some thread lock here)
Servo Plate (Carbon)
Aluminium Arm Mount
