Atomic MRZ - Center Shock Damper Installation; Servo Horn Attachment

MRZ Instruction Manual
Version 1.1 (25-01-2020)
12
○

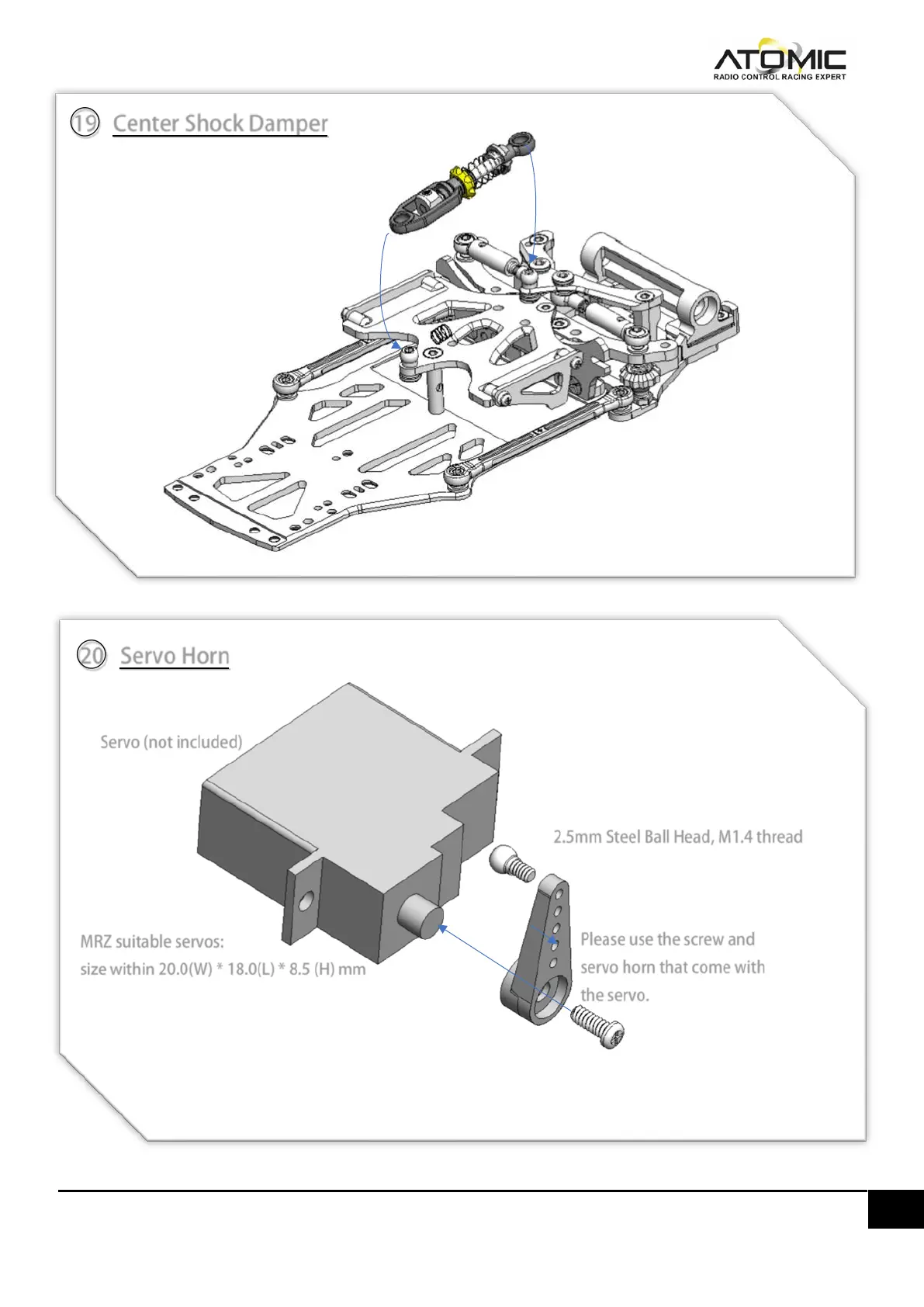

19 Center Shock Damper
○
20 Servo Horn
MRZ suitable servos:
size within 20.0(W) * 18.0(L) * 8.5 (H) mm
Servo (not included)
Please use the screw and
servo horn that come with
the servo.
2.5mm Steel Ball Head, M1.4 thread
** The Second Top Hole is recommended.
