Atomic MRZ - Center Shock Damper Assembly

MRZ Instruction Manual
Version 1.1 (25-01-2020)
11
○

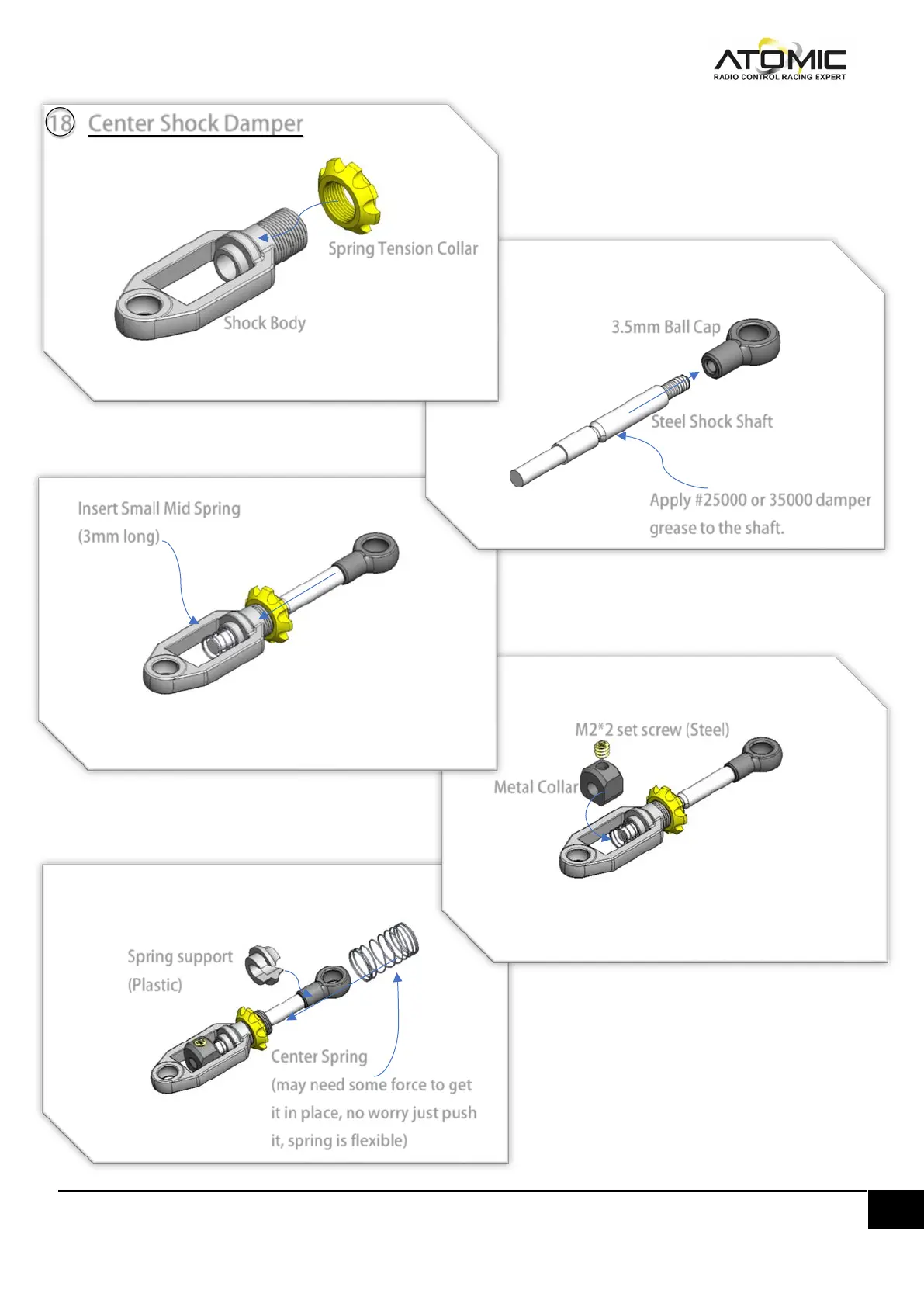

18 Center Shock Damper
Spring Tension Collar
Shock Body
3.5mm Ball Cap
Steel Shock Shaft
Apply #25000 or 35000 damper
grease to the shaft.
Insert Small Mid Spring
(3mm long)
Metal Collar
M2*2 set screw (Steel)
Center Spring
(may need some force to get
it in place, no worry just push
it, spring is flexible)
Spring support
(Plastic)
