Atomic MRZ - Lateral Shock Dampers Assembly

MRZ Instruction Manual
Version 1.1 (25-01-2020)
10
○

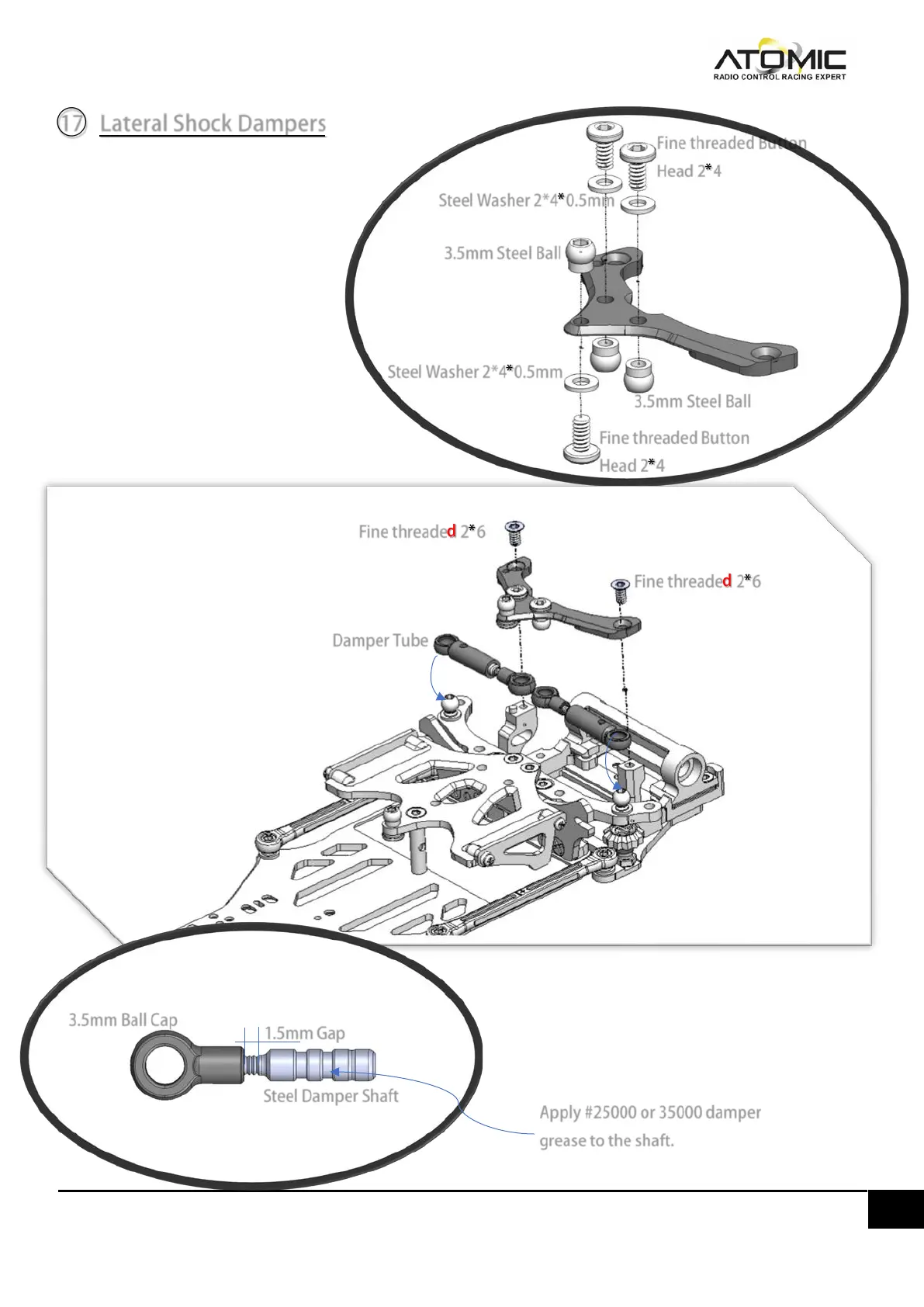

17 Lateral Shock Dampers
Fine threaded Button
Head 2*4
Steel Washer 2*4*0.5mm
3.5mm Steel Ball
3.5mm Steel Ball
Fine threaded 2*6
Fine threaded 2*6
3.5mm Ball Cap
Steel Damper Shaft
1.5mm Gap
Damper Tube
Apply #25000 or 35000 damper
grease to the shaft.
Steel Washer 2*4*0.5mm
Fine threaded Button
Head 2*4
