Atomic MRZ - Battery Mount Door Installation; Battery Mount Installation

MRZ Instruction Manual
Version 1.1 (25-01-2020)
9
○

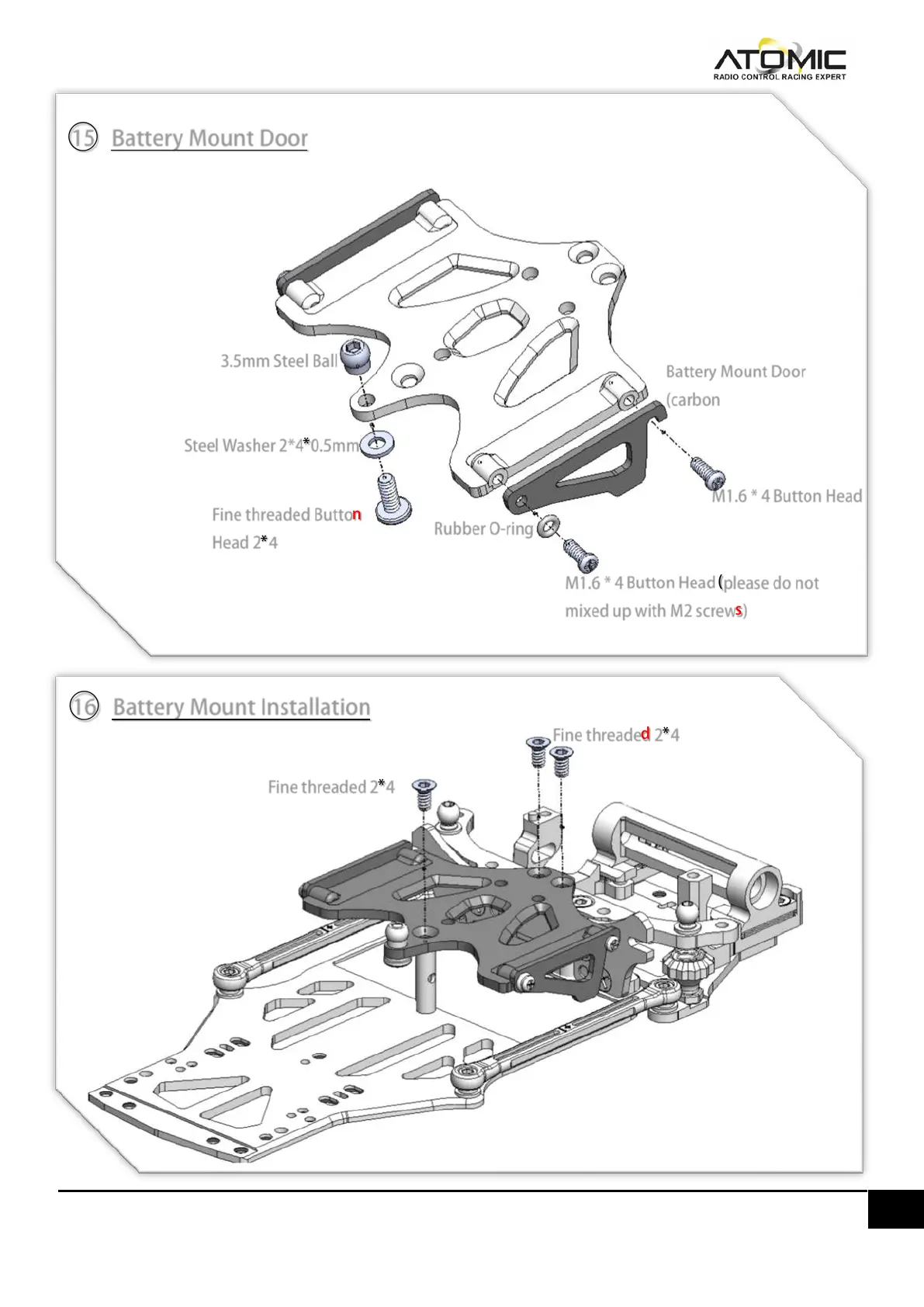

15 Battery Mount Door
M1.6 * 4 Button Head
M1.6 * 4 Button Head (please do not
mixed up with M2 screws)
Rubber O-ring
(3x1.5x0.75)
Battery Mount Door
(carbon
Fine threaded Button
Head 2*4
Steel Washer 2*4*0.5mm
3.5mm Steel Ball
○
16 Battery Mount Installation
Fine threaded 2*4
Fine threaded 2*4
