Atomic MRZ - Steering Knuckles Assembly

MRZ Instruction Manual
Version 1.1 (25-01-2020)
16
○

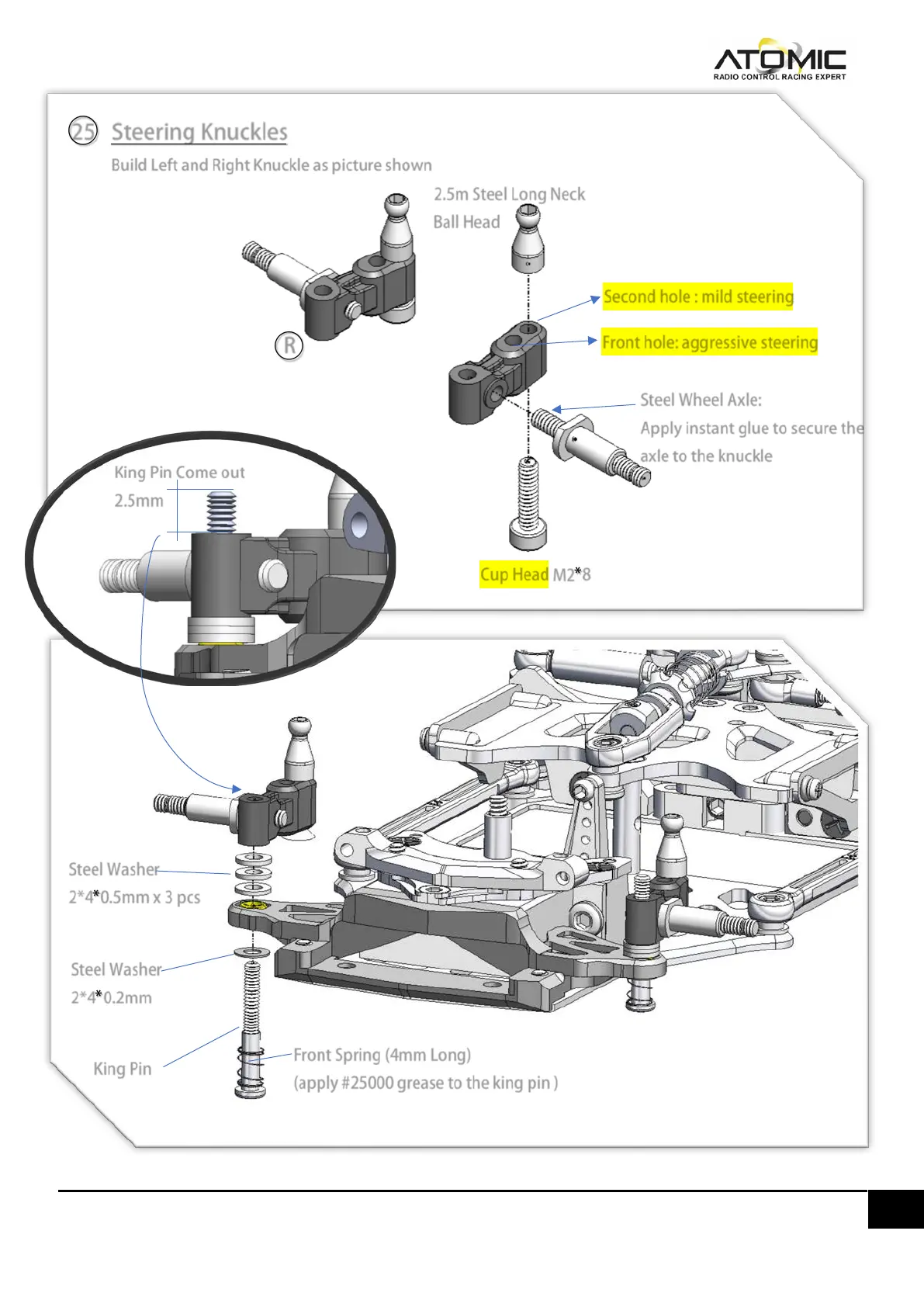

25 Steering Knuckles
Build Left and Right Knuckle as picture shown
Cup Head M2*8
Steel Wheel Axle:
Apply instant glue to secure the
axle to the knuckle
2.5m Steel Long Neck
Ball Head
○
R
○
L
Steel Washer
2*4*0.2mm
Steel Washer
2*4*0.5mm x 3 pcs
Front Spring (4mm Long)
(apply #25000 grease to the king pin )
King Pin
King Pin Come out
2.5mm
Second hole : mild steering
Front hole: aggressive steering
