Atomic MRZ - Upper Arms Assembly

MRZ Instruction Manual
Version 1.1 (25-01-2020)
17
○

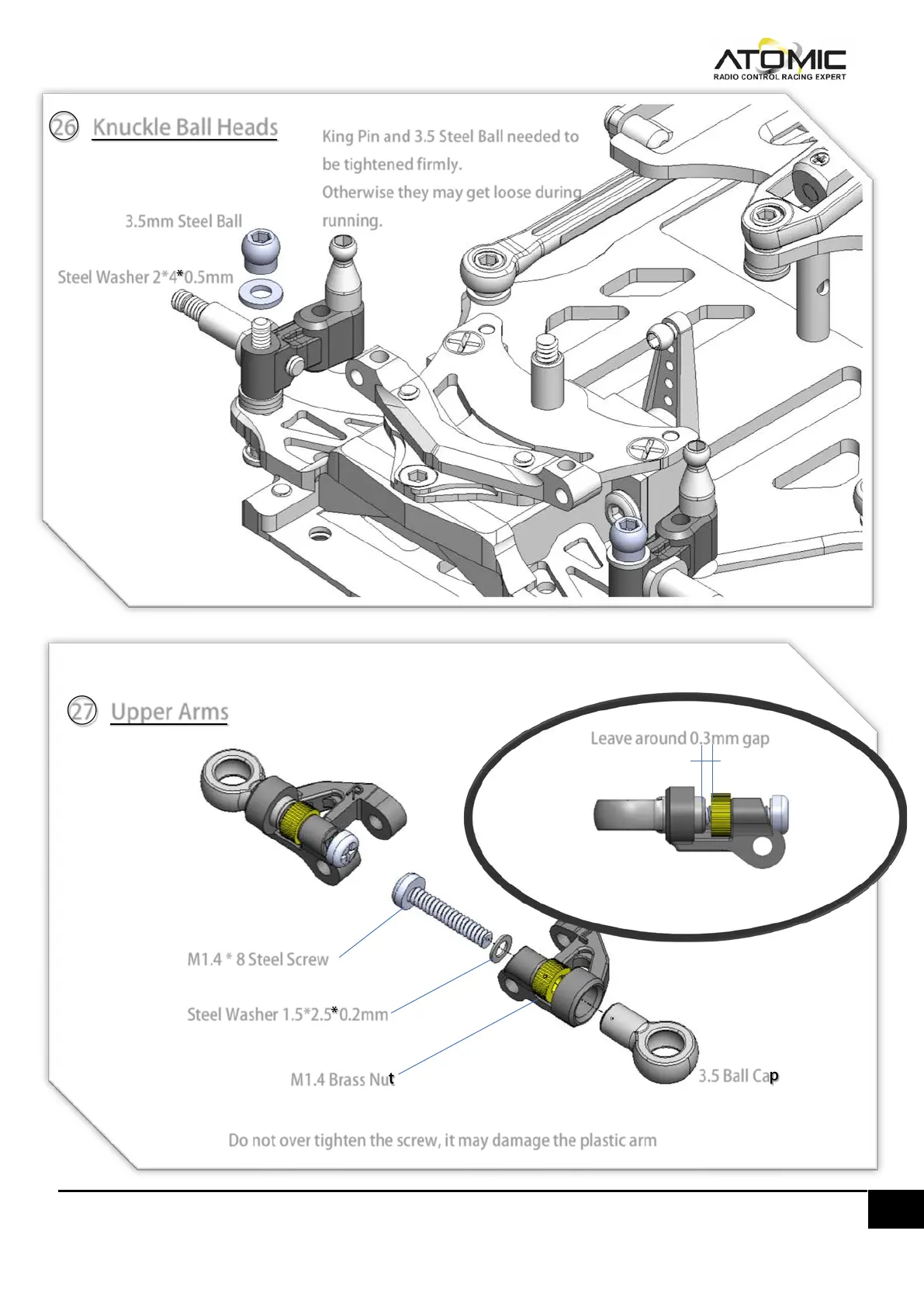

26 Knuckle Ball Heads
Steel Washer 2*4*0.5mm
3.5mm Steel Ball
King Pin and 3.5 Steel Ball needed to
be tightened firmly.
Otherwise they may get loose during
running.
○
27 Upper Arms
Steel Washer 1.5*2.5*0.2mm
M1.4 * 8 Steel Screw
M1.4 Brass Nut
Leave around 0.3mm gap
Do not over tighten the screw, it may damage the plastic arm
3.5 Ball Cap
