Atomic MRZ - Upper Arms Attachment; Steering Crank Assembly

MRZ Instruction Manual
Version 1.1 (25-01-2020)
18
`
○

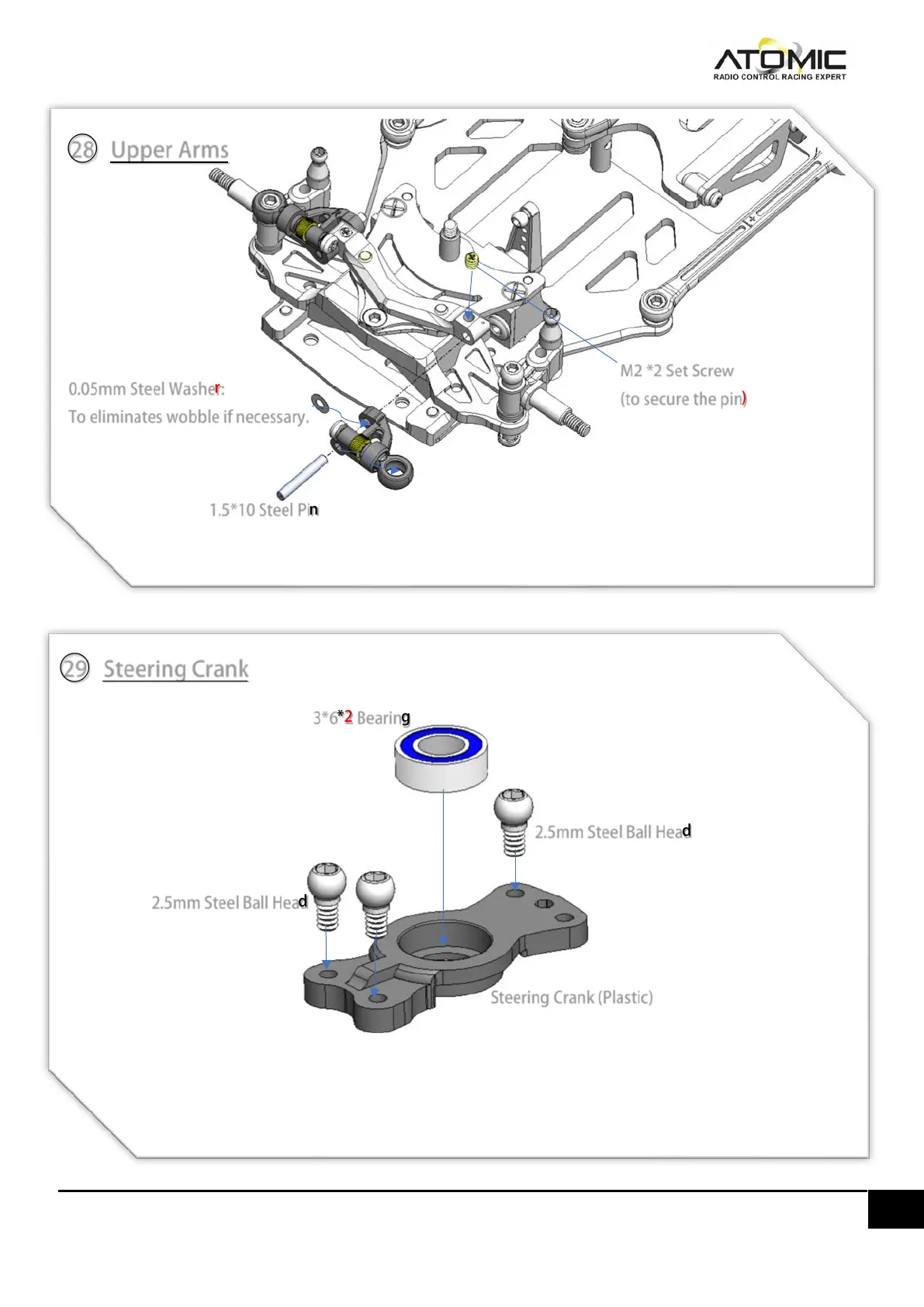

28 Upper Arms
1.5*10 Steel Pin
0.05mm Steel Washer:
To eliminates wobble if necessary.
M2 *2 Set Screw
(to secure the pin)
○
29 Steering Crank
2.5mm Steel Ball Head
2.5mm Steel Ball Head
3*6*2 Bearing
Steering Crank (Plastic)
