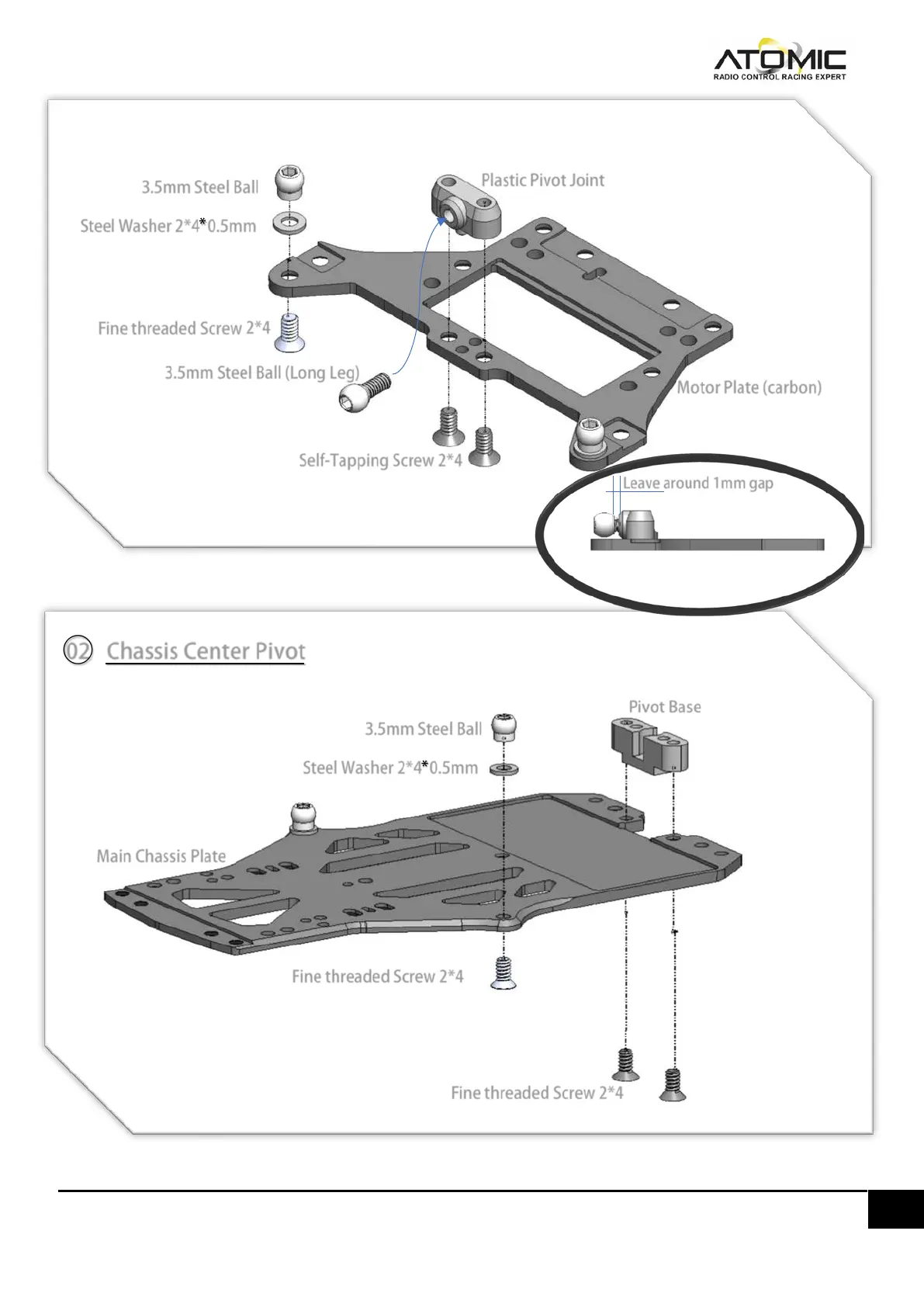

Atomic MRZ - Chassis Center Pivot Assembly

MRZ Instruction Manual
Version 1.1 (25-01-2020)
2
Fine threaded Screw 2*4
Self-Tapping Screw 2*4
Steel Washer 2*4*0.5mm
3.5mm Steel Ball
3.5mm Steel Ball (Long Leg)
Motor Plate (carbon)
Plastic Pivot Joint
Leave around 1mm gap
○
02 Chassis Center Pivot
Steel Washer 2*4*0.5mm
3.5mm Steel Ball
Fine threaded Screw 2*4
Main Chassis Plate
Pivot Base
Fine threaded Screw 2*4
